Sku: D313AX
Tipo de Produto:
EOL
Fabricante:
AVerMedia
D313AX Development System

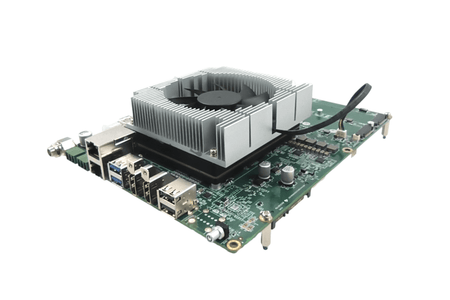

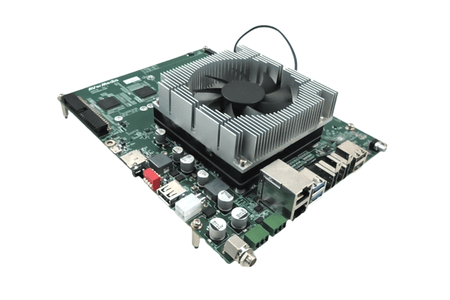

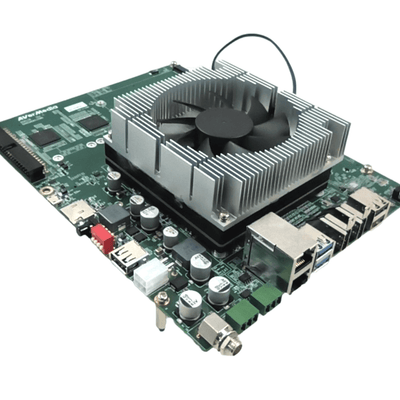

AVerMedia D313AX Developement System (AGX Xavier 32G)
- Equipped with the NVIDIA Jetson AGX Xavier™ 32GB module and FAN
- 2 x M.2 Key M 2280 or 3x mPCIe alternatively
- 1 x M.2 Key E 2230 for Wi-Fi module
- 1 x M.2 Key M 2280 for NVMe
- 2 x GbE RJ45, 2x USB 3.0, 2x 4Kp60 HDMI output
- 1 x CAN bus with transceiver
- 40 pins Expansion Header
- Wide input voltage: 12~54V DC Input
- Easy to use with expansion I/O on one side.
- Operating temperature: -20°C ~ 85°C
- Dimension: W: 170mm x L: 220mm
Vista Rápida
Especificações
Downloads
Vista Rápida
AVerMedia’s D313AX development system is ideal for AI-centric applications such as smart retail, smart surveillance, and much more. This dev system includes a variety of IO ports to support a wide range of sensors for your current project and to future-proof any ideas, you may have.
This dev system also supports the NVIDIA JetPack™ and DeepStream SDKs, as well as CUDA®, cuDNN, and TensorRT™ software libraries. These tools allow a speedy deployment.
Especificações
| Model | D313AX |
|---|---|
| Type | Development System |
| NVIDIA GPU SoC Module Compatibility | NVIDIA® Jetson AGX Xavier™ 32GB module |
Networking |
2 x GbE RJ-45 1 x M.2 Key E 2230 for Wi-Fi module (PCIe Gen4x 1) |
| Display Output | 2x HDMI output 2.0, maximum resolution: 3840 x 2160 at 60Hz |
Temperature* |
Operating temperature -20°C~85°C Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing |
| USB |
2x USB 3.0 Type-A 3x USB 3.0 Type-A 1x USB 2.0 Micro-B for RNDIS |
| Storage |
32GB eMMC 5.1 1x micro-SD card slot 1 x M.2 Key M 2280 for NVMe (PCIe Gen4x 4) 1 x SATA (Optional) |
| RS-485 | 1 x RS-485 (3-pin Eurostyle terminal block) |
| CAN bus | 1 x CAN bus with transceiver (3-pin Eurostyle terminal block) |
| Expansion Header | 40 pins: 1x UART, 2x 12C, 1x CAN (W/O transceiver), 5x GPIO |
| DIP Switch Expansion |
1. Auto power on enable/Disable (External) 2. FAN PWM on enable/Disable (External) 3. RS485 Terminal ON/OFF (External) 4. CAN Bus Terminal ON/OFF (External) |
Capture card support |
2 x M.2 Key M 2280 (PCIe Gen2x 4) or 3x mPCIe Gen2 x1 |
| Input Power |
DCINJACK on board & ATX 4pin 54V/2.78A, 12~54V is recommended |
| Buttons | Power and Recovery (Power button with green LED) |
| RTC Battery | Support RTC battery and Battery Life Monitoring by MCU |
| Chassis Dimension/ Weight |
W: 170mm x L: 220mm x H:54.6mm Weight: 770g |
| Certifications | CE, FCC, KC |
Package |
1 x Carrier board 1 x NVIDIA Jetson AGX Xavier 32GB module 1 x Fan 1 x Quick Guide 2 x Pluggable terminal block Screws |
Expandability
| Model | Host Interface |
Video Interface |
Max Input Resolution |
|---|---|---|---|
CN311-H |
M.2 M key 2280 |
1x HDMI |
4Kp30 in-out |
CN312S |
M.2 M key 2280 |
2x SDI |
2Kp60 in - 1080p out |
CN312M |
M.2 M key 2280 |
1x SDI; 1x HDMI |
2Kp60 in (SDI) 1920 x 1200 p60 in (HDMI) 1080 p60 out |
* Temperature is still under testing. Please contact your local sales for more information.
** All specifications are subject to change without prior notice.
Downloads
