Sku: EMX-H110KP-A1R
Tipo de Produto:
EOL
Fabricante:
Avalue

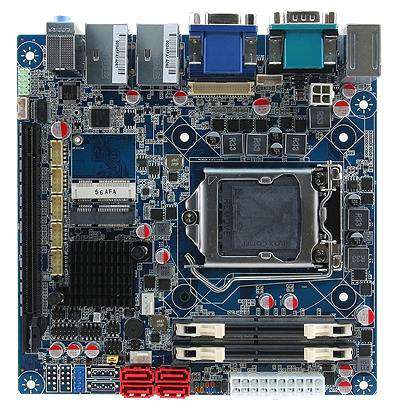

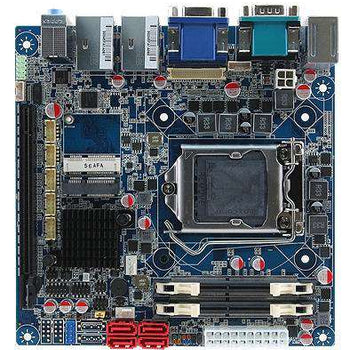

EMX-H110KP
Intel® 6/7th Generation Core™ Processor Mini ITX Motherboard with Intel® H110 Chipset
Caraterísticas
Especificações
Downloads
Caraterísticas
- Intel® 7th Generation Core™ Processor (Max. TDP at 95W)
- Intel® H110 Chipset
- 2 x 260-pin DDR4 2133MHz SO-DIMM supports up to 32GB
- VGA, HDMI, DP, Dual channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS)
- 3 x SATA III, 1 x SATA III or 1 x mSATA III switch by BIOS
- 4 x USB 3.0, 2 x USB 2.0 at I/O
- 5 x RS232, 1 x RS232/422/485
- Line-in, Mic-in, Line-out
- Onboard Infineon SLB9665 support TPM 2.0 (Optional)
- ATX Power
Especificações
| System | |
| Processor | Intel® LGA1151 Socket Supports 6/7th Generation Core™ i7/ i5/ i3 & Pentium®/Celeron® Processors (Max. TDP at 95W) |
| System Chipset | Intel® H110 Chipset |
| System Memory | 2 x 260-pin DDR4 2133MHz SO-DIMM supports up to 32GB |
| I/O Chip | Nuvoton® NCT6106D |
| BIOS | AMI uEFI BIOS, 128Mbit SPI Flash ROM |
| Watchdog Timer | H/W Reset, 5~255 seconds/5~255 minutes |
| H/W Status Monitor | CPU temperature monitoring Voltages monitoring CPU fan speed control |
| TPM | Infineon SLB9665 support TPM 2.0 (Optional) |
| Board | Mini ITX |
| Expansion | |
| Expansion | 1 x PCI-e x 16 1 x Full Size Mini PCI-e Supports mSATA (by auto switch IC) 1 x Half Size Mini PCI-e |
| I/O | |
| USB | 4 x USB 2.0 4 x USB 3.0 |
| SATA | 3 x SATA III, 1 x SATA III or 1 x mSATA III switch by BIOS selection |
| COM Port | 5 x RS232 1 x RS232/422/485 |
| DIO | 1 x 8-bit GPIO |
| MIO | 1 x PS/2 Keyboard or 1 x PS/2 Mouse |
| Other | Infineon SLB9665 support TPM 2.0 (Optional) |
| Display | |
| Chipset | Intel® 7th Generation CPU integrated VGA + HDMI + DP |
| Resolution | VGA: 2048 x 1536 @ 50Hz HDMI: 4096 x 2160 @ 24Hz DP: 4096 x 2304 @ 60Hz |
| LVDS | Dual channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS) |
| Multiple Display | Dual Display |
| Audio | |
| Chipset | Realtek ALC892 HD Audio Decoding Controller |
| Audio Interface | Mic-in, Line-out, Line-in |
| Audio Amplifier | 2 x 6W Amplifier |
| Ethernet | |
| Chipset | 1 x Intel® I219LM Gigabit Ethernet PHY 1 x Intel® I211AT PCI-e Gigabit Ethernet |
| LAN Port | 2 x RJ-45 |
| Mechanical & Environmental | |
| Power Requirement | +12V/+5V/5VSB/+3.3V/-12V |
| ACPI | Single power ATX Support S0, S3, S4, S5 |
| Power Type | AT/ATX |
| Operating Temperature | 0~60°C (32~140°F) |
| Storage Temperature | -40~ 75°C (-40~167°F) |
| Operating Humidity | 0%~90% relative humidity, non-condensing |
| Dimension (L x W) | 6.69" x 6.69" (170mm x 170mm) |
| Weight | 0.40 kg |
| Ordering Information | |
| Ordering Information | EMX-H110KP-A1R Intel® 6/7th Generation CoreTM i7/ i5/ i3 Processor Mini ITX Motherboard with Intel® H110 Chipset |
