Sku: S32272NR-C858
Tipo de Produto: EOL
Fabricante: TYAN

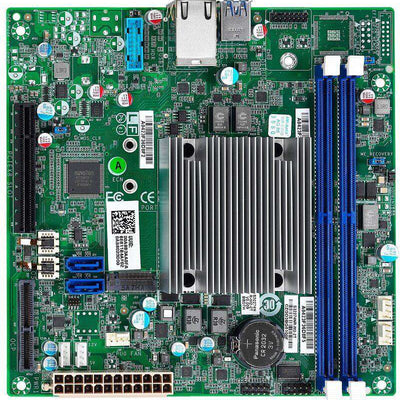

Board Server com o CPU Intel Atom Denverton C3858 12x 2.0Ghz, 2x DIMM com suporte para 16GB, 32GB e 64GB de memória. Dual LAN Gigabit para aplicações de servidor.

  • Single Intel® Atom Denverton CPU C3000 SoC
  • 2x slots DIMM até 32GB/64GB UDIMM/RDIMM ECC DDR4 2400/2133
  • 1x slot PCI-E x8 Gen3 Low Profile (c/ x8 ou x2 link)
  • 1x conector SFI w/M3227L8-X557-2C (-2T-C958 SKU)
  • 1x conector M.2 (2242/2260), 2x SATA HDDs através dos conectores SATA-III 6.0Gb/s (sem RAID)
  • 2x GbE (via Realtek RTL8111H) ou 2x 10GbE (M3227L8-X557-2C TYAN Mezz Card) + 2x GbE (via Realtek RTL8111H) (-2T-C958 SKU)
  • Formato Mini-ITX 6.69" x 6.69" (170 x 170mm)



Datasheet_TYAN_S3227_(S32272NR-C858)



Especificações:

Processor Supported CPU Series (1) Intel Atom Denverton processor C3858 SoC
Thermal Design Power (TDP) wattage 25W
Chipset Super I/O NCT6683D-T
Memory Supported DIMM Qty (2) DIMM slots
DIMM Type / Speed UDIMM/RDIMM ECC DDR4 2400
Capacity Up to 32GB/64GB UDIMM/RDIMM
Memory voltage 1.2V
Expansion Slots PCI-E (1) PCI-E Gen3 x8 slot / *Low-profile supported only
Others: (1) SFI connector
LAN Port Q'ty (2) GbE ports
Controller Realtek RTL8111H
Storage Connector (2) SATA
Controller Intel Atom Denverton processor C3858 SoC CPU
Speed 6.0 Gb/s
RAID Non-support
M.2 connector (1) M.2 connector (2242/2260) by PCI-E interface
Input /Output USB (2) USB3.0 ports (via cable) / (2) USB3.0 ports (at rear)
COM (1) header
RJ-45 (2) GbE ports
Front Panel (1) 2 x 5 header
SATA (2) SATA-III connectors
Power SSI/ATX 24-pin + 4-pin power connectors
System Monitoring Chipset NCT6683D-T
Fan Total (3) 4-pin headers
Temperature Monitors temperature for CPU & system environment / Monitors temperature for CPU & memory & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Fan fail LED indicator / Over temperature warning indicator
Others Watchdog timer support
BIOS Brand / ROM size AMI / 16MB
Feature ACPI 3.0/ACPI sleeping states S4,S5 / SMBIOS 2.8/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection
Physical Dimension Form Factor mini-ITX
Board Dimension 6.69" x 6.69" (170 x 170mm)
Regulation FCC (DoC) Class B
CE (DoC) Class A
Operating Environment Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Operating System OS supported list Please refer to our AVL support lists.
Package Contains Motherboard (1) S3227 Motherboard
Manual (1) Quick Installation Guide
Installation CD (1) TYAN installation CD
