Sku: UR32-L04EU
Tipo de Produto:
Routers LTE
Fabricante:
Milesigh
UR32-L04EU

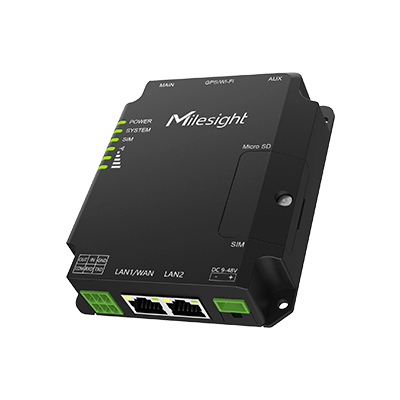

Milesight UR32 4G Industrial Cellular Router
With a brand new look and compact size, UR32 is specially designed to be LOW-COST and HIGHLY-EFFICIENT. The pocket-sized design allows it to easily fit into small cabinets or machines when space is extremely limited.
Equipped with 2 fast Ethernet ports and 1 RS232 interface, UR32 can connect with diverse field assets. With a built-in LTE CAT4 modem, it supports dual SIM backup for robust, reliable cellular communication. Also, its rugged enclosure and wide operating temperature range (-40°C to +70°C) make it perfectly suit most M2M applications in the harsh environment.
- Compact and rugged design
- PoE is optional; Wi-Fi/GPS (alternative)
- Supports Modbus RTU/TCP
- 1 digital input and 1 digital output
- OpenVPN/IPsec/PPTP/L2TP/DMVPN/GRE
Videos
Especificações
Downloads
Videos
Especificações
| Capabilities | CPU | 528 MHz, 32-bit ARM Cortex-A7 | ||||
| Flash | 128 MB | |||||
| Memory | 128 MB DDR3 | |||||
| Built-in | Watchdog | |||||
| GPS | GPS + GLONASS | |||||
| Micro SD | Supports micro SD card up to 128 GB | |||||
| Interfaces | SIM Slots | 2 | ||||
| Ethernet Ports | 2 × 10/100 Mbps | |||||
| Serial Port | 1 x RS232 (optional RS485) | |||||
| DI/DO | 1 × DI + 1 × DO | |||||
| Antenna Connectors |
2 x Cellular Connectors 1 x GPS/Wi-Fi Connectors |
|||||
| Maintenance | Management | Web, CLI, SMS, Watchdog, On-demand Dial Up | ||||
| Multilevel Authority |
Multiple Levels of User Authority | |||||
| Network | Network Protocols | IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIP v1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH | ||||
| AAA |
RADIUS, TACACS+, LDAP, Local Authentication | |||||
| Firewall | Anti-DDoS, SPI, ACL, DMZ, Port Mapping, MAC Binding | |||||
| Wi-Fi (Optional) |
IEEE 802.11b/g/n | |||||
| Serial Port | Transparent (TCP Client/Server, UDP), Modbus Gateway (Modbus RTU to Modbus TCP), Modbus Master |
|||||
| Reliability | VRRP, WAN Fail-over, Dual SIM Backup | |||||
| VPN | OpenVPN, IPsec, PPTP, L2TP, DMVPN, GRE | |||||
| Hardware |
Power Input |
9 ~ 48 VDC | ||||
|
Power Output (Optional) |
2 × 802.3af/at PoE PSE | |||||
|
Ingress Protection |
IP30 | |||||
|
Housing & Weight |
Metal, 271g (0.60 lb) | |||||
|
Dimensions |
108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in) | |||||
|
Mounting |
Desktop, Wall or DIN Rail Mounting | |||||
| Others |
Operating Temperature |
-40°C to +70°C (-40℉ to +158℉) Reduced cellular performance above 60°C | ||||
|
Storage Temperature |
-40°C to +85°C (-40℉ to +185℉) | |||||
|
Relative Humidity |
0% to 95% (non-condensing) at 25°C/77℉ | |||||
|
Certifications |
RoHS, CE, FCC, AT&T (UR32) | |||||
|
Frequency Band |
E | LTE: B1/B3/B5/B7/B8/B20/B38/B40/B41 | 3G: B1/B5/B8 | GSM: B3/B8 | ||
| AF | LTE: B2/B4/B5/B12/B13/B14/B66/B71 | 3G: B2/B4/B5 | / | |||
| AU | LTE: B1/B2/B3/B4/B5/B7/B8/B28/B40 | 3G: B1/B2/B5/B8 | GSM: B2/B3/B5/B8 | |||
