MIR785-W

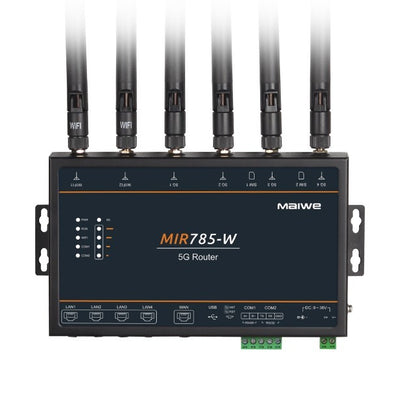

Dual-band Gigabit Wi-Fi6 Industrial 5G Router

  • Support 4 wired LAN ports, 1 wired WAN port, all supporting 10/100/1000Mbps rate
  • Support 2.4GHz and 5.8GHz dual-band Wi-Fi, and both support the new generation of Wi-Fi 6 standard
  • Support OFDMA+MU-MIMO technology, support NSA and SA dual-mode 5G network, backward compatible with 4G, 3G
  • Supports 5G communication module with M.2 interface, which is convenient for customers to replace by themselves
  • Supports transparent data transmission from two serial ports RS485 and RS232 to the network
Caraterísticas

MIR785-W is a dual-band Gigabit WiFi 6 industrial 5G router newly launched by MAIWE. The dual-band concurrent rate is up to 1775Mbps, the wireless rate is faster, the transmission distance is longer, and it supports NSA and SA dual-mode 5G networks. It supports one RS485 and one RS232 interface and 5 Gigabit Ethernet interfaces, which can realize the mutual transparent transmission function between RS485 and RS232, cellular data and Ethernet.It provides a convenient and fast networking solution for user equipment, which is a perfect choice for industrial network.

Features and Benefits

-Support 4 wired LAN ports, 1 wired WAN port, all supporting 10/100/1000Mbps rate;

-Support 2.4GHz and 5.8GHz dual-band Wi-Fi, and both support the new generation of Wi-Fi 6 standard;

-Support OFDMA+MU-MIMO technology, support NSA and SA dual-mode 5G network, backward compatible with 4G, 3G;

-Supports 5G communication module with M.2 interface, which is convenient for customers to replace by themselves;

-Supports transparent data transmission from two serial ports RS485 and RS232 to the network;

-Support the new generation of peanut shell intranet penetration and dynamic domain name resolution DDNS;

-Support multiple VPN virtual private network protocols (PPTP, L2TP, GRE, OpenVPN, IPSec), and support VPN encryption function;

-Adopt openwrt open architecture to support users' secondary development;

-Support python, reserve USB2.0 interface, can connect external USB storage, support edge computing.

Especificações
Product model MIR785-W
Power
Working Voltage DC9-36V
Working Current  878mA@12v
Network Port
LAN 4 x 10/100/1000Mbps self-adaptive Ethernet port, support MDI/MDIX, cross-direct connection automatic flip
WAN 1 x 10/100/1000Mbps self-adaptive Ethernet port, support MDI/MDIX crossover direct connection automatic flip, WAN/LAN switchable
Isolation Protection 1.5KV
Serial Port
Num. 1*RS-232+1*RS-485
Rate 300~230400bps
Antenna
Antenna Num. 4
Interface SMA interface (outer screw inner hole)
SIM
SIM Card Voltage:3V/1.8V;
Supported Num. Support dual card single standby
Wi-Fi
Wireless Standard Wi-Fi6, the 6th generation wireless network technology
2.4GHz 802.11b/g/n/ax
5.8GHz 802.11a/n/ac/ax
Antenna 2
Antenna Interface SMA interface (outer screw inner hole)
Wi-Fi Rate 2.4GHz:574Mbps, 5GHz:1201Mbps
Wireless
Network Standard Mobile/Unicom/Telecom 5G, 4G and 3G
Working Frequency 5G NR NSA :n41/n77/n78/n79
5G NR SA*:n1/n2/n3/n5/n7/n8/ n12/n20/
n25/n28/n38/n40/n41/n48/n66/
n71/n77/n78/n79
LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/
B14/B17/B18/B19/B20/B25/B26/
B28/B29/B30/B32/B66/B71
LTE-TDD :B34/B38/39/B40/B41/B42/B43/
B48LAA B46
WCDMA: B1/B2/B3/B4/B5/B6/B8/B19
MIMO DL: 4 x4, UL: 2 x2
GNSS: GPS/GLONASS/BeiDou
(Compass)/Galileo
Transmission Rate 5G SA Sub-6 :DL 2.1 Gbps/UL 900 Mbps
5G NSA Sub-6 :DL 2.5 Gbps/UL 650 Mbps
LTE:DL 1.0 Gbps/UL 200 Mbps
WCDMA:DL 42 Mbps/UL 5.76 Mbps
Others
Size 185.0×112.0×33.0mm(L*W*H)
Working Temperature -40℃~75℃
Storage Temperature -40～85℃/5%～95% RH
Software
User Configuration web
Functions *Domain name resolution DNS
*Wi-Fi signal supports WPA/WPA2, WPA3 and other encryption methods
*Support operator APN/VPDN dedicated network card
*Port mapping function
*Traffic speed limit function, support QoS
*DHCP, static routing, PPPoE, static IP function
*Support serial port to network transparent transmission: support TCP Server/TCP Client/UDP Server/UDP Client and other transmission protocols
*Network diagnosis function: support Ping, Traceroute and Tcpdump (network packet capture tool), etc.
*Support local system log, remote log, local log timing save, etc.
*Support Web upgrade, etc.
*Support wired and wireless multi-network simultaneous online, link backup, dual-mode backup, wired and wireless backup, etc.
*Watchdog function, automatic detection of network disconnection, automatic restart of dialing failure, one-key restore to factory default configuration
*Support immediate restart and scheduled restart function
*Support serial port to network transparent transmission: support TCP Server/TCP Client/UDP Server/UDP Client and other transmission protocols
*Support a new generation of peanut shell inner network penetration function
*Support dynamic DNS domain name mapping
*Support VPN Client (PPTP/L2TP/OPENVPN/GRE/IPSEC)
*Support VPN Server (PPTP/L2TP/IPSEC)
*Support SNMP protocol and network management platform
*Support LLDP link discovery protocol
*Support GPS and Beidou positioning function
