Sku: MIR652-W
Tipo de Produto:
Routers Wireless
Fabricante:
MAIWE
MIR652-W

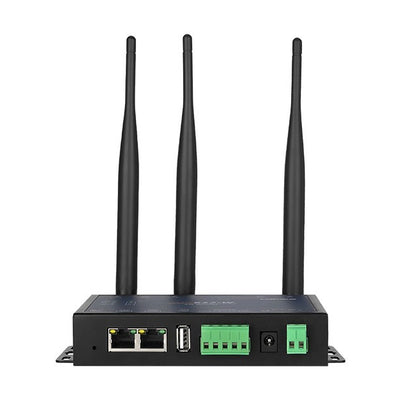

1 WAN Port + 1 LAN Port 100M Dual SIM 4G LTE Router
- 1 wired LAN port +1 wired WAN port
- 1 WLAN wireless local area network
- 4G communication module supporting Mini-PCIE interface
- Support LED status monitoring (display power, Run, Wi-Fi, 4G network connection status and signal strength status, WAN port connection, LAN port connection)
- Support transparent data transmission from RS-232/485 to the network
- Support wired and wireless multi-network simultaneous online, multi-network intelligent switching backup function
- Support WAN/LAN mode switching (routing mode 1WAN+1LAN or 2LAN)
- Support the new generation of peanut shell intranet penetration and dynamic domain name resolution DDNS
Caraterísticas
Especificações
Downloads
Order Information
Caraterísticas
MIR652 series industrial wireless router is a new generation of dual-port 4G router, which is designed and developed specifically for industrial communication network applications, supporting mobile, telecommunications, and China Unicom 2/3/4G. This series of products has rich network connection types, supporting transparent data transmission from RS-232/485 to the network, 1 wired LAN port, 1 wired WAN port and 1 WLAN wireless local area network. At the same time, it also supports wired and wireless multi-network simultaneous online, multi-network intelligent switching backup functions, etc., so that industrial communication is smoother, more reliable, and faster, and meets the continuous innovation needs of customers to increase value-added applications.
Features and Benefits
-Support Web multi-platform management configuration mode;
-Support one-key restart and factory reset function;
-Wired network ports all support 10 / 100Mbps rate;
-Support APN automatic network detection, automatic switching of 2/3/4G standard, SIM card information display, support APN dedicated network card;
-Support wired and wireless multi-network simultaneous online, multi-network intelligent switching backup function;
-Support static routing, PPPoE, DHCP, static IP function;
-Support firewall, NAT, DMZ host, black and white list of access control, IP speed limit, MAC speed limit;
-Support QoS intelligent traffic speed limit;
-Support RTC hardware clock and NTP network automatic time calibration;
-Support WAN / LAN mode switching (routing mode 1WAN + 1LAN or 2LAN);
-Support peanut shell intranet penetration and dynamic domain name resolution DDNS;
-Support VPN virtual private network;
-Support SNMP protocol and SNMP Trap report; support LLDP protocol.
Especificações
Antenna | |
Number of antennas |
1 |
Antenna interface |
SMA interface (outer screw inner hole) |
SIM card |
Voltage: 3V, 1.8V Size: standard large card (small card can be used in a card holder) |
Support the number of SIM cards |
2 |
Serial Port | |
|
Serial data port (5Pin terminal) |
RS-232/485 (two modes cannot be used at the same time) |
Serial data rate |
300~230400bps |
Network Port | |
Network port type |
RJ45 |
Electromagnetic isolation protection |
1.5kV |
LAN interface |
1 x 10/100Mbps self-adaptive Ethernet port, support MDI/MDIX, cross-direct connection automatic flip |
WAN interface |
1 x 10/100Mbps adaptive Ethernet port, support MDI/MDIX, cross-direct connection automatic flip |
Wi-Fi | |
Wireless standard |
Support 802.11b/g/n |
Antenna |
2, SMA interface (outer screw inner hole) |
Antenna interface |
SMA interface (outer screw inner hole) |
Power | |
Power supply |
9.0V～36.0V |
Working current |
Average 301mA@12V, peak 218mA@12V |
Power connector |
DC power socket, terminal power supply |
Power protection |
Anti-surge, ESD protection, anti-reverse connection |
Others | |
Operating temperature |
40℃～75℃ |
Storage temperature and humidity |
-40～85℃/5%～95% RH (non-condensing) |
Physical dimension |
162mm×95mm×29mm (L*W*H) (excluding ears) |
Installation method |
Wall mount, guide rail (need additional guide rail accessories) |
Wireless | |
Network standard |
China Mobile/Unicom/Telecom 4G, China Unicom 3G, China Mobile/Unicom 2G |
Transmission rate |
FDD-LTE: Max 150Mbps (downlink)/Max 50Mbps (uplink) TDD-LTE: Max130Mbps (downlink)/Max 30Mbps (uplink) WCDMA: Max 384Kbps (downlink)/Max 384Kbps (uplink) EDGE: Max 236.8Kbps (downlink) /Max 236.8Kbps (uplink) PRS: Max 85.6Kbps (downlink)/Max 85.6Kbps (uplink) |
Working frequency |
LTE FDD: B1/B3/B5/B8 LTE TDD: B34/B38/B39/B40/B41 WCDMA: B1/B5/B8 GSM/EDGE: B3/B8 |
Software | |
User software |
No |
User configuration |
Web interface |
Software parameters |
Support domain name resolution DNS, operator private network APN Wi-Fi signal supports WPA/WPA2, WEP and other encryption methods Support dynamic DNS domain name mapping, port mapping function, traffic speed limit function, support QoS DHCP Server, IP-MAC binding, static routing, PPPoE, static IP function, WAN/LAN mode switching Network diagnosis function: support Ping, Traceroute and Tcpdump (network packet capture tool) Support local system log, remote log, local log timing save, support Web upgrade, etc. Support wired and wireless multi-network online at the same time, link backup, dual card backup, wired and wireless backup, watchdog function, automatic detection of network disconnection, automatic restart of dialing failure, one-key restore to factory default configuration, etc. Support immediate restart and scheduled restart function. Support serial port to network transparent transmission: support TCP Server/TCP Client/UDP Server/UDP. Support LLDP protocol, Client and other transmission protocols, SNMP protocol and SNMP Trap reporting Support peanut shell intranet penetration function. Support VPN Client (PPTP/L2TP/OPENVPN/GRE/IPSEC). Support VPN Server (PPTP/L2TP/IPSEC). |
Downloads
Order Information
Odering information | |
| MIR652-W | 1 WAN Port + 1 LAN Port 100M Dual SIM 4G LTE Router |
