MiTAC's MX1-10FEP embedded system is the next generation embedded system with Intel® Coffee Lake C246 workstation chipset which can support Xeon and Core-i LGA1151 socket type processor. The excellent performance, powerful processor, OCP/OVP power protection, and expandable design provide the solution for every complicated task and most types of application.

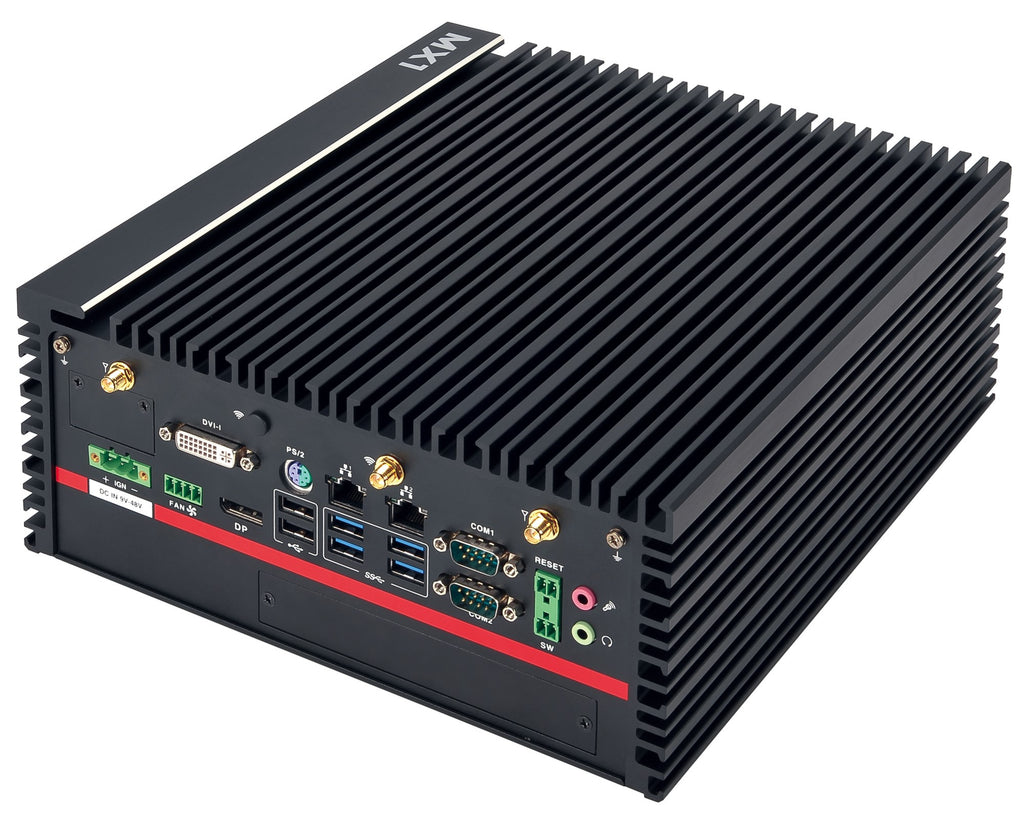

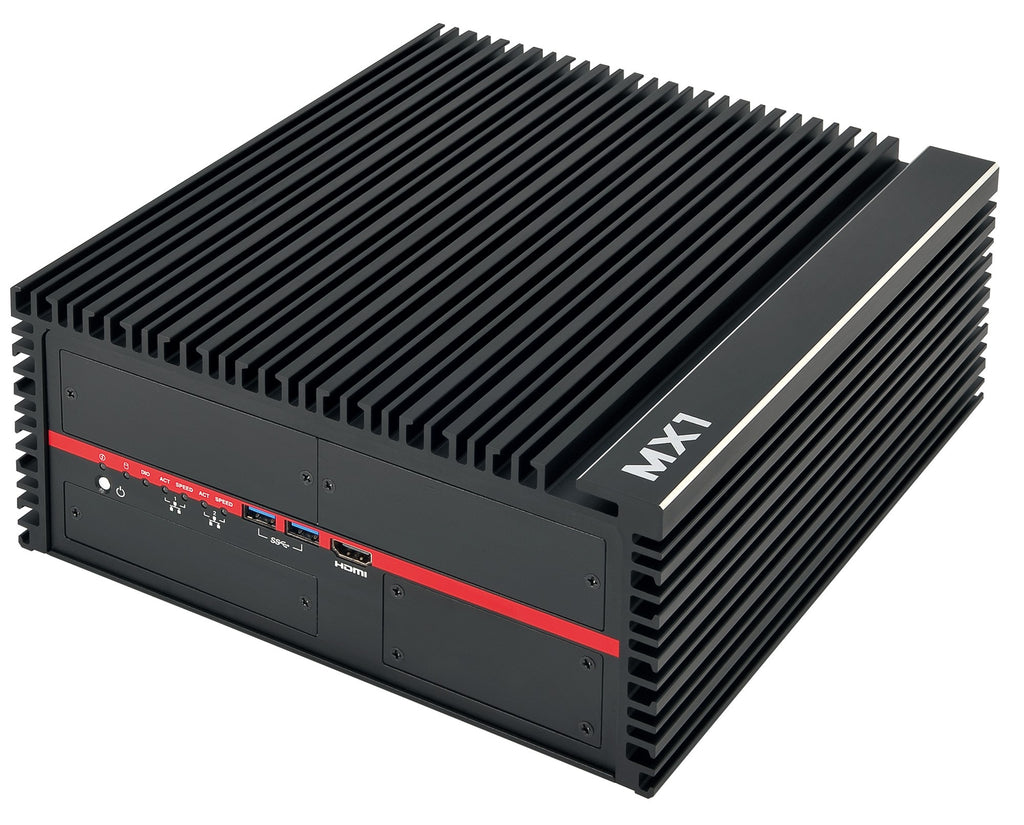

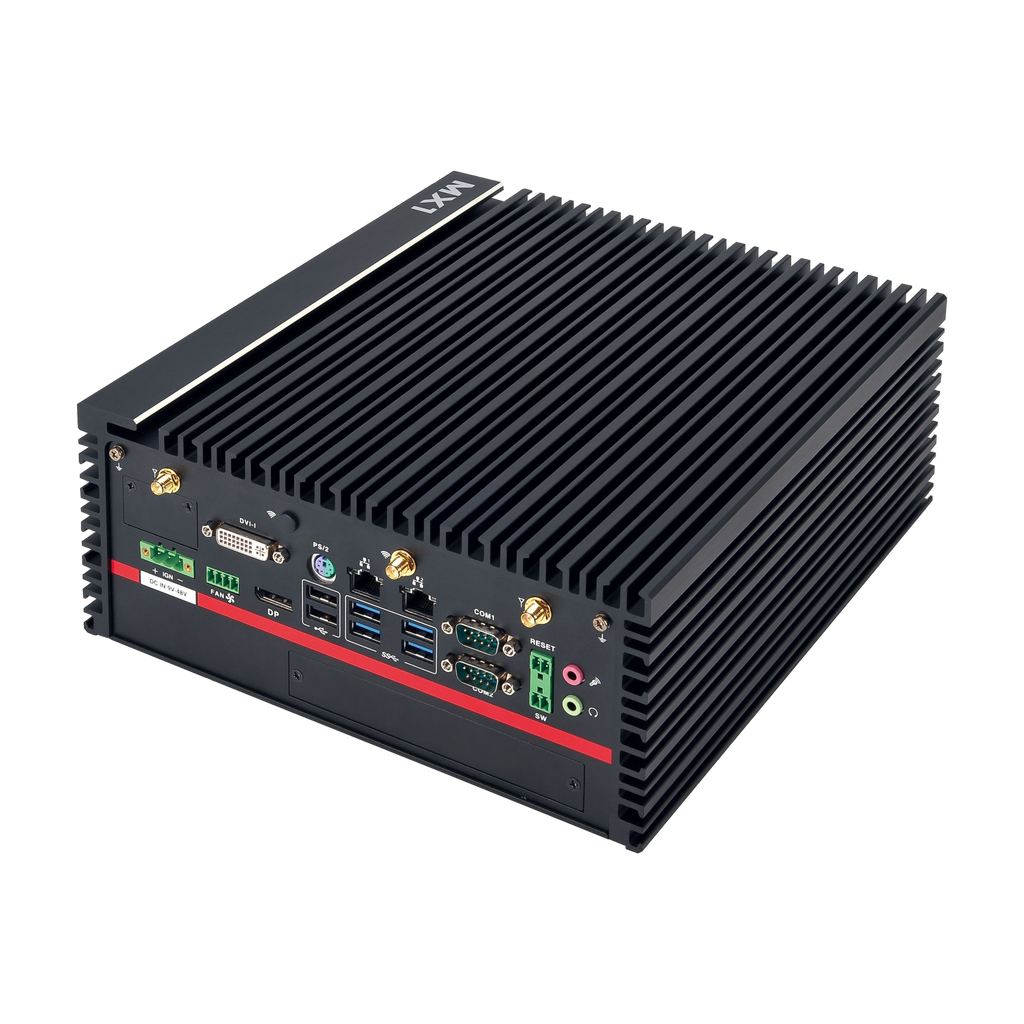

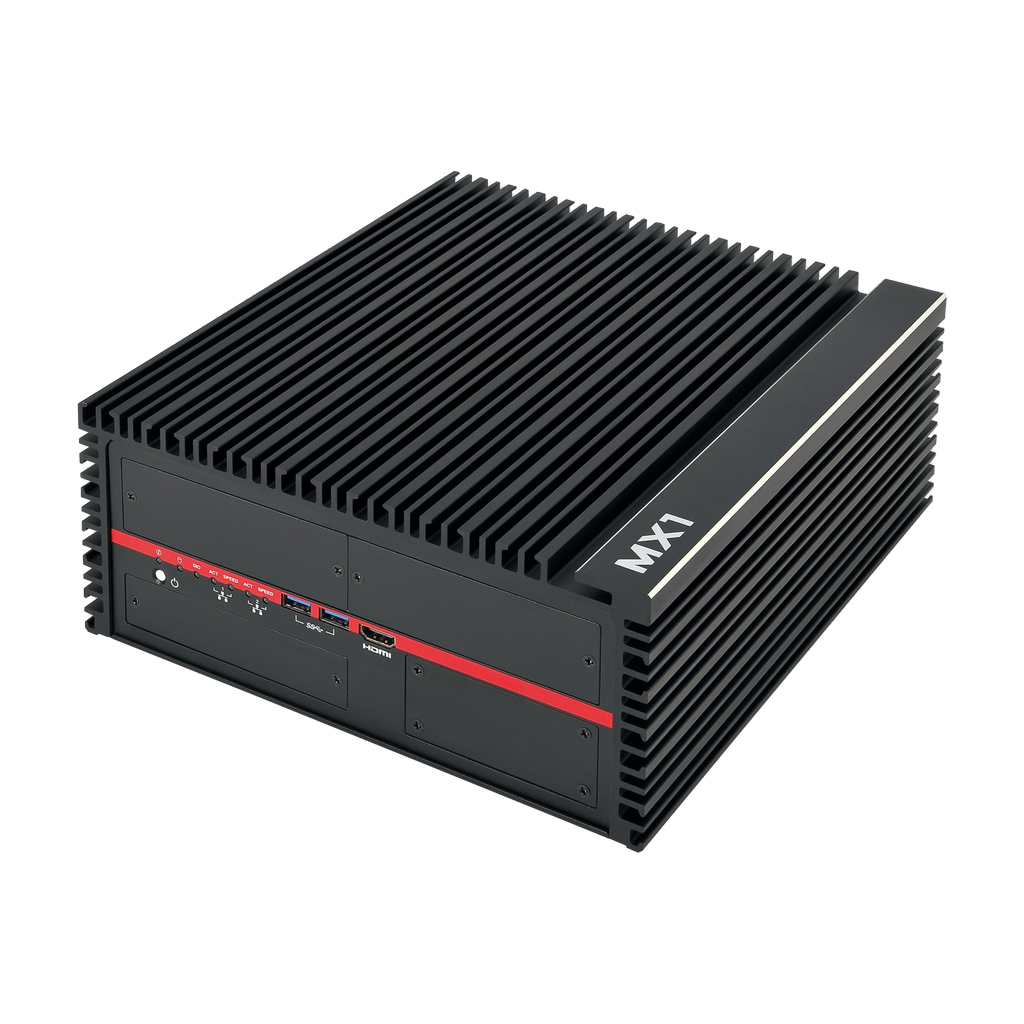

The MX1-10FEP's 7.8 liter fan-less chassis design and Xpandable module design give it the possibility to implement the complicated tasks and for every workspace and environment. VESA mount holes allow for space-saving and rear-mounting on VESA arms. Flexibilities also mean a rich array of I/O ports (including 2 x Ethernet RJ45, 8 x USB, 1 x HDMI, 1 x DVI-I, 1 x DisplayPort, 2 x COM, PCIe X16 slot, 3-pin Terminal Block Power Input, and 3 x Expansion doors) to add a variety of peripherals. Storage expandability is supported for 3 x high-density hard drives in 2.5" HDD bracket design. Two mPCIe (shared with mSATA) slots provide the support of SSD and wireless interfaces which allow effortless connection to Wi-Fi and Bluetooth networks, and 4Gconnectivity. DIO/COM/LAN/PoE/Power Ignitoin expansion modules extend the capability and possibility to be used in more applications.
O MX1-D é também uma solução NVIDIA GPUCloud (NGC) para os clientes implementarem aplicativos de Inteligência Artificial. O MX1-D passou por testes adicionais para segurança e controlo de sistema remotos, que são requisitos fundamentais para implantações deste tipo. MX1-D é um sistema ideal para executar o DGX™, proporcionando facilidade de implantação.
The versatile Xpansion Module design, offers various I/O functionalities through its lower clever cost effective modulation, providing all functions within one system.
MX1-10FEP-D with AI modules powered by Intel® Movidius™ Myriad™ X creates the possibility to be implemented in more Edge AI solutions, for example, traffic flow monitoring and real-time decision, manufacturing yield rate improvement via AI algorithm, remote healthcare service, and efficient transportation.
Supports triple independent displays (DP + HDMI + DVI). The HDMI & DisplayPort up to 4K high resolution. The enhanced visual quality responses the demand of being high precise.
MX1-10FEP is designed in patented aluminum enclosure not only for atheistic appearance but also for fan-less application in extreme temperature condition from -40 oC to 70 oC.
MX1-10FEP are certified and all units undergo severe environmental testing to ensure reliable performance under a variety of automation conditions.
MX1-10FEP (MX1-10FEP) |
||||
| Model | Chipset | Thermal | Power | AC Adaptor |
|---|---|---|---|---|
| MX1-10FEP-C246 | C246 | Fanless | 9~48V Wide Rage DC Input w/ Terminal Block Connectivity | None |
| MX1-10FEP-C246-AC300 | C246 | Fanless | 9~48V Wide Rage DC Input w/ Terminal Block Connectivity | 300W AC to DC Adaptor |
| MX1-10FEP-C246-AC220 | C246 | Fanless | 9~48V Wide Rage DC Input w/ Terminal Block Connectivity | 220W AC to DC Adaptor |
| MX1-10FEP (MX1-10FEP) Specifications | |||
|---|---|---|---|
| SYSTEM | CPU | 9th & 8th Gen Intel® Coffee Lake Xeon LGA1151 Socket Processor, 6-core TDP Max. 80W / 9th & 8th Gen Intel® Coffee Lake LGA1151 Socket Processor, Core i7/i5/i3 6-core TDP Max. 65W, Core i9 8-core TDP Max 35W / *Please see the CPU Options in Docs / Manuals | |
| CHIPSET | Intel® C246 | ||
| SYSTEM MEMORY | Max. 32GB (Xeon: ECC / Non-ECC; Core-i: Non-ECC) / DDR4 2666MHz / 2 x 260-pin SO-DIMM | ||
| GRAPHICS | Intel® HD Graphics | ||
| DISPLAY INTERFACE | DisplayPort 1.2 / DVI-I / HDMI 1.4 | ||
| STORAGE SLOT | 3 x 2.5 HDD / SSD (1 w/ Removable HDD Bay, 2 w/ Internal HDD Bracket) / 2 x mSATA / 1 x M.2 M Key SSD | ||
| ETHERNET | Intel® I219-LM Giga LAN + I210-IT Giga LAN | ||
| AUDIO | Realtek® ALC662 | ||
| I/O CHIPSET | Nuvoton NCT6116D | ||
| TPM | Nuvoton NPCT750AAAYX TPM2.0 | ||
| EXPANSION SLOT | Storage: M.2 2280 / 2260 / 2242 M key (PCIe, SATA) / PCIe 3.0 X16 slot / Storage/LTE/Wireless: 2 x mPCIe Full / Half size (USB / PCIe / SATA), w/ SIM Card Holder / Wireless: M.2 2230 E key (PCIe, USB) | ||
| INTERNAL SPEAKER | 1 x Buzzer | ||
| INDICATOR | DIO LED / LAN1 & 2 ACT / SPEED / Power LED / HDD LED | ||

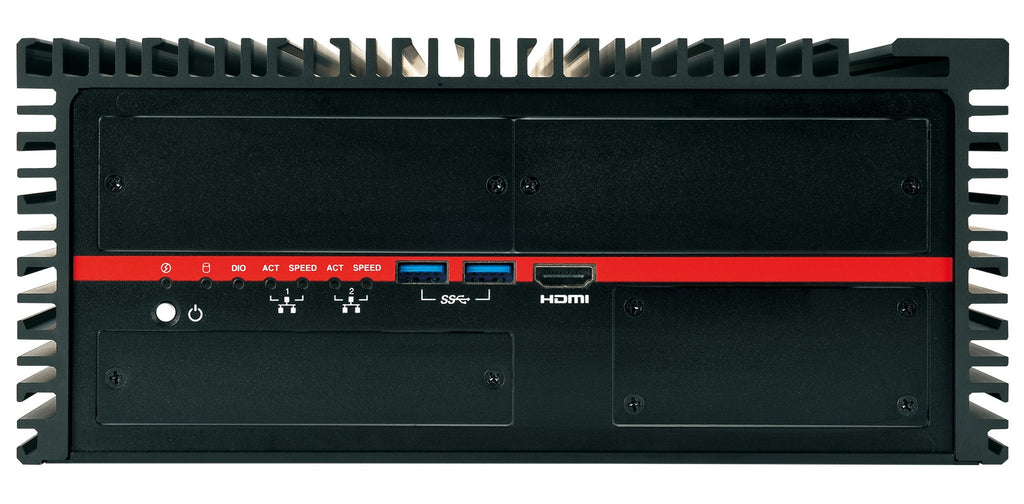

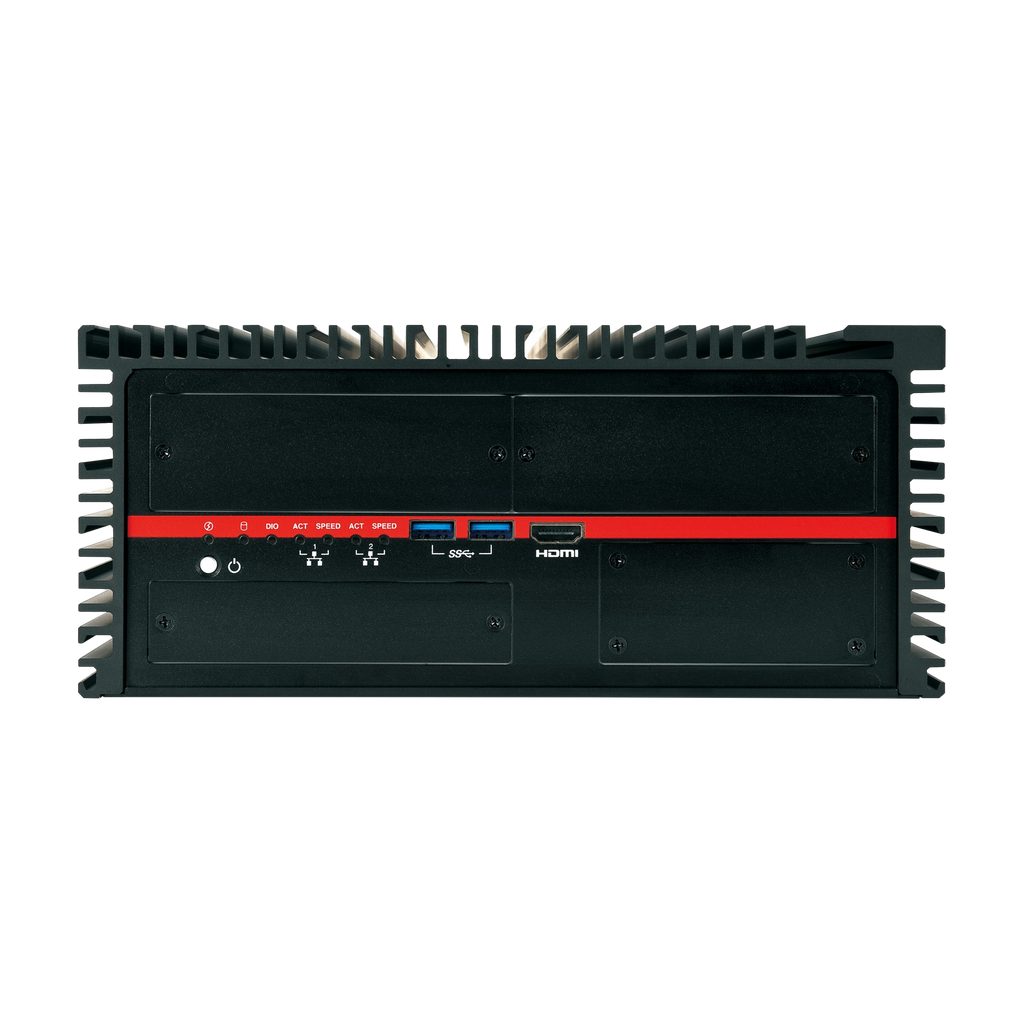

| FRONT I/O | 1 x HDMI 1.4 / 2 x USB 3.0 / 2 x SIM Card Slot w/ Cover / 1 x 2.5" SATAIII HDD / SSD Bay | ||

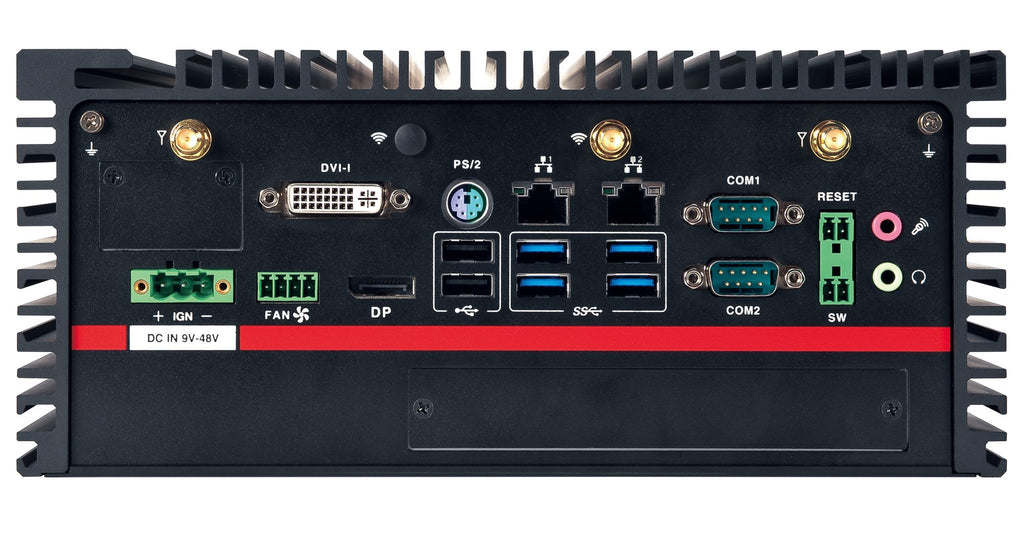

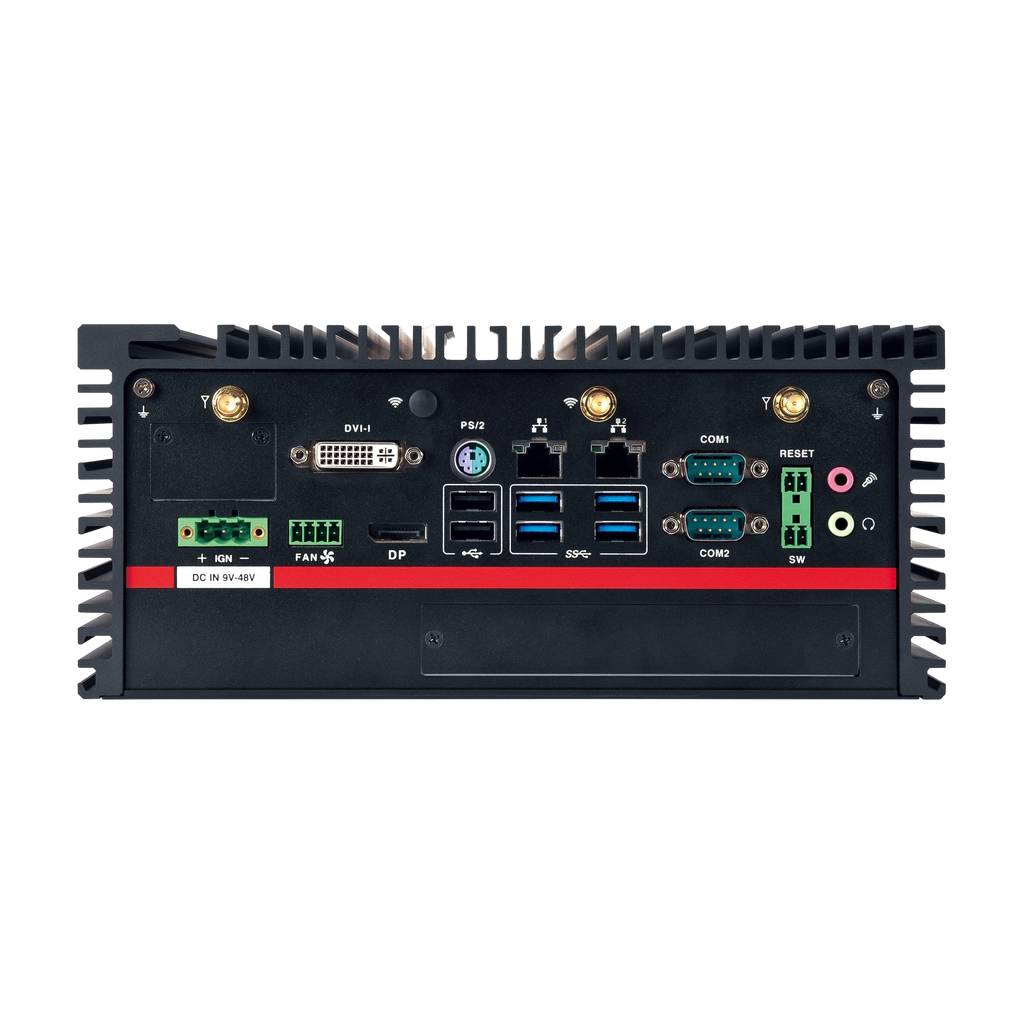

| REAR I/O | 1 x DisplayPort 1.2 / 1 x DVI-I / 2 x RJ-45 / 4 x USB 3.1 Gen 2 (10 Gbps) / 2 x USB 2.0 / 2 x RS232 / 422 / 485 (Support Power 5V / 12V) / 1 x Mic-in / 1 x Line-out / 1 x PS/2 / 1 x PCIe x16 slot / 1 x 2-pin Terminal Block Remote Power Reset / 1 x 3-pin Terminal Block Power Input / 1 x 4-pin Terminal Block External Fan Connector / 1 x 2-pin Terminal Block Remote Power on / off / 4 x SMA Antenna (Optional for WiFi/LTE function) | ||
| EDGE AI ENGINE (Optional) | 1X/2X/3X/4X Movidius Myriad X VPU, and Intel® OpenVINO™ toolkit supported (Optional) | ||
| POWER REQUIREMENT | POWER INPUT | 9~48V Wide Range DC Input w/ Terminal Block Connectivity | |
| POWER ADAPTER | Optional | ||
| ENVIRONMENTAL | OPERATING TEMPERATURE | 35W TDP Processor: -40°C to 70°C / 51~65W TDP Processor: -40°C to 50°C / 71~80W TDP Processor: -40°C to 40°C / with 0.7m/s Air Flow and Wide Temperature Memory/Storage | |
| STORAGE TEMPERATURE | -40 ~ 85°C (-40 ~185°F) | ||
| OPERATING HUMIDITY | 10% ~ 90% R/H (Non-condensing) | ||
| STORAGE HUMIDITY | 10% ~ 95% @85°C non-condensing | ||
| VIBRATION RESISTANCE | Operating: 5Hz~500Hz / 5Grms / 3Axis (w/ SSD, according to IEC60068-2-64) | ||
| SHOCK RESISTANCE | Operating: 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | ||
| CERTIFICATION | CE / FCC Class A / E-Mark Certification (E13, No.10R-0515319) / EN50155 / LVD CoC: EN62368-1 | ||
| MECHANICAL | THERMAL DESIGN | Fanless | |
| MOUNTING | Wallmount | ||
| DIMENSIONS (W X D X H) | 10.6” x 9.7” x 4.3” (268 x 246 x 108 mm) | ||
| WEIGHT | 6.9kg (15.2 lb) | ||
| OS | OS SUPPORT | Windows® 10 64-bit / Linux (support by request) | |
| PACKING LIST | PACKAGE | 1 x Driver CD / 1 x Quick Installation Guide / 1 x Embedded System / 1 x CPU Cooler (passive) / 1 x Wall Mount Brackets (2PCS in 1 set) / 1 x 3 pin Terminal Block Power Connector / 1 x 4 pin Terminal Block Male Connector / 2 x 2 pin Terminal Block Male Connector / 1 x DVI to VGA converter / 1 x 30 cm SATA & SATA PWR Y Cable (3rd SSD/HDD needs optional SATA Y cable) | |
