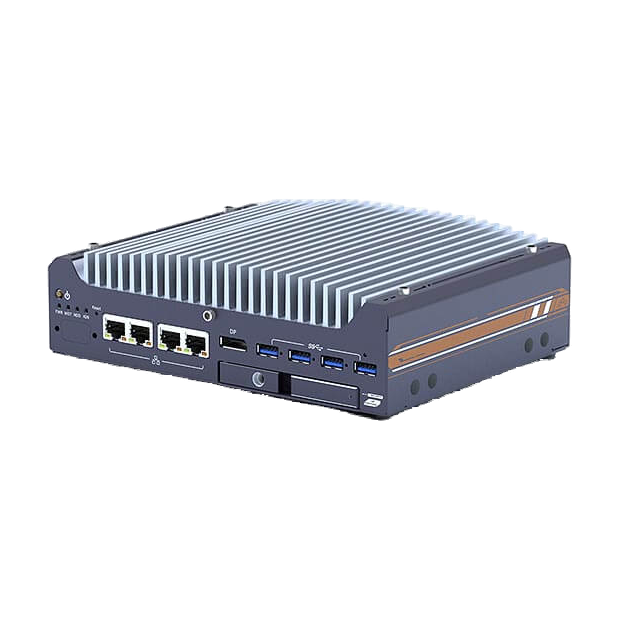

Nuvo-9531 is one of the most compact fanless embedded computers based on the Intel 12th -Gen Alder Lake platform. Measuring just 212 x 165 x 63 mm, it can fit into restricted spaces, such as in robotic arm and AMR applications. Despite its compact size, Nuvo-9531 does not compromise on performance. Built on Intel's 7nm process, Intel 12th Gen processors have up to 16 cores/ 24 threads to deliver up to 1.8x the performance when compared to previous Intel 10th or 11th Gen platforms. Nuvo-9531 is a compact fanless embedded computer that can provide the ultimate computing for various industrial applications.
Nuvo-9531 has rich I/O functions. It features four GbE and four USB3.2 Gen 1 ports for multiple camera connectivity. In addition, it features a Gen4 x4 M.2 NVMe slot for the latest NVMe SSDs that support read/ write speeds up to 7000 MB/s. It also has another hot-swappable HDD tray to hot-swap the storage drive without turning off the system or dismantling the chassis. There are two mPCIe and one M.2 E key slots to install WiFi or 5G/ 4G for wireless communication needs. In addition, Nuvo-9531 is also equipped with 8x DIO, 2x COM ports, and dual display outputs for your application needs.
As a compact embedded computer, Nuvo-9531 delivers excellent computing performance and offers an abundance of I/O connections. It is suitable for a variety of industrial applications, especially when installation space is limited. Nuvo-9531 is the ideal compact fanless computer for the industrial market.
■ NEOUSYS MARKETING TEAM
| System Core | |
|---|---|
| Processor | Supporting Intel® 12th-Gen Alder Lake Core™ CPU (LGA1700 socket, 35W/ 65W TDP) - Intel® Core™ i9-12900E/ i9-12900TE - Intel® Core™ i7-12700E/ i7-12700TE - Intel® Core™ i5-12500E/ i5-12500TE - Intel® Core™ i3-12100E/ i3-12100TE - Intel® Pentium® G7400E/ G7400TE - Intel® Celeron® G6900E/ G6900TE |
| Chipset | Intel® 600 Series PCH platform controller hub |
| Graphics | Integrated Intel® UHD Graphics 770 (32EU) |
| Memory | Up to 32GB non-ECC DDR4 3200 SDRAM (one SODIMM slot) |
| TPM | Supports dTPM 2.0 |
| I/O Interface | |
| Ethernet Port | 4x Gigabit Ethernet ports by 4x I210 |
| USB | 4x USB 3.2 Gen1 (5 Gbps) ports 2x USB 2.0 ports |
| Video Port (Integrated Graphics) |
1x VGA output, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution |
| Serial Port | 1x software-programmable RS-232/422/485 ports (COM1) 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2) |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| Isolated | DIO 4-CH isolated DI and 4-CH isolated DO |
| Expansion Bus | |
|---|---|
| Mini PCI Express | 2x full-size mini PCI Express sockets with internal SIM sockets |
| M.2 E key | 1x M.2 2230 E key socket for WiFi5, WiFi6 or Google edge TPU module |
| Storage Interface | |
| SATA HDD | 1x hot-swappable 2.5" HDD/ SSD tray |
| M.2 | 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD |
| Power Supply | |
| DC Input | 1x 3-pin pluggable terminal block for 8 to 48V DC input |
| Mechanical | |
| Dimension | 212 mm (W) x 165 mm (D) x 63 mm (H) |
| Weight | 2.5kg |
| Mounting | Wall-mount (standard) or DIN-rail mount (optional) |
| Environmental | |
| Operating Temperature |
with 35W CPU -25°C ~ 60°C * with 65W CPU (installation of the optional fan kit is recommended) -25°C ~ 60°C */** |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 |
| Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55035 |
120W AC/DC power adapter 20V/6A;18AWG/ 120cm; cord end terminals for terminal block, operating temperature : -30°C to 70 °C
DIN-rail mounting assembly for Nuvo-9531 series
Fan kit with 80mm x 80mm fan for Nuvo-9531 series
