• NVIDIA Jetson Orin NX
  • MIPI CSI-2
  • GbE RJ-45 (PoE option)
  • 1xM.2. key E
  • 40-pin:  UART, SPI, 12C, I2S, GPIOs
com IVA
1,801.95€

sem IVA
1,465.00€
Sku: D131OXB
Product Type: NVIDIA Development Kit
Vendor: AVerMedia

D131OXB

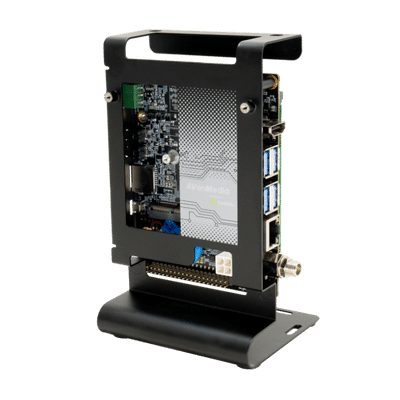

Engineering Kit built with NVIDIA® Jetson Orin™ NX Module

  • 2 x 2 Lane MIPI CSI-2 Camera input
  • 1 x 4 Lane MIPI CSI-2 Camera Input
  • 2 x M.2. for Wi-Fi, SSD and Capture card
  • 1 x GbE RJ-45 (Option PoE), 40-pin expansion header
  • 4 x USB3.2 Gen1 (5G) type A and 1 x 4Kp60 HDMI output
  • Operating temperature: 0°C ~ 70°C  (TBD)
  • Dimension: 157mm(W) x 105mm(L) x 85mm(H) with stand (without antenna)
Vista Rápida

AVerMedia Engineering Kit D131 built with NVIDIA® Jetson Orin™ NX Module. This efficient SoM makes advanced analytics possible while providing the ability to handle a host of other embedded IoT applications.

D131 is a ready-to-use product that integrates cameras, SSD, and thermal solutions to deliver an optimized user experience via its vertical mechanical design. The power input and expanded 40-pin are both designed at the bottom side to avoid cable interference. In addition, the capability of multi-camera support and its compact size design are also notable.

Especificações

Model

D131OXB

NVIDIA Jetson SoM

Jetson Orin NX

Networking

1x GbE RJ-45 (PoE option)

1xM.2. key E 2230 for Wi-Fi

Display Output

1x HDMI 2.0 (3840 x 2160 at 60Hz)

Temperature

Operating temperature 0°C~70°C (TBD)

Storage temperature -40°C ~ 85°C

Relative humidity 40 °C @ 95%, Non-Condensing

MIPI Camera Inputs

2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector

1x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector

USB

1x USB 2.0 Micro-B for recovery

4x USB 3.2 Gen1 (5G) type A

Storage

1x M.2. key M 2280 for SSD

Expansion Header

40-pin:  1x UART, 2x  SPI, 2x 12C, 1x I2S, GPIOs

Input Power

DC in jack on board & ATX 4-pin

12V/5A, 9V~24V is recommended

Power Cord

US/JP/EU/UK/TW/AU/CN

Thermal Solution

Fan

Buttons

Power and Recovery

RTC Battery

Support RTC Battery and Battery Life Monitoring by MCU

Dimensions

157mm(W) x 105mm(L) x 85mm(H) with stand (without antenna)

Certifications

CE, FCC, KC

Package

1 x Carrier Board
1 x NVIDIA® Jetson module + Fan
1 x Stand

1 x 256G SSD

Optional Accessory

  • PSE Board

  • WIFI KIT

  • APPRO IMX179 Camera module



D131OXB with optional accessories as below photo.

D131OXB Camera module
