Sku: MIR605-W
Product Type:
Routers Wireless
Vendor:
MAIWE

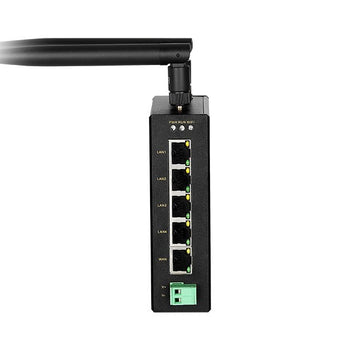

MIR605-W
DIN RAIL Industrial WIFI Wireless Router
- Support 4 wired LAN ports and 1 wired WAN port
- Support wireless WPA/WPA2, WEP and other encryption methods, support wireless AP/Client mode
- Support LED status indication (display power, Run, Wi-Fi, WAN port connection, LAN port connection)
- Support peanut shell intranet penetration and dynamic domain name resolution DDNS
- Support local system log, remote log, local log timing preservation, etc.
- Support time zone setting, NTP network automatic time calibration function
Caraterísticas
Especificações
Downloads
Order Information
Caraterísticas
MIR605-W wireless router is a wireless router that can be used in power systems, industrial monitoring, traffic management, meteorology, water treatment, environmental monitoring, financial securities, coal mines, petroleum and other industries for remote field data collection, remote monitoring and field control.
MIR605-W has rich and diverse networking functions, supporting wired WAN port, LAN port and WLAN network access.
Features and Benefits
-Support 4 wired LAN ports and 1 wired WAN port;
-Support wireless WPA/WPA2, WEP and other encryption methods, support wireless AP/Client mode;
-Support external watchdog, press button to restart and restore factory settings;
-Support LED status indication (display power, Run, Wi-Fi, WAN port connection, LAN port connection);
-Support peanut shell intranet penetration and dynamic domain name resolution DDNS;
-Support local system log, remote log, local log timing preservation, etc.;
-Support time zone setting, NTP network automatic time calibration function;
-Support software restart immediately and scheduled restart function.
Especificações
|
Electrical port parameters |
|
|
Interface standard |
Comply with IEEE802.3 standard |
|
Interface |
4 LAN ports, 1 WAN port |
|
Features |
RJ-45 shielded port supports 10Base-T/100Base-TX, supports auto-negotiation function |
|
Transmission distance |
<100 meters |
|
Wi-Fi Parameters |
|
|
Frequency |
Frequency range: 2412GHz---2484MHz |
|
Transmit power |
IEEE 802.11n: 13-16dBm @HT20/40 MCS7 |
|
IEEE 802.11g: 14-17dBm @54MHz |
|
|
IEEE 802.11b: 16-20dBm @11MHz |
|
|
Receiving sensitivity |
HT40 MCS7: -69dBm@10% PER(MCS7) |
|
HT20 MCS7: -71dBm@10% PER(MCS7) |
|
|
54M: -75dBm@10% PER |
|
|
11M: -88dBm@ 8% PER |
|
|
Antenna parameters |
|
|
Standard |
Support 802.11b/g/n |
|
Quantity |
2 pcs |
|
Interface |
SMA interface (outer screw inner hole) |
|
Power parameters |
|
|
power supply |
DC9-36V |
|
Power consumption |
<2.5W |
|
Overcurrent protection |
Built-in |
|
Temperature |
|
|
Operating temperature |
-40℃～70℃ |
|
Storage temperature |
-40～85℃ |
|
Humidity |
5%～95% RH (non-condensing) |
|
Mechanical parameters |
|
|
Physical size |
(Height×Width×Depth): 118mm×35mm×86mm (not including DIN rail assembly size) |
|
Installation method |
DIN rail type |
|
Heat dissipation form |
Aluminum alloy single-rib chassis surface heat dissipation, no fan |
|
Weight |
0.3kg |
|
Industry Standard |
|
|
EMC |
EN61000-4-2(ESD), Level 4 |
|
EN61000-4-4(EFT), Level 4 |
|
|
EN61000-4-5(Surge), Level 4 |
|
|
Shock |
IEC60068-2-27 |
|
Free fall |
IEC60068-2-32 |
|
Shock |
IEC60068-2-6 |
|
Software parameters |
|
|
Domain name resolution DNS Wi-Fi signal supports WPA/WPA2, WEP and other encryption methods web login and upgrade mirror. Local system log, remote log, local log timing save, etc. External watchdog, button restart and factory reset function LED status indication (Power, Run, Wi-Fi, WAN port connection, LAN port connection) Software restart immediately and scheduled restart function Wireless WPA/WPA2, WEP and other encryption methods, support wireless AP/Client mode DHCP Server, DHCP Clinet, static IP, domain name resolution and other functions Ping, Traceroute and Tcpdump (network packet capture tool) IP-MAC binding, static routing, PPPoE, WAN/LAN mode switching function Firewall, NAT, DMZ host, black and white list of access control, IP speed limit, MAC speed limit Port forwarding function, traffic speed limit function, QoS Peanut shell intranet penetration and dynamic domain name resolution DDNS SNMP v1/v2c protocol and SNMP Trap report VPN Client (PPTP/L2TP/OPENVPN/GRE/SSTP/IPSEC) VPN Server (PPTP/L2TP/IPSEC) Support LLDP protocols |
|
Downloads
Order Information
|
Odering information |
|
| MIR605-W | 1 WAN interface + 4 LAN interfaces to single frequency 2.4G WIFI wireless card rail type industrial router, DC9~36V power supply. Standard rod antenna, metal shell |
