AAEON BOXER-6643-TGU (Intel 11 Gen, 2 LAN, 2 COM, DIO, 9-36VDC)

Price excludes VAT 1,033.00€

Total with VAT (23%): 1,270.59€

Shipping calculated at checkout.

SKU: BOXER-6643-TGU-A1-1010

Product type: Industrial PCs

Manufacturer: AAEON

BOXER-6642-CML-A1-1010

Intel® Core™ i3-1115G4E

BOXER-6642-CML-A2-1010

Intel® Core™ i5-1145G7E

BOXER-6642-CML-A3-1010

Intel® Core™ i7-1185G7E

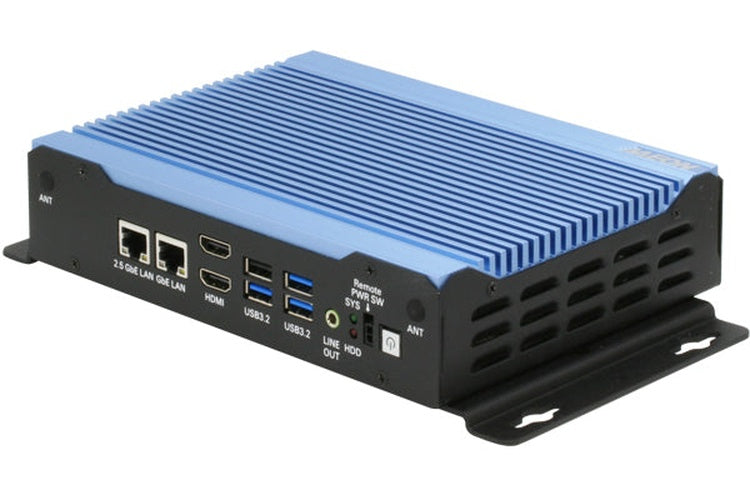

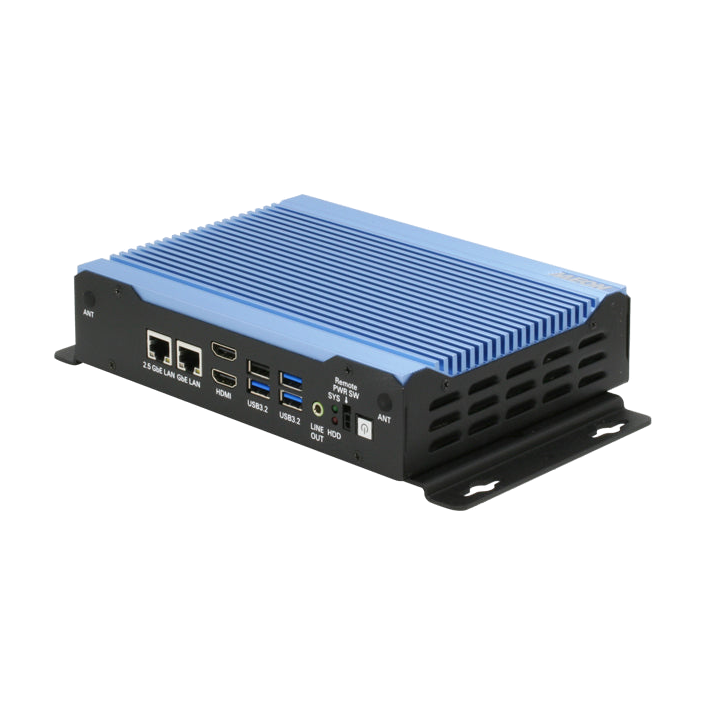

Fanless embedded Box PC with 11th-generation Intel® processors

Extreme computing power with Intel® SoC processor
DDR4 slots x2, up to 64GB
TPM 2.0 onboard
Supports high-speed NVMe storage (M.2 2280)
GbE LAN x 1 (Intel I219) + 2.5GbE LAN x 1 (Intel I225)
Supports M.2 3052 B Key for 5G module
Wide-range 9-36V DC input
Wide operating temperature range, -20~60 °C

The Boxer-6643-TGU brings the power of 11th-generation Intel® Core ™ U processors to a compact, rugged platform that offers greater performance and more features than previous generations. The system supports up to 64 GB of memory, unlocking the full potential of its processing resources. With integrated Intel® IRIS® XE graphics, users can leverage the GPU to accelerate industrial AI and Edge computing applications or deliver high-definition graphics for digital signage and kiosk applications.

The Boxer-6643-TGU has two LAN ports, one operating at 2,5 Gbps and the other at 1,0 Gbps, ensuring fast communications for real-time processing and control. The system also features expansion slots for wireless networking, including cellular communications, Wi-Fi, 4G and 5G. Additional I/O interfaces include three USB3.2 GEN 2 ports, one USB2.0 port, Dual COM ports and 8-channel DIO.

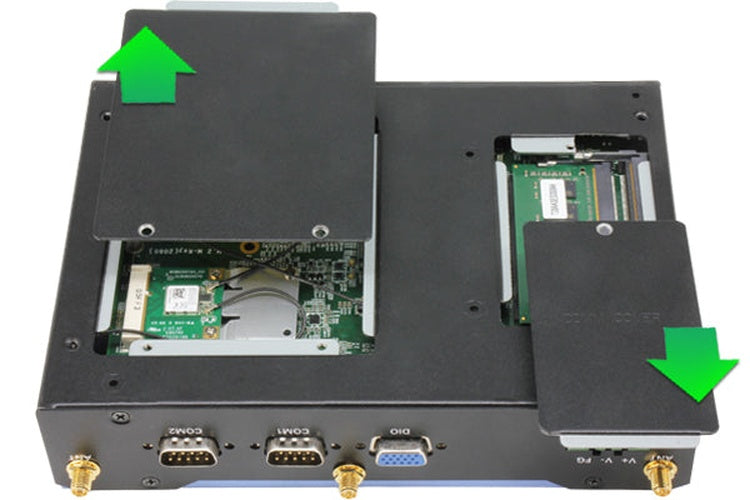

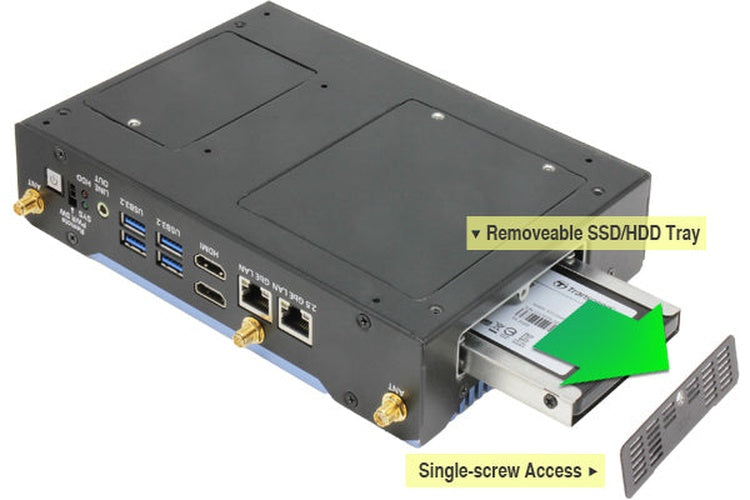

The Boxer-6643-TGU supports storage options including mSATA and NVME and features a SATA III port connected directly to the board, eliminating cables that could become loose in high-vibration environments. The 2,5 ” SATA drive is easy to install and maintain using a slide-out tray located on the side of the system. In addition, two easily accessible panels on the underside of the system allow users to quickly add or upgrade expansion cards and memory modules.

Built for deployment anywhere, the Boxer-6643-TGU features a compact form factor and rugged construction. Its fanless design keeps dust and contaminants out while supporting an operating temperature range from -20 ° C to 60 ° C. With its cable-free design, the system is suitable for high-vibration environments. Learn more about the Boxer-6643-TGU.

Packing list

Wall-mount bracket x 2
3-pin DC-in power connector x 1
Screw package x 1
BOXER-6643-TGU x 1

SYSTEM
CPU	Intel® Core™ i7-1185G7E Intel® Core™ i5-1145G7E Intel® Core™ i3-1115G4E
CHIPSET	Intel® SoC
SYSTEM MEMORY	DDR4 3200MHz SO-DIMM x 2, max. 64GB
DISPLAY INTERFACE	HDMI 2.0 x 2
STORAGE DEVICE	M.2 2280 M Key NVMe slot x1 (PCIex4) 2.5" SATA drive bay x1
ETHERNET	RJ-45 x 2 for 1G/2.5GbE LAN (i219x1, i225x1)
I/O	HDMI 2.0 x 2 RJ-45 x 2 for 1G/2.5GbE LAN (i219 x 1, i225 x 1) USB Type-A x3 for USB3.2 Gen2 USB Type-A x1 for USB 2.0 DB-9 x 2 for RS-232/422/485 DB15 male x1 for 8-channel digital I/O Line out x 1 3-pin 9~36V power input x 1 Power button with LED x 1
EXPANSION	M.2 3052 B Key x 1 (for 5G module) Full-Size Minicard x1 (PCIe + USB / SATA, default PCIe + USB) SIM Slot x 1
INDICATOR	Power / system LED
OS SUPPORT	Windows® 10 IoT 64-bit Windows 10 Pro Linux Ubuntu 20.04.2
POWER SUPPLY
POWER REQUIREMENT	DC-in 9-36V x1 via 3-pin Terminal Block
MECHANICAL
MOUNTING	Wall mount
DIMENSIONS (W X H X D)	9.84” x 5.62” x 2.03” (250 x 143 x 51.5) with bracket 7.87” x 5.62” x 1.75” (200 x 143 x 44.5) without bracket
GROSS WEIGHT	4.4 lb (2.0 kg)
NET WEIGHT	3.3 lb (1.5 kg)
ENVIRONMENTAL
OPERATING TEMPERATURE	-4°F ~ 140°F (-20°C ~ 60°C), according to IEC68-2 with 0.5 m/s airflow (with industrial wide-temperature SSD/RAM)
STORAGE TEMPERATURE	-40°F ~ 176°F (-40°C ~ 80°C)
STORAGE HUMIDITY	5 ~ 95% @ 40°C, non-condensing
ANTI-VIBRATION	3 Grms/ 5 ~ 500Hz/ operation (with SSD)
ANTI-SHOCK	50G, IEC 68-2-27, half-sine, 11 ms duration (with SSD)
CERTIFICATION	CE/FCC class A

Ordering information [BOXER-6643-TGU]

PART NUMBER	BOXER-6643-TGU-A1-1010	BOXER-6643-TGU-A2-1010	BOXER-6643-TGU-A3-1010
CPU	Intel® Core™ i3-1115G4E	Intel® Core™ i5-1145G7E	Intel® Core™ i7-1185G7E
LAN	2	2	2
PCH	Intel SoC	Intel SoC	Intel SoC
USB	USB 3.2 Gen2 x 3 USB 2.0 x 1	USB 3.2 Gen2 x 3 USB 2.0 x 1	USB 3.2 Gen2 x 3 USB 2.0 x 1
RS232/422/485	2	2	2
STORAGE	-M.2 2280 M Key NVMe slot x1 (PCIex4) -2.5" SATA drive bay x1	-M.2 2280 M Key NVMe slot x1 (PCIex4) -2.5" SATA drive bay x1	-M.2 2280 M Key NVMe slot x1 (PCIex4) -2.5" SATA drive bay x1
DISPLAY	HDMI x 2	HDMI x 2	HDMI x 2
EXPANSION	-M.2 3052 B Key x 1 (for 5G module) -Full-Size Minicard x1 (PCIe + USB / SATA, default PCIe + USB) -SIM slot x 1	-M.2 3052 B Key x 1 (for 5G module) -Full-Size Minicard x1 (PCIe + USB / SATA, default PCIe + USB) -SIM slot x 1	-M.2 3052 B Key x 1 (for 5G module) -Full-Size Minicard x1 (PCIe + USB / SATA, default PCIe + USB) -SIM slot x 1
MOUNTING	Wall mounting	Wall mounting	Wall mount
POWER	9~36V DC input	9~36V DC input	9~36V DC input
OPERATING TEMPERATURE	-4°F ~ 140°F (-20°C ~ 60°C), according to IEC68-2 with 0.5 m/s airflow (with industrial wide-temperature SSD/RAM)	-4°F ~ 140°F (-20°C ~ 60°C), according to IEC68-2 with 0.5 m/s airflow (with industrial wide-temperature SSD/RAM)	-4°F ~ 140°F (-20°C ~ 60°C), according to IEC68-2 with 0.5 m/s airflow (with industrial wide-temperature SSD/RAM)
