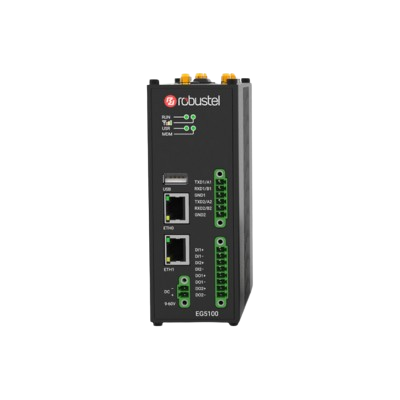

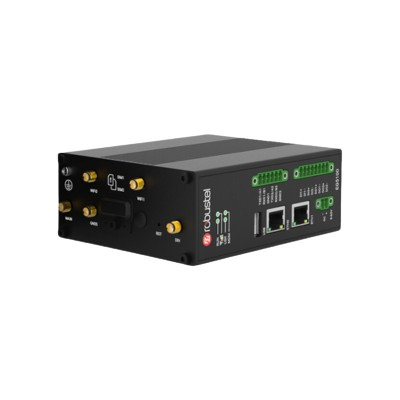

Robustel EG5100-A2CDA-4L-A06GL (I.MX6 ULL, 1GB/8GB, CAN, Wifi/BT, 4G)
EG5100-A2CDA-4L-A06GL
EG5100 Industrial 4G Edge Computing Gateway
I.MX6 ULL, 1G RAM, 8GB Flash, 2xEth, 1xUSB, 1xRS232/RS485, 1xCAN, 2xDI, 2xDO, 2xETH, 4G LTE, WIFI/BLE
The Robustel EG5100 is a new generation of industrial Edge Computing gateways, with global support for 4G/3G/2G networks and a fully featured operating system based on Debian 11 (bullseye), capable of supporting thousands of existing or new ARMv7-based applications (Raspberry Pi compatible).
Robustel’s EG5100 is a new generation of industrial Edge Computing gateway, supporting global 4G/3G/2G networks for cellular backhaul, with a fully featured Debian 11(bullseye)-based operating system capable of supporting thousands of existing or new ARMv7-based applications (Raspberry Pi compatible).
The EG5100 supports Docker for easy application deployment and benefits from ‘RobustOS Pro’ — Robustel’s latest router OS, featuring enhanced cybersecurity, an advanced GUI and a wide range of software features, including VPNs, Smart Roaming, SMS remote control and more. With a 792 MHz Cortex A7 CPU, the EG5100 takes computing power to the next level and can be used as a combination of cellular router + embedded PC for IoT applications.
RCMS is Robustel’s free router monitoring service and is fully compatible with the EG5100. It allows customers to view the locations of their routers quickly and easily on a map. Information such as data usage, signal strength, current network and much more can be viewed for each router. Over-the-air updates are supported for firmware, router configuration and apps, providing essential “insurance” if anything was not configured correctly during deployment. You can try Robustel’s free router management platform by signing up here: https://rcms-cloud.robustel.net
Highly stable 4G/3G/2G cellular connectivity with global band coverage
High-performance compute engine with 8 GB eMMC Flash for running complex customer applications
Support for ‘Docker’ containerisation
Microsoft Azure IoT qualified
802.11ac Wi-Fi (optional), supporting AP and Client modes
Bluetooth (optional), Bluetooth 5.2 compliant
x RS232/RS485 ports (software configurable) or 1 x RS232/RS485 (software configurable) +1 x CAN for connection to industrial/legacy devices
2 x DI & 2 x DO for simple monitoring and control
Dual SIM card slots for redundant communications
Wide operating temperature range for industrial applications
Full Modbus TCP and Modbus RTU support, including MQTT transfer to mainstream cloud platforms
Supports C, C++, Java, Python, Node.js etc., enabling users to develop their own applications
More than 50,000 applications from the Debian repository currently available
Wireguard/IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN + more VPN options
Supports RCMS — Robustel’s router/gateway management platform for effectively managing large device estates
Hardware System | |
CPU | ARM Cortex-A7, 792 MHz |
RAM | 1GB DDR3 |
Flash | 8 GB eMMC |
Cellular interface | |
Number of antennas | 2 |
Connector | SMA-K |
SIM | 2 x Mini SIM (2FF) |
GNSS Interface (Optional) | |
Number of antennas | 1 |
Connector | SMA-K |
Technology | GPS |
Ethernet interface |
|
Ports | 2 xRJ45, 10/100 Mbps, LAN or WAN |
Magnetic isolation protection | 1 KV |
Serial interface |
|
Type | 2 x RS232/RS485 (software configurable) Or 1 x RS232/RS485 (software configurable) + 1 x CAN |
Connector | 6-pin 3.5 mm terminal block with lock |
ESD protection | 8 KV air, 4 KV contact |
Baud rate | 300 bps to 115200 bps |
Signal | RS232: TXD, RXD, GND; RS485: Data+ (A), Data- (B), GND; CAN: H, L, GND |
DI/DO Interface |
|
Number of ports | 2 x DI + 2 x DO, wet contact |
Connector | 8-pin 3.5 mm terminal block with lock (DI/DO) |
Absolute maximum VDC | + 30V DC |
Absolute maximum ADC | 100 mA |
Signal definition | DI1+, DI1-, DI2+, DI2-, DO1+, DO1-, DO2+, DO2- |
Wi-Fi Interface (Optional) | |
Number of antennas | 2 |
Connector | RP- SMA-K |
Standards | 802.11a/b/g/n/ac, 2 x 2 MIMO, supports AP and Client modes |
Frequency bands
| 2.412 – 2.484 GHz (2.4 GHz ISM band) 5.18 – 5.825 GHz (5 GHz ISM band) |
Security | WEP 64-bit and 128-bit encryption with H/W TKIP processing |
| WPA/WPA2 (Wi-Fi Protected Access) |
| AES-CCMP hardware implementation as part of the 802.11i security standard |
Bluetooth interface (Optional) | |
Number of antennas | 1 (Multiplexing Wi-Fi antenna) |
Connector | RP-SMA-K |
Standards | Bluetooth 2.1 and 3.0 + Enhanced Data Rate (EDR) + Bluetooth 5.2 |
Other | |
Reset button | 1 x RST |
USB | 1 x USB 2.0 (host), Type A, 5V, 500mA |
LED indicators | 1 x RUN, 1 x MDM, 1 x USR, 1 x Signal |
Watchdog | External |
Software (Basic features of RobustOS Pro) | |
Network protocols
| PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, NTP, SMTP, Telnet, HTTPs, DNS, ARP,SSH2, DDNS, etc. |
VPN tunnel | IPsec, OpenVPN, GRE |
Firewall | DMZ, anti-DDoS, filtering (IP/domain name/MAC address), port mapping, access control |
Remote management | Web, CLI, SMS |
Serial port | Transparent, TCP client/server, UDP, Modbus RTU gateway |
Others | Smart Reboot, Data Guard, Smart Roaming |
SDK |
|
Operating system | RobustOS Pro (Based on Debian 11(bullseye)) |
Supported programming language | C, C++, Python, Java, Node.js etc. (for users to develop their own applications) |
Debian repository available | |
Flash available for SDK | 6 GB |
RAM available for SDK | 768 MB |
App Center (Available apps for RobustOS Pro) | |
Apps* | L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic route, Captive Portal, Modbus Master, etc. |
*Available on request. For more apps, please visit www.robustel.com. | |
Power supply and consumption | |
Connector | 2-pin 3.5 mm terminal block with lock |
Input voltage | 9 ~ 60V DC |
Power consumption | Idle: 3W |
| Data link: 12W (peak) |
Physical characteristics | |
Ingress protection | IP30 |
Housing & weight | Metal, 567 g |
Dimensions | 49 x 105 x 128 mm |
Installation | Desktop, wall mounting and 35 mm DIN rail mounting |
Operating temperature | -40 ~ +70 °C |
Storage temperature | -40 ~ +85 °C |
Relative humidity | 5 ~ 95% RH |
Regulatory and type approvals (*In progress) | |
Environmental | RoHS2.0 |
Model
Model | PN | Wi-Fi +BLE | CAN | Cellular | GPS | Frequency bands* | Country/ Region | Certification (*In progress) |
EG5100-A2ACA-4L-A06GL | B066706 | – | – | √ | √ | 4G: LTEFDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 LTE TDD: B34/B38/B39/B40/B41 3G: WCDMA: B1/B2/B4/B5/B6/B8/B19 2G: GSM: B2/B3/B5/B8 | Global | CE RCM CB UKCA |
EG5100-A2CCA-4L-A06GL | B066708 | √ | – | √ | √ | |||
EG5100-A2ADA-4L-A06GL | B066716 | – | √ | √ | √ | |||
EG5100-A2CDA-4L-A06GL | B066717 | √ | √ | √ | √ | |||
EG5100-A2ECA-NU | B066712 | √ | – | – | – | – |
