• GPU NVIDIA RTX 2000 Ada Generation Embedded baseado na arquitetura NVIDIA Ada Lovelace
• 3072 núcleos CUDA, 24 núcleos RT e 96 núcleos Tensor, 8 GB de memória GDDR6
• Interface PCIe Gen 4 x16 via dedo dourado
• Desempenho máximo do FP32 de 12,99 TFLOPS

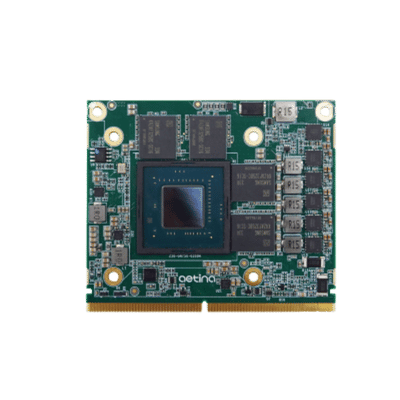

The MX2000A-VA MXM 3.1 Type A module features an NVIDIA RTX 2000 Ada Generation Embedded GPU based on the NVIDIA Ada Lovelace architecture. This architecture delivers revolutionary ray tracing and AI performance for graphics and neural networks. With dramatically higher baseline performance tailored for ray tracing and neural graphics workloads, it marks a major advancement in capabilities. The module enables outstanding gaming, content creation, professional graphics, AI acceleration, and compute power.
● Advanced GPU engine compared to Ampere Architecture |
| Powered by the NVIDIA RTX 2000 Ada Generation Embedded GPU featuring the NVIDIA Ada Lovelace architecture, the MX2000A-VA module delivers higher performance from its Ray Tracing and Tensor cores compared to GPUs built on the previous architecture. This enables more advanced ray traced graphics and AI capabilities. |
● Supports Error Correction Code(ECC) |
| ECC provides higher reliability for compute applications that are sensitive to data corruption, especially important in large-scale cluster computing environments where GPUs process extremely large datasets and/or run applications for extended periods. |
● PCIe Gen 4 x8 signal |
| PCIe Gen 4 interface in Ada Lovelace Architecture GPUs delivers faster sequential data transfer than PCIe Gen 3 interface. The increased throughput unlocks higher performance, lower latency and better scalability in Ada Lovelace architecture over previous generations. |
● Conformal coating optional service for rugged applications |
| For all series of MXM modules, Aetina offers conformal coating optional service, suitable for harsh environments such as massive-computing embedded applications. |
● 5-year long-term supply |
| During long development period, Aetina ensures MXM modules with 5-year availability and exclusive technical support, helping customers to save maintenance cost and time. |
Model Number |
MX2000A-VA |
|
|
GPU Engine Specs |
NVIDIA RTX 2000 Ada Generation Embedded GPU Architecture: NVIDIA Ada Lovelace CUDA Cores: 3072 Tensor Cores: 96 RT Cores: 24 Floating Point Performance: 8.94 TFLOPS Core Clock (MHz): Base= 930 / Boost= 1455 |
NVIDIA RTX 2000 Ada Generation Embedded GPU Architecture: NVIDIA Ada Lovelace CUDA Cores: 3072 Tensor Cores: 96 RT Cores: 24 Floating Point Performance: 12.99 TFLOPS Core Clock (MHz): Base= 1635 / Boost= 2115 |
Memory Specs |
Size: 8GB GDDR6 Speed: 16 Gbps Interface Width: 128-bit Bandwidth (GB/sec): 256 |
|
Feature Support |
PCI Express 4.0 x8 DirectX: 12 Ultimate Open GL 4.6 Vulkan 1.2 |
|
Display |
Resolution: 7680x43201 Max: 3x DisplayPort 1.4a |
|
Power Consumption |
Total Graphics Power (TGP): 35 W |
Total Graphics Power (TGP): 60 W |
Form Factor |
MXM Graphics Module Version 3.1, Type A |
|
Dimensions (WxD) |
82.0 x 70.0 mm (3.22” x2.75”) |
|
Net Weight |
0.037 kg (0.082 lb) |
|
Temperature |
Standard: Operating Temp. :0 to + 55°C (32°F ~131°F )/ Extended Operating Temp. :-40 to + 85°C (-40°F ~185°F)/ Storage Temperature: -40 to + 85°C (- 40°F ~ 185°F) |
|
Humidity |
40°C @ 95%, Non-condensing |
|
OS Support |
Windows 10/11 64-bit / Linux 64-bit |
|
Certification |
CE/FCC/UKCA |
|
