• GPU NVIDIA RTX 5000 Ada Generation Embedded baseado na arquitetura NVIDIA Ada Lovelace
• 9728 núcleos CUDA, 76 núcleos RT e 304 núcleos Tensor, 16 GB de memória GDDR6
• Interface PCIe Gen 4 x16
• Desempenho máximo do FP32 de 41,15 TFLOPS
• Suporte ao Código de Correção de Erros (ECC)

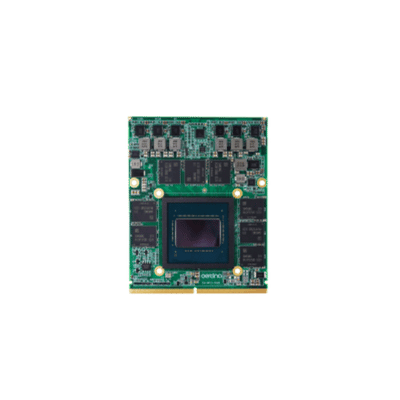

The MX5000A-WA MXM 3.1 Type B module features an NVIDIA RTX 5000 Ada Generation Embedded GPU based on the NVIDIA Ada Lovelace architecture. This architecture delivers revolutionary ray tracing and AI performance for graphics and neural networks. With dramatically higher baseline performance tailored for ray tracing and neural graphics workloads, it marks a major advancement in capabilities. The module enables outstanding gaming, content creation, professional graphics, AI acceleration, and compute power.
● Advanced GPU engine compared to Ampere Architecture |
| Powered by the NVIDIA RTX 5000 Ada Generation Embedded GPU featuring the NVIDIA Ada Lovelace architecture, the MX5000A-WP module delivers higher performance from its Ray Tracing and Tensor cores compared to GPUs built on the previous architecture. This enables more advanced ray traced graphics and AI capabilities. |
● Supports Error Correction Code(ECC) |
| ECC provides higher reliability for compute applications that are sensitive to data corruption, especially important in large-scale cluster computing environments where GPUs process extremely large datasets and/or run applications for extended periods. |
● PCIe Gen 4 x16 interface |
| PCIe Gen 4 interface in Ada Lovelace Architecture GPUs delivers faster sequential data transfer than PCIe Gen 3 interface. The increased throughput unlocks higher performance, lower latency and better scalability in Ada Lovelace architecture over previous generations. |
● Conformal coating optional service for rugged applications |
| For all series of MXM modules, Aetina offers conformal coating optional service, suitable for harsh environments such as massive-computing embedded applications. |
● 5-year long-term supply |
| During long development period, Aetina ensures MXM modules with 5-year availability and exclusive technical support, helping customers to save maintenance cost and time. |
Model Number |
MX5000A-WA |
|
GPU Engine Specs |
NVIDIA RTX 5000 Ada Generation Embedded GPU Architecture: NVIDIA Ada Lovelace CUDA Cores: 9728 Tensor Cores: 304 RT Cores: 76 Floating Point Performance: 32.69 TFLOPS Core Clock (MHz): Base= 930 / Boost= 1680 |
NVIDIA RTX 5000 Ada Generation Embedded GPU Architecture: NVIDIA Ada Lovelace CUDA Cores: 9728 Tensor Cores: 304 RT Cores: 76 Floating Point Performance: 41.15 TFLOPS Core Clock (MHz): Base= 1425 / Boost= 2115 |
Memory Specs |
Size: 16GB GDDR6 Speed: 18 Gbps Interface Width: 256-bit Bandwidth (GB/sec): 576 |
|
Feature Support |
PCI Express 4.0 x16 DirectX: 12 Ultimate Open GL 4.6 Vulkan 1.2 |
|
Display |
Resolution: 7680x43201 Max: 4x DisplayPort 1.4a |
|
Power Consumption |
Total Graphics Power (TGP): 80 W |
Total Graphics Power (TGP): 115 W |
Form Factor |
MXM Graphics Module Version 3.1, Type B |
|
Dimensions (WxD) |
82.0 x 105.0 mm (3.22” x4.13”) |
|
Net Weight |
0.06 kg (0.1323 lb) |
|
Temperature |
Standard: Operating Temp. :0 to + 55°C (32°F ~131°F )/ Extended Operating Temp. :-40 to + 70°C (-40°F ~158°F) /Storage Temperature: -40 to + 85°C (- 40°F ~ 185°F) |
Standard: Operating Temp. :0 to + 55°C (32°F ~131°F )/ Storage Temperature: -40 to + 85°C (- 40°F ~ 185°F) |
Humidity |
40°C @ 95%, Non-condensing |
|
OS Support |
Windows 10/11 64-bit / Linux 64-bit |
|
Certification |
CE/FCC/UKCA |
|
1. Up to 4k 12-bit HDR at 240Hz with DP1.4a+DSC. Up to 8k 12-bit HDR at 60Hz with DP 1.4a+DSC or HDMI2.0+DSC. With dual DP1.4a+DSC, up to 8K HDR at 120Hz.
