• Intel® Core™ i3 Processor N/Intel® Atom® Processor X/Intel® Processor N-series SoC (formerly Alder Lake-N)
  • DDR5 4800MHz SODIMM
  • 2.5GbE
  • M.2 2280 M-Key / M.2 2230 E-Key
  • Wide Range 9 ~ 36VDC
com IVA
851.51€

sem IVA
692.29€
Sku: BOXER-6617-ADN-A1-1010
Product Type: PCs Industriais
Vendor: AAEON

BOXER-6617-ADN-A1-1010

Intel® Processor N50

BOXER-6617-ADN-A2-1010

Intel® Processor N97

BOXER-6617-ADN-A3-1010

Intel® Core™ i3- N305

BOXER-6617-ADN-A4-1010

Intel Atom® x7211E

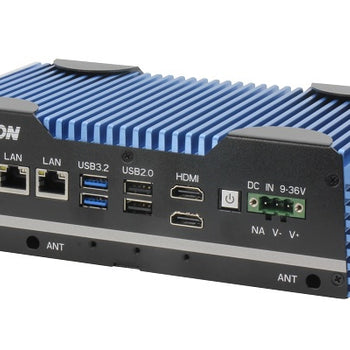

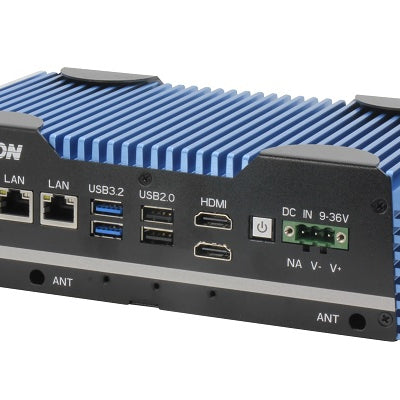

Fanless Box PC com CPU Alder Lake-N Intel® Core™ i3-N305, Intel Atom® x7211E e Intel® N-series

  • Intel® Core™ i3 Processor N/Intel® Atom® Processor X/Intel® Processor N-series SoC (formerly Alder Lake-N)
  • DDR5 4800MHz SODIMM x 1
  • 2.5GbE x 2
  • M.2 2280 M-Key/M.2 2230 E-Key
  • M.2 3052 B-Key for 5G
  • SuperSpeed+ USB 3.2 Gen 2
  • Onboard TPM 2.0
  • Wide Range 9 ~ 36V DC input
  • Super Wide Operating Temperature -20~70°C
Caraterísticas

Mobilizing the potential of the Intel® Core™ i3-N305, Intel Atom® x7211E, and Intel® Processor N-series platforms, the new BOXER-6617-ADN represents the pinnacle of robust, efficient industrial computing. With Intel® architecture, a robust chassis design, dynamic expansion, and a library of high-speed interfaces, it offers a rugged, fanless solution that ensures elite and reliable operation for a wide range of applications, including AMR, smart city, and CNC devices, even in the harshest environments.

Low Power, High Performance Processing

The BOXER-6617-ADN's efficient yet potent processor architecture is complemented by SODIMM-based high-bandwidth DDR5 memory. This combination enables enhanced data analysis and decision-making while maintaining a lower power consumption rate. As a result, it not only delivers high-performance solutions but also reduces ongoing costs when used in large-scale automation and smart city projects.

Dynamic Expansion for Wireless Communication

Utilizing SSD-based storage through a 2.5" SATA HDD and an M.2 M-Key slot, the BOXER-6617-ADN removes development constraints, enabling the implementation of complex algorithms required for edge-based smart city applications. Furthermore, the BOXER-6617-ADN's M.2 E and B-Key slots support 5G, Wi-Fi, and LTE connectivity, facilitating seamless edge-to-cloud data exchange and wireless communication with industrial machinery when deployed as in industrial automation.

Robust Hardware for an Extended Lifecycle

Featuring an extensive temperature range of -20°C ~ 70°C, a wide 9V ~ 36V DC input range with circuit protection, and engineered to withstand high levels of vibration and shock, the BOXER-6617-ADN is built for tough settings, making it the perfect choice for factory deployment. Its longevity is further enhanced by its fanless chassis design and lockable I/O connectors. This design not only makes it impervious to dust but also improves operational durability and fortifies against environmental wear and tear.

Compact Connectivity for AMR Accuracy

At just 214mm x 115.5mm x 65.8mm, the BOXER-6617-ADN is compact. Despite this, it houses a complete array of interfaces for high-speed communication with external devices. Six DB-9 ports offer RS-232/422/485, while dual 2.5GbE LAN, dual HDMI, and a 10-pin terminal block offer the communication protocols needed for precise AMR functionality, while the system’s flexible storage provides the resources for AGV route mapping.

Especificações
SYSTEM
CPU Intel® Processor N50
Intel® Processor N97
Intel® Core™ i3-N305
Intel Atom® x7211E
CHIPSET Intel® SoC
SYSTEM MEMORY DDR5 4800MHz SODIMM x 1, up to 32GB
DISPLAY INTERFACE HDMI x 2
STORAGE DEVICE M.2 2280 M-Key x 1 (PCIe [x2][x2])
M.2 2230 E-Key x 1 (for Wi-Fi)
M.2 3052 B-Key x 1 (for 5G/LTE)
SIM Slot x 1
INDICATOR Sys LED
Storage active LED
OS SUPPORT Windows® 10 IoT Enterprise
Linux Ubuntu 22.04
POWER SUPPLY
POWER REQUIREMENT DC-in 9-36V x 1 for 3-Pin Terminal Block
MECHANICAL
MOUNTING Wall Mount
DIMENSIONS (W X H X D) 8.42" x 4.54" x 2.59" (214mm x 115.5mm x 65.8mm) without brackets
GROSS WEIGHT 6.17 lb. (2.8Kg)
NET WEIGHT 4.4 lb. (2Kg)
ENVIRONMENTAL
OPERATING TEMPERATURE -4°F ~ 158°F (-20°C ~ 70°C), according to IEC68-2 with 0.5 m/s AirFlow (w/ Industrial wide Temp. SSD/RAM)
STORAGE TEMPERATURE -40°F ~ 176°F (-40°C ~ 80°C)
STORAGE HUMIDITY 5 ~ 95% @ 40°C, non-condensing
ANTI-VIBRATION 3 Grms/ 5 ~ 500Hz/ operation (with SSD)
ANTI-SHOCK 50G, IEC 68-2-27, half sine, 11 ms duration (with SSD)
CERTIFICATION CE/FCC Class A



Ordering Information [BOXER-6617-ADN]

PART NUMBER BOXER-6617-ADN-A1-1010 BOXER-6617-ADN-A2-1010 BOXER-6617-ADN-A3-1010 BOXER-6617-ADN-A4-1010
CPU Intel® Processor N50 Intel® Processor N97 Intel® Core™ i3- N305 Intel Atom® x7211E
LAN 2 2 2 2
PCH Intel SoC Intel SoC Intel SoC Intel SoC
USB USB 3.2Gen 2 x2
USB2.0 x4
USB 3.2Gen 2 x2
USB2.0 x4
USB 3.2Gen 2 x2
USB2.0 x4
USB 3.2Gen 2 x2
USB2.0 x4
RS-232/422/485 6 6 6 6
STORAGE M.2 2280 M Key Slot x1 (PCIe x2)
2.5" SATA Drive Bay x 1
M.2 2280 M Key Slot x1 (PCIe x2)
2.5" SATA Drive Bay x1
M.2 2280 M Key Slot x1 (PCIe x2)
2.5" SATA Drive Bay x1
M.2 2280 M Key Slot x1 (PCIe x2)
2.5" SATA Drive Bay x1
DISPLAY HDMI x2 HDMI x2 HDMI x2 HDMI x2
EXPANSION M.2 2280 M-Key x 1 (PCIe [x2][x2][x2][x2])
M.2 2230 E-Key x 1
M.2 3052 B-Key x 1
SIM Slot
MOUNTING Wallmount Wallmount Wallmount Wallmount
POWER 9~36V DC in 9~36V DC in 9~36V DC in 9~36V DC in
OPERATION TEMP -4°F ~ 158°F (-20°C ~ 70°C), according to IEC68-2 with 0.5 m/s AirFlow (w/ Industrial wide Temp. SSD/RAM) -4°F ~ 158°F (-20°C ~ 70°C), according to IEC68-2 with 0.5 m/s AirFlow (w/ Industrial wide Temp. SSD/RAM) -4°F ~ 158°F (-20°C ~ 70°C), according to IEC68-2 with 0.5 m/s AirFlow (w/ Industrial wide Temp. SSD/RAM) -4°F ~ 158°F (-20°C ~ 70°C), according to IEC68-2 with 0.5 m/s AirFlow (w/ Industrial wide Temp. SSD/RAM)
Incluído
  • Wallmount Bracket x 2
  • Screw Package x 1
  • 3 Pin DC-In Power Connector x 1
  • BOXER-6617-ADN

Opcionais
1255900849 12V 84W Power Adapter
1702031802 Power Cord (US Type)
1702031803 Power Cord (Europe)
170203180E Power Cord (Japan)
