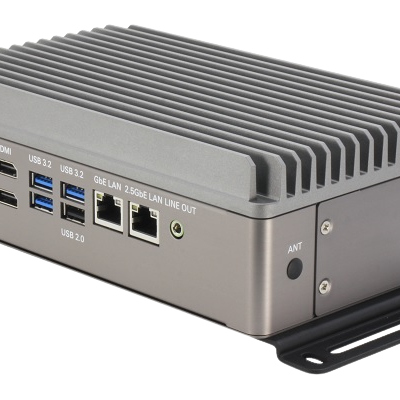

BOXER-6451-ADP
Box PC industrial com processador Intel® Core™ 12ª geração
- Compact Computer with 12th Gen Intel® Core™ Processors
- DDR4 SODIMM, Max. 32GB
- USB 3.2 Gen 2 x 3 (10Gbps) + USB 2.0 x 1
- 2.5GbE LAN x 1 (Intel® I226-LM) + GbE LAN x 1 (Intel® I219-LM)
- M.2 3052 B-Key for 5G Support
- Wide Operating Temperature
- Onboard TPM 2.0
The BOXER-6451-ADP is an exceptionally small, yet powerful fanless embedded PC powered by 12th Generation Intel® Core™/Celeron® processors (formerly Alder Lake-P U15). Channeling its high-level CPU capabilities through a fast, vast array of connectors for unmatched peripheral device function, the BOXER-6451-ADP is expertly designed for AMR, kiosk, and smart manufacturing applications. Designed with a new, innovative cooling structure, the BOXER-6451-ADP effortlessly accelerates heat transfer to facilitate heavier workloads. Additionally, the BOXER-6451-ADP gives users 5G, Wi-Fi, and NVMe functionality through the system’s unprecedented expandability, making it the perfect compact solution for bringing high performance to any project.
Small but Mighty
Measuring just 7.48" x 4.37" x 2.5" (190mm x 111mm x 63.5mm), the BOXER-6451-ADP offers superb performance in a smaller package, with up to 10 cores and 12 threads of 12th Generation Intel® Core™ processing power in a small chassis that can be deployed in more compact spaces, ideal for powering applications such as kiosks and charging stations.
Space-Efficient
A space-efficient design means the BOXER-6451-ADP can house a vast I/O to channel a greater volume of data, faster. Four COM ports with RS-232/422/485 support, three USB 3.2 running at 10Gbps, and one 2.5 GbE LAN port give the BOXER-6451-ADP the high-speed peripheral connectivity to drive AMR applications, bolstered by CPU-derived technologies such as Intel® IPU 6.0 and Intel® DL Boost.
Innovative Heat Dissipation
Smooth thermal dissipation is achieved via the BOXER-6451-ADP’s new, innovative cooling structure. The traditional tubular heat pipe used to conduct heat from the CPU to the heatsink has been flattened to both increase its conduction area and accelerate heat transfer. This in turn enables the fanless BOXER-6451-ADP to run heavier workloads without the risk of overheating.
More Expandability Than Ever Before
The BOXER-6451-ADP offers greater expandability to the BOXER-6400 series than ever before. Equipped with an M.2 2230 E-Key, M.2 3052 B-Key, and M.2 2280 M-Key; users are just one module away from incorporating 5G, Wi-Fi, or NVMe functionality to their project. As such, the BOXER-6451-ADP is functionally diverse, able to act as an AI-IoT gateway controller, robotic manufacturing arm, and more.
SYSTEM | |
CPU | Intel® Core™ i7-1265UE Intel® Core™ i5-1245UE Intel® Core™ i3-1215UE |
CHIPSET | Intel® SoC |
SYSTEM MEMORY | DDR4 SODIMM x1, up to 32GB |
DISPLAY INTERFACE | HDMI 1.4b x 2 (Type-A) |
STORAGE DEVICE | 2.5” SATA-III Drive Bay x1 M.2 2280 M Key x1 (PCIEx4) |
ETHERNET | RJ-45 x 1 for 2.5GbE (Intel® I226-LM) RJ-45 x 1 for GbE (Intel® I219-LM) |
I/O | USB 3.2 Gen 2 x 3 (Type-A) USB 2.0 x 1 (Type-A) DB-9 x 4 for RS-232/422/485 HDMI 1.4b x 2 (Type-A) Power Button x 1 DC Jack 12V Input Antenna Opening x 6 |
EXPANSION | M.2 2230 E-Key x 1 (Wi-Fi/BT) M.2 3052 B-Key w/ SIM x 1 (LTE/5G) M.2 2280 M-Key x 1 (NVMe) |
INDICATOR | Power Button with LED |
OS SUPPORT | Windows® 10 IoT Ent LTSC Windows® 11 PRO Ubuntu 22.04 |
POWER SUPPLY | |
POWER REQUIREMENT | DC-in 12V x 1 for Lockable DC Jack |
MECHANICAL | |
MOUNTING | Wallmount |
DIMENSIONS (W X H X D) | 7.68" x 4.37" x 2.5" (195mm x 111mm x 63.5mm) w/o bracket |
GROSS WEIGHT | 4.4 lb (2Kg) |
NET WEIGHT | 3.3 lb (1.5Kg) |
ENVIRONMENTAL | |
OPERATING TEMPERATURE | -4°F ~140°F (-20°C ~ 60°C), IEC68-2 with 0.5 m/s AirFlow with wide temperature Memory/Storage |
STORAGE TEMPERATURE | -40˚F ~ 176˚F (-40˚C ~ 80˚C) |
STORAGE HUMIDITY | 5 ~ 95% @ 40˚C, non-condensing |
ANTI-VIBRATION | SSD: Random, 3Grms, 5~500Hz |
ANTI-SHOCK | SSD: 50G @ wallmount, Half-sine, 11ms |
CERTIFICATION | CE/FCC class A |
Ordering Information [BOXER-6451-ADP]
PART NUMBER | BOXER-6451-ADP-A1-1010 | BOXER-6451-ADP-A2-1010 | BOXER-6451-ADP-A3-1010 |
---|---|---|---|
CPU | i3-1215UE | i5-1245UE | i7-1265UE |
PCH | SoC | SoC | SoC |
LAN | 2 | 2 | 2 |
USB | USB 3.2 x 3 (10Gbps) USB 2.0 x 1 |
USB 3.2 x 3 (10Gbps) USB 2.0 x 1 |
USB 3.2 x 3 (10Gbps) USB 2.0 x 1 |
RS-232/422/485 | 4 | 4 | 4 |
AUDIO | Line-out | Line-out | Line-out |
STORAGE | 2.5" SATA Drive Bay x 1 M.2 2280 M-Key x 1 (NVMe) |
2.5" SATA Drive Bay x 1 M.2 2280 M-Key x 1 (NVMe) |
2.5" SATA Drive Bay x 1 M.2 2280 M-Key x 1 (NVMe) |
DISPLAY | HDMI x 2 | HDMI x 2 | HDMI x 2 |
EXPANSION | M.2 2230 E-Key x 1 M.2 3052 B-Key w/ SIM Slot x 1 |
M.2 2230 E-Key x 1 M.2 3052 B-Key w/ SIM Slot x 1 |
M.2 2230 E-Key x 1 M.2 3052 B-Key w/ SIM Slot x 1 |
MOUNTING | Wallmount | Wallmount | Wallmount |
POWER | 12V | 12V | 12V |
OPERATION TEMP | -4°F ~ 140°F (-20°C ~ 60C) with 0.5 m/s airflow, with wide temperature Memory/Storage | -4°F ~ 140°F (-20°C ~ 60C) with 0.5 m/s airflow, with wide temperature Memory/Storage | -4°F ~ 140°F (-20°C ~ 60C) with 0.5 m/s airflow, with wide temperature Memory/Storage |
- Wallmount Bracket x2
- Screw Package x1
- 84W 12V Power Adapter
- BOXER-6451-ADP
1702031802 | Power Cord (US type) |
1702031803 | Power Cord (European Type) |
170203180E | Power Cord (Japanese Type) |
