Sku: BOXER-6615-A2-1010
Product Type:
PCs Industriais
Vendor:
AAEON

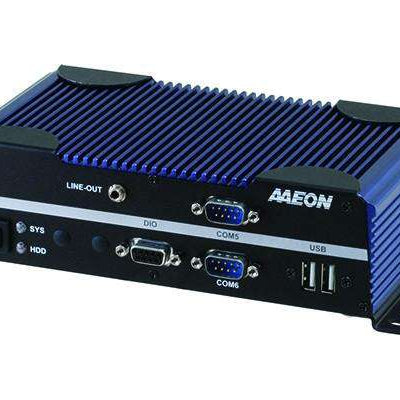

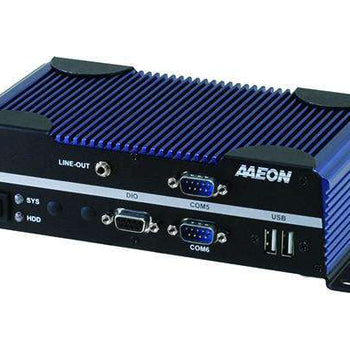

Fanless Embedded PC Fanless com o processador Quadcore Intel® Pentium® N3710 a 1.6 GHz.
Características Principais :
- Intel® Pentium® N3710 1.6GHz quad-core
- 6x COMs: 2 x RS232/422/485 + 4 x RS-232
- 2x USB 3.0 + 2x USB 2.0
- Suporta dupla visualização independente : VGA + HDMI Output
- Suporta 1x HDD / SSD 2.5", 1x mSATA
- 1x DIO 8 canais
- 1x SO-DIMM DDR3L 1600MHz até 8GB
- AAEON’s Hi-Safe
Especificações:
| Sistema | |
| CPU | Intel® Pentium® N3710 1.6GHz |
| Chipset | Intel® System on Chip |
| System Memory | 204-pin 1600 DDR3L SODIMM x 1, up to 8GB |
| Display Interface | VGA, HDMI |
| Storage Device | mSATA, 2.5" HDD/SSD |
| Ethernet | Realtek RTL-8111E, 10/100/1000Base x2 |
| I/O | RS-232/422/485 x 2 RS-232 x 4 USB3.0 x 2 USB2.0 x 2 VGA x 1 HDMI x 1 DIO x 1 Line-Out x 1 Antenna holes x 2 Power switch Power input |
| Expansion | Full-size Mini-Card x 1 Half-size Mini-Card x 1 (optional for mSATA) |
| Indicator | Power LED HDD active LED |
| OS support | Windows® 10, Windows® 8.1 (32/64-bit), Windows® 7(32/64-bit), WES7/WES8, Win10 IOT, Linux |
| power supply | |
| Power Requirement | 9 - 30V with 3-pin terminal block (A2M) 12V with lockable DC jack (A2) |
| mechanical | |
| Mounting | Wallmount DIN Rail (Mounting kit is optional) |
| Dimensions (W x H x D) | 197mm(W) x 55mm(H) x 110mm(D) |
| Gross Weight | 6.6 lb (2.8 kg) |
| Net Weight | 4.4 lb (2 kg) |
| environmental | |
| Operating Temperature | '-20°C ~ 60°C with W.T. SSD/HDD/mSATA (according to IEC68-2-14 with 0.5 m/s AirFlow ; with industrial devices) |
| Storage Temperature | -4°F ~ 158°F (-20°C ~ 70°C) |
| Storage Humidity | 95% @ 40°C, non-condensing |
| Anti-Vibration | 5 Grms/ 5 ~ 500Hz/ operation –mSATA/SSD 1 Grms/ 5~ 500Hz/ operation – HDD |
| Certification | CE/FCC class A |
Ordering Information [BOXER-6615]
| Part Number | BOXER- 6615-A2-1010 | BOXER-6615- A2M-1010 |
|---|---|---|
| cpu | Intel® Pentium® N3710 1.6GHz | Intel® Pentium® N3710 1.6GHz |
| ram | — | — |
| lan | 2 | 2 |
| usb 3.0 | 2 | 2 |
| usb 2.0 | 2 | 2 |
| rs- 232 | 4 | 4 |
| rs- 232/422/485 | 2 | 2 |
| dio | 8 bit | 8 bit |
| audio | Line-Out | Line-Out |
| storage | SATA 2.5” HDD bay x 1 mSATA x 1 (Optional) |
SATA 2.5” HDD bay x 1 mSATA x 1 (Optional) |
| display | VGA x 1 HDMI x 1 |
VGA x 1 HDMI x 1 |
| expansion | Full Size Mini-Card x 1 Half Size Mini-Card x 1 | Full Size Mini-Card x 1 Half Size Mini-Card x 1 |
| mounting | Wallmount Din Rail Mounting Kit (Optional) | Wallmount Din Rail Mounting Kit (Optional) |
| power | DC 12V | DC 9-30V |
| temp. | -20°C ~ 60°C with W.T. SSD/HDD/ mSATA (according to IEC68-2-14) |
-20°C ~ 60°C with W.T. SSD/HDD/ mSATA (according to IEC68-2-14) |
Packing List
- Wallmount Bracket x 2
- Screw Package x 1
- Product DVD x 1
- Phoenix Power Connector x 1 (For A2M, DC 9 ~30 V only)
- BOXER-6615
Optional Accessories
| 125530060A | DC Jack for 6615-A2, Power Adapter, AC, 100/240V, 12V/5A, 60W, W/ Lock |
| 1255900841 | 3 pin for 6615-A2M, Power Adapter, AC, 100/240V, 12V/7A, 84W |
| 1702031803 | Power Cord (European Type) |
