Sku: MB2-10ANS-N97
Product Type:
PCs Industriais
Vendor:
MiTAC
MB2-10ANS-N97
Fanless Embedded Box PC com Intel® Alder Lake-N N97
-
Processador Intel® Alder Lake-N N97 (4C) - Suporta 1 x DDR5 SO-DIMM (até 16 GB)
- HDMI, DisplayPort, 2 x LAN 2,5G
- 1 x M.2 B Key, 1 x M.2 M Key, 1 x M.2 E Key
-
Ampla gama de potência de 8 ~ 26 V
- Hailo-8™ AI Processor
- Suporta até 26 TOPs
- Suporta Hailo-8™ Software Development Kit
Caraterísticas
Especificações
Downloads
Caraterísticas
Equipado com CPU's Intel® Alder Lake-N Atom até 15W
Nova arquitetura para a série de CPU's Atom com melhor desempenho e maior versatilidade no panorama das aplicações
Suporta DDR5 SODIMM
Especificações
| Model | Processor | COM / GPIO | Operating Temperature | AC Adaptor |
|---|---|---|---|---|
| MB2-10ANS-N97 | N97 | 2 / None | -25 ~ 60°C | None |
| MB2-10ANS-N97-AC | N97 | 2 / None | -25 ~ 60°C | 60W AC to DC Adaptor |
| MB2-10ANS | |||
|---|---|---|---|
| SYSTEM | CPU | Intel® Alder Lake-N N97 (4C) / i3-N305 (8C8T) Processor | |
| CHIPSET | Intel® SoC Integrated | ||
| SYSTEM MEMORY | DDR5 4800 MHz / 1 x 262-pin SO-DIMM / Max. 16GB (Non-ECC) | ||
| GRAPHICS | Intel® UHD Graphics | ||
| DISPLAY INTERFACE | DisplayPort 1.4 / HDMI 1.4 | ||
| STORAGE SLOT | 1 x 2.5 HDD / SSD (Default w/ HDD Bracket) / 1 x M.2 2280 NVMe/SATA SSD / 1 x M.2 2242 SATA SSD | ||
| ETHERNET | 2 x Intel® I226-V 2.5G LAN | ||
| AUDIO | Realtek® ALC256 | ||
| I/O CHIPSET | Nuvoton NCT6126D | ||
| SIDE I/O | 8-bit GPIO in 10-pin Terminal Block Type connector (for i3-N305 SKU only) / 2 x SMA Antenna hole with rubber cap | ||
| TPM | Nuvoton NPCT760AABYX TPM2.0 | ||
| EXPANSION SLOT | Storage/LTE/5G Slot: 1 x M.2 2242/3042/3052 B Key (USB2.0/PCIeX1/SATAIII) / Storage: 1 x M.2 2280 M Key (PCIeX1/SATAIII) / Wireless: 1 x M.2 2230 E key (PCIeX1, USB2.0) | ||
| INTERNAL SPEAKER | 1 x Buzzer | ||
| INDICATOR | Power Button / Power LED / HDD LED | ||

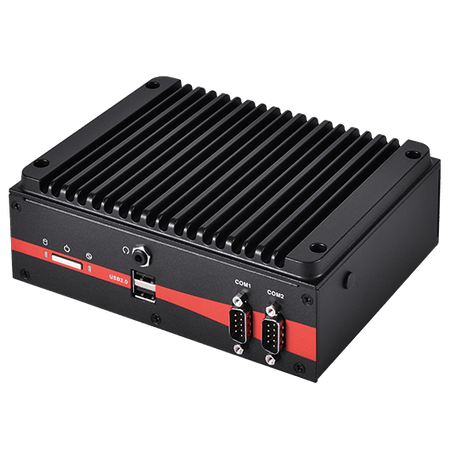

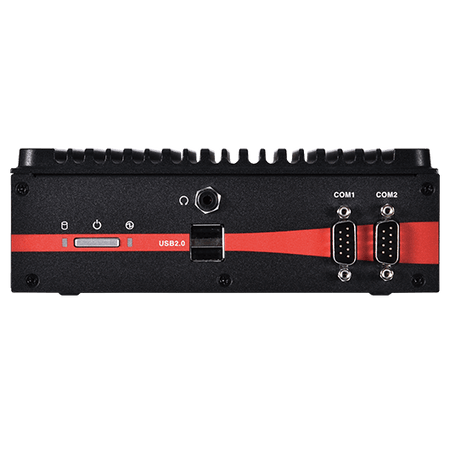

| FRONT I/O | 3 x RS232 (i3-N305 SKU) 、1 x RS232 (N97 SKU) / 2 x USB 2.0 / 1 x RS232 / 422 / 485 / 1 x Line-out |
||

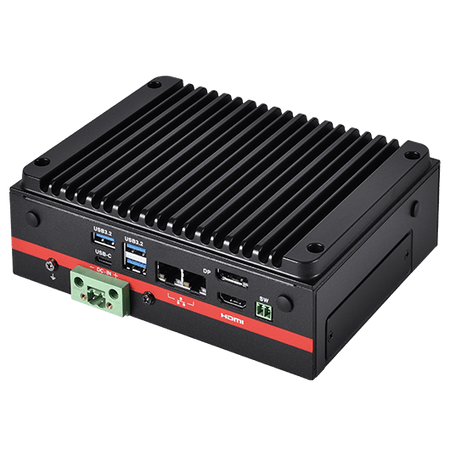

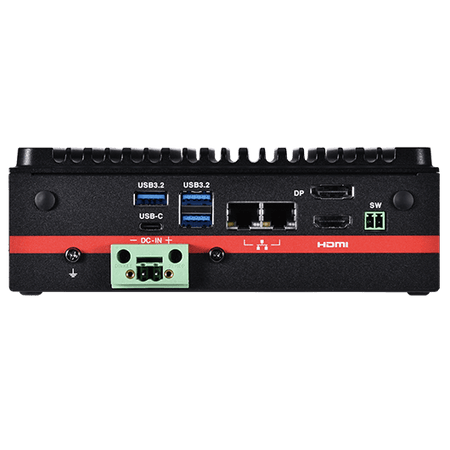

| REAR I/O | 1 x 2-pin Header Remote Power on / off / 1 x DP1.4 / 3 x USB 3.2 Gen2 Type A / 1 x USB Type C (Support PD15W, 5V/3A, DP Alt mode, USB3.2 Gen1) / 1 x 2-pin Terminal Block Power Input / 2 x SMA Antenna hole with rubber cap / 1 x HDMI 1.4 / 2 x RJ-45 |
||
| WATCHDOG TIMER | 1~255 steps by software program | ||
| POWER REQUIREMENT | POWER INPUT | 8~26V Wide Range DC Input w/ Terminal Block Connectivity | |
| POWER ADAPTER | Optional DC12V / 5A / AC / DC / 60W adapter (For AC SKU) | ||
| MECHANICAL | THERMAL DESIGN | Fanless | |
| MOUNTING | Wallmount / 75 mm x 75 mm VESA Holes & Din Rail Mount + Transfer Plate Combo Kit (Optional) | ||
| DIMENSIONS (W X D X H) | 6.7” x 5.2” x 2.2” (171 x 133 x 57 mm) | ||
| WEIGHT | 2.1kg (4.6 lb) | ||
| MATERIAL | Bezel and chassis: Steel / Top cover: Die casting | ||
| ENVIRONMENTAL | OPERATING TEMPERATURE | -25°C to 60°C / with 0.7m/s Air Flow and Wide Temperature Memory/Storage | |
| STORAGE TEMPERATURE | -40 ~ 85°C (-40 ~185°F) | ||
| OPERATING HUMIDITY | 10% ~ 90% R/H (Non-condensing) | ||
| STORAGE HUMIDITY | 10% ~ 95% @85°C non-condensing | ||
| VIBRATION RESISTANCE | Operating: 5Hz~500Hz / 2Grms / 3Axis (w/ SSD, according to IEC60068-2-64) | ||
| SHOCK RESISTANCE | Operating: 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | ||
| CERTIFICATION | CE / FCC Class A | ||
| OS | OS SUPPORT | Linux (support by request) / Windows® 10 64-bit / Windows® 11 64bit, | |
| PACKING LIST | PACKAGE | 1 x Quick Installation Guide / 1 x Embedded System / 1 x Wall Mount Brackets / 2 x 2 pin Terminal Block Power Connector / 1 x SATA and SATA power cable / 1 x 10-pin Terminal Block Male Connector (for i3-N305 SKU only) |
|
