• Tiger Lake Celeron 6305E
  • DDR4 SO-DIMM 32GB
  • 2* Intel® Gigabit Ethernet
  • Hot Swappable SSD/HDD
  • 8~24V DC Input
com IVA
713.40€

sem IVA
580.00€
Sku: MP1-11TGS-6305E-AC
Product Type: PCs com expansão PCIe / PCI
Vendor: MiTAC

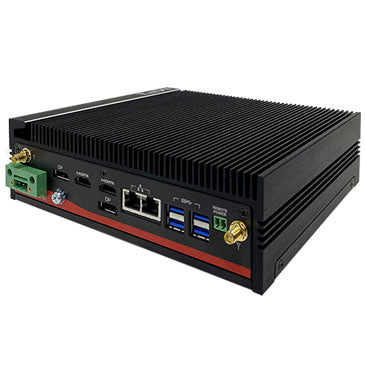

MP1-11TGS-6305E-AC

Embedded PC Fanless com CPU Intel® Tiger Lake-UP3 (até 4.4GHz)

  • CPUs Intel® Tiger Lake-UP3 Core i7/i5/i3/Celeron ULV
  • Suporta tecnologia Intel® vPro
  • 1* DDR4 SO-DIMM até 32GB
  • Suporta Quatro monitores via HDMI e DisplayPort
  • Slot Hot Swappable SSD/HDD
  • 2* Intel® Gigabit Ethernet (Opcional: mais 2 portas adicionais)
  • 2* USB 2.0, 4* USB 3.1 Gen2 e 4* COM
  • Ampla tensão de entrada: 8V~24V
TigerLake-UP3
MP1-11TGS-6305E-AC
Caraterísticas

MP1-11TGS

MP1-11TGS_IO
Especificações

MP1-11TGS (MP1-11TGS)

Ordering Information

Model Processor AC Adaptor Model Processor AC Adaptor
MP1-11TGS-6305E Celeron 6305E None MP1-11TGS-1145G7E i5-1145G7E None
MP1-11TGS-6305E-AC Celeron 6305E 72W AC to DC Adaptor MP1-11TGS-1145G7E-AC i5-1145G7E 72W AC to DC Adaptor
MP1-11TGS-1115G4E i3-1115G4E None MP1-11TGS-1185G7E i7-1185G7E None
MP1-11TGS-1115G4E-AC i3-1115G4E 72W AC to DC Adaptor MP1-11TGS-1185G7E-AC i7-1185G7E 72W AC to DC Adaptor
MP1-11TGS (MP1-11TGS) Specifications
SYSTEM   CPU 11st Gen Tiger Lake-UP3 Intel® Core™ i ULV Processor i3-1115G4E / (Dual Core, 6MB Cache, up to 3.90 GHz) / option: 11st Gen Tiger Lake-UP3 Celeron 6305E / i5-1145G7E / i7-1185G7E
  CHIPSET Intel® SoC Integrated
  SYSTEM MEMORY DDR4 3200 MHz / 1 x 260-pin SO-DIMM / Max. 32GB (Non-ECC)
  GRAPHICS Intel® HD Graphics
  DISPLAY INTERFACE HDMI 2.0b / DisplayPort 1.4
  STORAGE SLOT 1 x Hot Swappable 2.5 HDD / SSD / 1 x M.2 B Key 2280/2260/2242 Slot
  ETHERNET Intel® I219-LM Giga LAN / Intel® I225-LM 2.5GbE LAN / Additional 2 x Intel® I210-IT Giga LAN for Options
  AUDIO Realtek® ALC256
  I/O CHIPSET Nuvoton NCT6126D(eSPI)
  TPM Nuvoton NPCT750AABYX TPM2.0
  EXPANSION SLOT Storage/LTE/5G Slot: M.2 2280/2260/2242/3042/3052 B Key (USB2.0/*PCIex1/SATAIII) *Not support M.2 M Key NVMe SSD / Wireless: M.2 2230 E key (PCIe, USB)
  INDICATOR Power LED / HDD LED
  FRONT I/O 2 x SMA Antenna (Optional for WiFi/LTE function) / 3 x RS232 / 1 x Audio Combo Jack (Mic-in and Line-out) / 1 x Hot Swappable 2.5” SSD/HDD slot / 2 x USB 2.0 / 1 x RS232 / 422 / 485 / HDD LED / Power Button w/ Power Indicator
  REAR I/O 2 x HDMI 2.0b / 2 x DisplayPort 1.4 / 2 x RJ-45 / 4 x USB 3.1 Gen 2 (10 Gbps) / 1 x 3-pin Terminal Block Power Input / 1 x 2-pin Terminal Block Remote Power on / off / 2 x SMA Antenna (Optional for WiFi/LTE function)
  H/W MONITOR Temperature Monitor / Voltage Monitor
  WATCHDOG TIMER 1~255 steps by software program
POWER REQUIREMENT   POWER INPUT 8~24V Wide Range DC Input w/ Terminal Block Connectivity (Optional) / 8~24V Wide Range DC-in Jack Connectivity
  POWER ADAPTER DC24V / 3A / AC / DC / 72W adapter (For AC SKU)
MECHANICAL   THERMAL DESIGN Fanless
  MOUNTING Wallmount / Side Mount / 75 mm x 75 mm VESA Holes & Din Rail Mount Combo Kit (Optional)
  DIMENSIONS (W X D X H) 8.3” x 5.9” x 2.5” (210 x 150 x 63 mm)
  WEIGHT TBD
  MATERIAL Top cover: Aluminum Alloy / Bezel and chassis: Steel
ENVIRONMENTAL   OPERATING TEMPERATURE 15W TDP: -40 ~ 70°C with 0.7m/s Air Flow (w/ Extended Temp. SSD/mSATA/RAM) / 28W TDP: -40 ~ 60°C with 0.7m/s Air Flow (w/ Extended Temp. SSD/mSATA/RAM)
  STORAGE TEMPERATURE -40 ~ 85°C (-40 ~185°F)
  OPERATING HUMIDITY 10% ~ 95% R/H (Non-condensing)
  VIBRATION RESISTANCE Operating: 5Hz~500Hz / 5Grms / 3Axis (w/ SSD, according to IEC60068-2-64)
  SHOCK RESISTANCE Operating: 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
  CERTIFICATION CE / FCC Class A
OS   OS SUPPORT Windows® 10 64-bit / Linux (support by request)
PACKING LIST   PACKAGE 1 x Driver CD / 1 x Quick Installation Guide / 1 x Embedded System / 1 x Wall Mount Brackets / 1 x 3 pin Terminal Block Power Connector / 1 x SATA & SATA PWR Cable / 1 x 2 pin Terminal Block Male Connector
