Sku: Nuvo-5501
Product Type:
PCs com expansão PCIe / PCI
Vendor:
Neousys

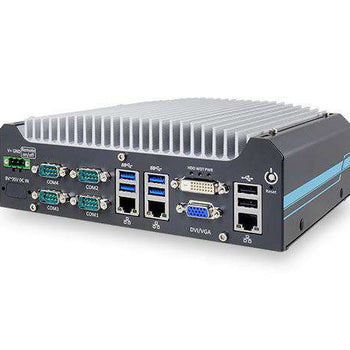

Intel® 6th-Gen Core™ i7/i5/i3 compact fanless rugged embedded computer with 3x GbE
- Compact 221 x 173 x 76 mm footprint
- Supports Intel® 6th-Gen Core™ i7/ i5/ i3 LGA 1151 socket CPU
- Rugged, -25°C to 70°C fanless operation
- 3x GbE and 4x USB 3.1 Gen1 ports
- 2x RS-232/ 422/ 485 ports and 2x RS-232 ports
- VGA + DVI dual display outputs
- Accommodates one 3.5" HDD or 2.5" HDD/ SSD
- Optional 8-CH isolated DI and 8-CH isolated DO
Caraterísticas
Especificações
Downloads
Opcionais
Caraterísticas
Nuvo-5501 series features compact fanless embedded computer for the cost and space conscious. Based on Intel® Skylake platform, it is designed to provide cutting-edge performance and reliable operation in extreme environment. Its LGA 1151 socket offers users the flexibility to select a 35W CPU from 6th-Gen Intel® Core™ i to Celeron® lineup to suit application needs.
Nuvo-5501 is the most compact fanless embedded controller supporting Skylake LGA 1151 socket CPUs, measuring just 221 x 173 x 76 mm, it is easy to deploy in restricted spaces. In its compact enclosure, Nuvo-5501 features rich, front-accessible I/Os including 3x GbE, 4x USB 3.1 Gen1 and 4x COM ports. There is even enough room for a 3.5” HDD compatible with the latest storage capacities.
The compact Nuvo-5501 is a cost-effective solution that does not compromise on performance and reliability, making it the ideal embedded controller for various industrial applications.
■ NEOUSYS MARKETING TEAM
Especificações
| System Core | |
|---|---|
| Processor | Supports following CPUs Intel® Core™ i7-6700TE (8M Cache, 2.4/ 3.4 GHz, 35W TDP) Intel® Core™ i5-6500TE (6M Cache, 2.3/ 3.3 GHz, 35W TDP) Intel® Core™ i3-6100TE (4M Cache, 2.7 GHz, 35W TDP) Intel® Pentium® G4400TE (3M Cache, 2.4 GHz, 35W TDP) Intel® Celeron® G3900TE (2M Cache, 2.3 GHz, 35W TDP) |
| Chipset | Intel® H110 platform controller hub |
| Graphics | Integrated Intel® HD 530/510 controller |
| Memory | Up to 16GB DDR4-2133 (single SO-DIMM) |
| I/O Interface | |
|---|---|
| Ethernet Port | 1x Gigabit Ethernet port (via Intel I219-LM) 2x Gigabit Ethernet port (via Intel I210-IT) |
| Video Port | 1x VGA connector 1x DVI-D connector |
| Serial Port | 2x software-programmable RS-232/ 422/ 485 ports 2x RS-232 ports |
| USB | 4x USB 3.1 Gen1 ports 2x USB2.0 ports |
| Isolated DIO | 8-CH isolated DI and 8-CH isolated DO (optional) |
| Storage interface | |
|---|---|
| SATA HDD | 1x internal SATA port for 3.5" HDD or 2.5" HDD/ SSD |
| mSATA | 1x full-size mSATA socket |
| Expansion Bus/ Internal I/O Interface | |
|---|---|
| mini-PCIe | 1x full-size mini PCI Express socket |
| M.2 | 1x M.2 B key socket for 3G/4G options with SIM socket |
| USB | 1x internal USB2.0 port |
| Remote Ctrl. & Status Output | 1x 2x6-pin 2.0mm pin-header connector for remote on/off control and status LED output |
| Power Supply | |
|---|---|
| DC Input | 1x 3-pin pluggable terminal block for 8~35 VDC power input |
| Mechanical | |
|---|---|
| Dimension | 221 x 173 x 76 mm |
| Weight | 2.8 kg (incl. CPU, memory and HDD) |
| Mounting | Wall-mount (standard) or DIN-rail mount (optional) |
| Environmental | |
|---|---|
| Operating temperature | -25°C ~ 70°C */** |
| Storage temperature | -40°C ~ 85°C |
| Humidity | 10%~90%, non-condensing |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) |
| Shock | Operating, 50 Grms, half-sine 11 ms duration (w/ SSD, according to IEC60068-2-27) |
| EMC | CE/FCC Class A, according to EN 55022, EN55032 & EN 55024 |
* The 100% CPU loading is applied using Passmark® BurnInTest 8.1. For detail testing criteria, please contact Neousys Technology.
**For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required
Downloads
Opcionais
Optional Accessories
DIN-rail mounting kit
120W AC/DC power adapter
