• Intel® Core™ i7-8565U
  • DDR4 SO-DIMM 64GB
  • 2x HDMI
  • 2x GbE LAN
  • Dimensões: 178 x 125 x 52.7mm
com IVA
1,168.50€

sem IVA
950.00€
Sku: QBiX-Pro-WHLA8565H-A2
Product Type: PCs Industriais
Vendor: GIGAIPC

Embedded PC Industrial com Intel® Core™ i7-8565U

  • System Size : 178W x 125D x 52.7H (mm)
  • Intel® Core™ i7-8565U Processor
  • Dual Channel DDR4, 2 x SO-DIMMs
  • 2 x HDMI,for Dual display
  • 2 x GbE LAN port

Aplicações
  • Embedded & Industrial Applications
  • Factory Automation
  • IoT System
  • KIOSK/POS
  • Healthcare
  • Gaming
QBiX-Pro-WHLA8565H-A2
Caraterísticas

QBiX Pro Series of GIGAIPC embedded system is implemented with GIGAIPC QBi Pro (3.5" SubCompact Board) . Its fan-less design reduces the risk of fan failure and maintainance efforts. The aluminium heatsink and ruggedized chassis enhanced the ability to work in harsh environment. The Compact size can easily be designed in any applications in limited space, such as factory automation, industrial controller / Surveillance systems and IoT Gateway. Furthermore, it can be a computing solution dedicated to thin client, POS, KIOSK for commercial market.

QBiX-Pro-WHLA8565H-A2 is powered by Intel® Core™i7-8565U Whiskey Lake Processor , to support Dual Channel DDR4 2400MHz up to 32G. It is designed with full range 9-36V DC power inputs for operating temperature of 0°C ~50°C. The system supports 2.5" HDD/SSD (SATA 6Gb/s) with vibration resistance of 5 Grms/5~500Hz and shock endurance to 50G/11ms, to meet industrial standard.
It's available with rich features of both HDMI & DP outputs, 3 x COM ports, 4 x USB 3.1 Gen2 and 2 x USB 2.0 ports to work with different peripherals of devices as line out headphone jack and M.2 2280 M-Key / 2230 E-Key for expansion.

QBiX-Pro-7200H_functions
Especificações
Dimension 178W x 125D x 52.7H(mm)
CPU Intel® Core™ i7-8565U Processor
14nm, 4 cores, 8 threads, up to 4.6 GHz
TDP 15W
Chipset SOC
Memory 2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual Channel DDR4 2400 MHz memory modules
Ethernet 2 x GbE LAN ports (Intel® i219V and Intel® i211AT)
Graphic Support Integrated Graphics Processor - Intel® UHD Graphics 620:
2 x HDMI 1.4 ports, supporting a maximum resolution of 4096x2160 @30Hz

(2 independent display outputs)
Audio Realtek ALC269
High Definition Audio
Storage 1 x 2.5” HDD/SSD (SATA 6Gb/s)
Expansion Slots 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module
Front I/O 2 x RJ45 LAN ports
4 x USB 3.1 Gen2
2 x HDMI
1 x Power button with LED
1 x HDD LED
1 x COM port (RS-232/422/485 and RI/5V/12V)

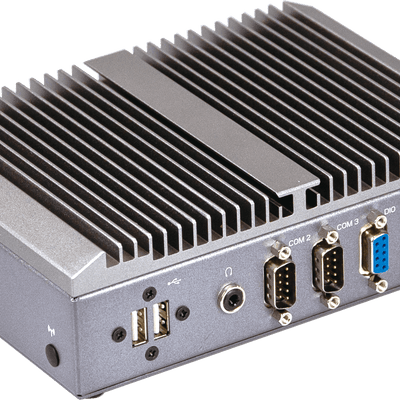

Rear I/O 2 x USB 2.0
2 x COM ports (RS-232)
1 x GPIO (8 bits)
1 x Headphone Jack
1 x Screw Type DC Jack
Side I/O 2 x External Antenna Hole (Optional)
Power +9~36VDC (Full Range)
(Adapter 19V/90W)
Operation Temperature Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packaging Content Box Packing Capacity: 5pcs
Carton size: 500x327x217(mm)
Content:
SCREW I HEAD FOR 25HDD M3x8L*4 (P/N: 25KSG-130081-K1R)
THERMAL PAD x 2 (P/N: 25ST3-200052-T5R)
THERMAL PAD x 1 (P/N: 25ST3-200051-T5R)
POWER CORD 3Cx18AWG SVT US x 1 (P/N: 25CP0-007001-Q0R)
PSU ADP 19V 90W 100-240VAC x 1 (P/N: 25EP4-10090A-F3S)
Order Information 6BQP8565AMR-SI (Box Packing)
