When it comes to automation, solutions don’t get more versatile than the new BOXER-6711-ADN. The compact embedded controller is flexibly deployed via DIN rail, and contains a wealth of high-speed interfaces strategically placed for optimum efficiency and longevity. The ultimate automation control solution, the BOXER-6711-ADN is also exceptionally rugged, with broad temperature and power input ranges, along with advanced power protection features to guarantee continual operation in even the toughest settings.
Integrating automation solutions can come with many challenges, particularly in environments with existing infrastructure that may, due to hardware restrictions, require additional renovation to accommodate new equipment. However, with its slim, vertical form factor measuring just 1.89’’ x 7.48’’ x 4.88’’ (48mm x 190mm x 124mm) and weighing just 3.5 lb., the BOXER-6711-ADN is easily deployed via DIN rail with just three screws, making it incredibly suitable for deployment anywhere, without hassle.

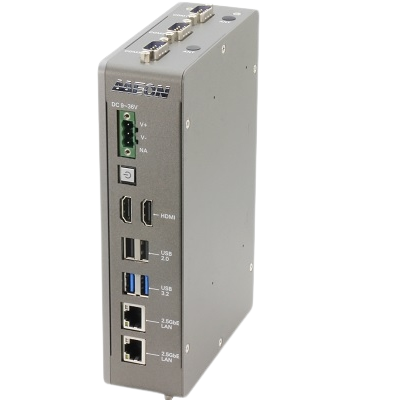

Equipped with all of the necessary features that machine maker applications need, the BOXER-6711-ADN is also designed to maintain connective stability via an industrial I/O layout. Built to be vertically installed, the BOXER-6711-ADN hosts three DB-9 ports (RS-232/422/485) along its top ridge, with a DB-15 port on its bottom ridge for DIO function. The PC’s side panel contains dual 2.5GbE LAN, dual USB 3.2 Gen 2, and dual HDMI to facilitate interaction with other devices, PLCs, or SCADA systems. To accommodate wireless communication and PCIe expansion modules, the system also offers M.2 M and E-Key slots, along with a full-size Mini Card and SIM slot.
The BOXER-6711-ADN stands out for its exceptional mechanical robustness, capable of reliable operation across a broad temperature spectrum of -20°C to 60°C, allowing users to utilize multiple storage, memory and wireless communication add-ons in demanding environments. Ensuring the integrity of crucial data, the system incorporates a broad 9V ~ 36V voltage input range with advanced safeguards against over/under-voltage currents and short-circuits, along with its fanless design, which protects against dust.
| SYSTEM | |
| CPU | Intel Atom® x7211E Intel® Processor N200 Intel® Processor N50 |
| CHIPSET | Intel® SoC |
| SYSTEM MEMORY | DDR5 4800 MT/s SO-DIMM slot x 1, up to 32GB |
| DISPLAY INTERFACE | HDMI x 2 |
| STORAGE DEVICE | M.2 2280 M-Key x 1 (PCIe [x2][x2]) M.2 2230 E-Key x 1 Full Size Mini Card x1 (PCIe + USB) SIM Slot x 1 |
| INDICATOR | － |
| OS SUPPORT | Windows® 10 IoT Enterprise Windows® 11 Pro Linux Ubuntu 22.04 |
| POWER SUPPLY | |
| POWER REQUIREMENT | DC-in 9-36V x1 for 3-pin Terminal Block |
| MECHANICAL | |
| MOUNTING | DIN Rail Mount |
| DIMENSIONS (W X H X D) | 1.89’’ x 7.48’’ x 4.88’’ (48mm x 190mm x 124mm) |
| GROSS WEIGHT | 3.50 lb (1.59 Kg) |
| NET WEIGHT | 2.40 lb (1.09 Kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C), according to IEC68-2 with 0.5 m/s AirFlow (w/ Industrial wide Temp. SSD/RAM) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| STORAGE HUMIDITY | 5 ~ 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 3 Grms/ 5 ~ 500Hz/ operation (with SSD) |
| ANTI-SHOCK | — |
| CERTIFICATION | CE/FCC class A |
| 1255900849 | 12V 84W Power Adapter |
| 1702031802 | Power Cord (US type) |
| 1702031803 | Power Cord (European Type) |
| 170203180E | Power Cord (Japanese Type) |
| 9741EG25G0 | 4G Module & Antenna (for global) |
