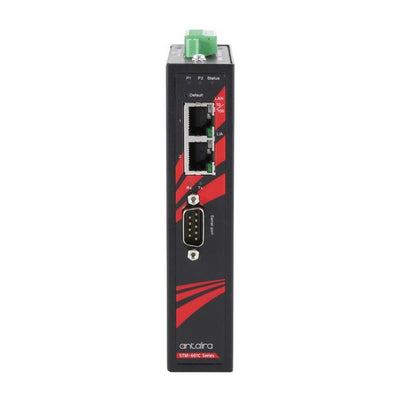

Antaira Technologies’ STM-601C-T is an industrial MODBUS gateway that allows legacy MODBUS RTU/ASCII devices to operate on a MODBUS TCP network. It can be configured as either MODBUS serial master or slave to communicate with MODBUS TCP’s slave or master. The STM-601C-T features two independent Ethernet ports and MAC addresses to provide redundancy and reliability. These devices provide an economical way of connecting MODBUS RTU/ASCII devices to networks accessible anywhere in the world.
| Humidity | 5% to 95%, (non-condensing) |
| Ethernet Port | 2 with independent IP and MAC addresses |
| Flow Control | XON/XOFF, RTS/CTS |
| Housing | Metal with solid mounting hardware |
| Input Voltage | 12 to 48VDC, Redundant Inputs |
| LED Indicators | Power, Ethernet Ports: Link / Act |
| Mounting | DIN-Rail, Wall Mounting |
| Operating Temperature | STD: -40° ~ 70°C |
| Storage Temperature | -40° ~ 85°C |
| Power Consumption | 3.2 W |
| Protocols | ICMP, IP, TCP, UDP, BOOTP, DHCP, Auto IP, SNMP, HTTP, DNS, SMTP, ARP, NTP |
| Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet |
| Warranty | 5 Years |
| Weight | 1.04 lbs (0.472 kg) |
