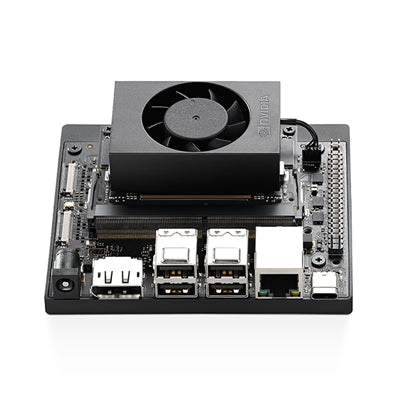

Developer Kit Content (P3766)
Jetson Orin Nano 8GB module with heat sink and reference carrier board
DC Power Supply
802.11ac/abgn wireless network interface controller
Quick Start Guide
Jetson Orin Nano 8GB Module
NVIDIA Ampere architecture with 1024 NVIDIA CUDA cores with 32 tensor cores
6-core Arm Cortex-A78AE v8.2 64-bit CPU
8GB 128-bit LPDDR5 68 GB/s
Supports for external NVMe
The NVIDIA Jetson Orin Nano Developer Kit sets a new standard for creating entry-level AI-powered robots, smart drones, and intelligent cameras, and simplifies getting started with the Jetson Orin Nano series. Compact design, lots of connectors and up to 40 TOPS of AI performance make this developer kit perfect for transforming your visionary concepts into reality. With up to 80X the performance of Jetson Nano, it can run all modern AI models, including transformer and advanced robotics models.
The developer kit comprises a Jetson Orin Nano 8GB module and a reference carrier board that can accommodate all Orin Nano and Orin NX modules, providing an ideal platform for prototyping your next-gen edge AI product. The Jetson Orin Nano 8GB module features an Ampere GPU and a 6-core ARM CPU, enabling multiple concurrent AI application pipelines and high-performance inference. The carrier board boasts a wide array of connectors, including two MIPI CSI connectors supporting camera modules with up to 4-lanes, allowing higher resolution and frame rate than before.
Jetson runs the NVIDIA AI software stack, with available use-case-specific application frameworks, including NVIDIA Isaac for robotics, Deep Stream for vision AI, and Riva for conversational AI. You can save significant time with NVIDIA Omniverse Replicator for synthetic data generation (SDG), and with NVIDIA TAO Toolkit for fine-tuning pretrained AI models from the NGCTM catalog.
Ecosystem partners offer additional AI and system software, developer tools, and custom software development. They can also help with cameras and other sensors, as well as carrier boards and design services for your product.
Jetson Orin modules are unmatched in performance and efficiency for robots and other autonomous machines, and give you the flexibility to create the next generation of AI solutions with the latest NVIDIA technology. Together with the world-standard NVIDIA AI software stack and an ecosystem of services and products, your route-to-market has never been faster.
Developer Kit Content (P3766) Jetson Orin Nano 8GB module with heat sink and reference carrier board DC Power Supply 802.11ac/abgn wireless network interface controller Quick Start Guide Jetson Orin Nano 8GB Module NVIDIA Ampere architecture with 1024 NVIDIA CUDA cores with 32 tensor cores 6-core Arm Cortex-A78AE v8.2 64-bit CPU 8GB 128-bit LPDDR5 68 GB/s Supports for external NVMe Reference carrier board 2x MIPI CSI-2 22-pin camera connectors 2x M.2 Key M, M.2 Key E 4x USB 3.2 Gen2 Type-A USB Type-C for UFP Gigabit Ethernet DisplayPort microSD slot 40-pin expansion header DC power jack |
| Reference Carrier Board | |
| Camera | 2x MIPI CSI-2 22-pin camera connectors PCIe |
| USB | USB Type-A connector: 4x USB 3.2 Gen2 USB Type-C connector for UFP |
| Networking | 1xGbE connector |
| Display | 1x DP 1.2 (+MST) connector |
| Other I/O | 40-pin expansion header (UART, SPI, I2S, I2C, GPIO) 12-pin button header 4-pin fan header microSD slot DC power jack |
| Mechanical | 100mm x 79mm x 21mm (Height includes feet, carrier board, module, and thermal solution) |
| Feature | Jetson AGX Xavier | Jetson Orin NX 8GB | Jetson Orin NX 16GB | Jetson AGX Orin 32GB | Jetson AGX Orin 64GB |
|---|---|---|---|---|---|
| AI Performance | 32 TOPS | 70 TOPS | 100 TOPS | 200 TOPS | 275 TOPS |
| GPU | 512 Core Volta, with 64 Tensor Cores | 1024 Core Ampere, with 32 Tensor Cores | 1024 Core Ampere, with 32 Tensor Cores | 1792 Core Ampere, with 56 Tensor Cores | 2048 Core Ampere, with 64 Tensor Cores |
| DL Accelerator | (2x) NVDLA | (1x) NVDLA V2.0 | (2x) NVDLA V2.0 | (2x) NVDLA V2.0 | (2x) NVDLA V2.0 |
| Vision Accelerator | (2x) 7-way VLIW Processor | PVA v2.0 | PVA v2.0 | (2x) 7-way VLIW Processor | (2x) 7-way VLIW Processor |
| CPU | 8 core Carmel ARM CPU 2MB L2 + 4MB L3 |
6-core Arm Cortex-A78AE 1.5MB L2 + 4MB L3 |
8-core Arm Cortex-A78AE 2MB L2 + 4MB L3 |
8 core Arm Cortex-A78AE 2MB L2 + 4MB L3 |
12 core Arm Cortex-A78AE 3MB L2 + 6MB L3 |
| Memory | 16GB 256-bit LPDDR4x @ 2133MHz 137 GB/s |
8GB 128-bit LPDDR5 @ 2133 HMz 102.4 GB/s |
16GB 128-bit LPDDR5 @ 2133 HMz 102.4 GB/s |
32GB 256-bit LPDDR5 @ 2133MHz 205 GB/s |
64GB 256-bit LPDDR5 @ 2133MHz 205 GB/s |
| Storage | 32GB/64GB eMMC | Supports external NVMe | Supports external NVMe | 64GB eMMC | 64GB eMMC |
| Video Encode | 2x8K @30 | 6x4K @60 | 12x4K @30 | 26x1080p @60 | 52x1080p @30 (HEVC) | 30x1080p @30 (H.264) | 1x 4K60 | 3x 4K30| 6x 1080p60 | 12x 1080p30 (H.265), H.264, H.265, AV1 | 1x 4K60 | 3x 4K30| 6x 1080p60 | 12x 1080p30 (H.265), H.264, H.265, AV1 | 1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) H.264, AV1 | 2x 4K60 | 4x 4K30 | 8x 1080p60 | 16x 1080p30 (H.265) H.264, AV1 |
| Video Decode | (2x) 8Kp30 / (6x) 4Kp60 | 1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60 | 18x 1080p30 (H.265) H.264, H.265, VP9, AV1 |
1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60 | 18x 1080p30 (H.265) H.264, H.265, VP9, AV1 |
1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60| 18x 1080p30 (H.265) H.264, VP9, AV1 | 1x 8K30 | 3x 4K60 | 7x 4K30 | 11x 1080p60| 22x 1080p30 (H.265) H.264, VP9, AV1 |
| Camera | 16 lanes MIPI CSI-2 | 8 lanes SLVS-EC D-PHY 40Gbps / C-PHY 109Gbps |
Up to 4 cameras (8 via virtual channels*) 8 lanes MIPI CSI-2 D-PHY 1.2 (20 Gbps) |
Up to 4 cameras (8 via virtual channels*) 8 lanes MIPI CSI-2 D-PHY 1.2 (20 Gbps) |
16 lane MIPI CSI-2 connector | 16 lane MIPI CSI-2 connector |
| PCI Express | 16 lanes PCIe Gen 4 1x8 + 1x4 + 1x2 + 2x1 |
3 x1 + 1 (x4 PCIe Gen 4) | 3 x1 + 1 (x4 PCIe Gen 4) | Up to 2 x8, 1 x4, 2 x1 (PCIe Gen4, Root Port & Endpoint) | Up to 2 x8, 1 x4, 2 x1 (PCIe Gen4, Root Port & Endpoint) |
| Mechanical | 100mm x 87mm 699 pin connector |
69.6mm x 45mm 260-pin connector |
69.6mm x 45mm 260-pin connector |
100mm x 87mm 699 pin connector |
100mm x 87mm 699 pin connector |
| Power | 10W / 15W / 30W | 10W / 15W / 20W | 10W / 15W / 25W | 15W - 40W | 15W - 60W |
