Sku: ME1-8MQ-4G32G
Product Type: PCs Industriais
Vendor: MiTAC

ME1-108T

Embedded PC Fanless com processador NXP® i.MX8M Dual

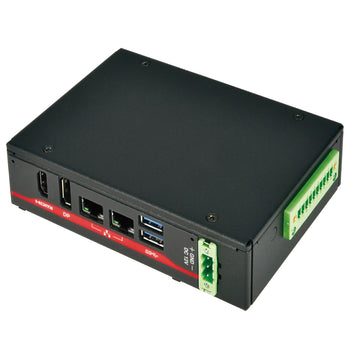

MiTAC's ME1-108T box pc is a fanless industrial embedded system with NXP ARM-based i.MX8M Dual core/ Quad core high-performance processors inside.
The ME1-108T is in a 0.55 liter compact size design but still equips multiple high resolution display, high expansion slot, high-speed I/O and complete software BSP support.

All of this is aiming to help you enable your IoT internet-connected applications everywhere with more cost efficient budget but less power consumption device.

ME1-108T_specs
Caraterísticas

Conectores I/O

ME1-108T_IO

Dimensões

ME1-108T_dimension
Especificações
Model Processor DDR4 eMMC Display LAN COM
ME1-8MQ-4G32G I.MX8M Quad Core 4GB 32GB HDMI + DisplayPort 2 1

Optional Development Kit

Optional Kit Specification
USB OTG Programming Cable Micro USB Connector, Cable Length: 500mm
UART Debugging Kit Debugging Board + Cable to Motherboard
ME1-108T (ME1-108T) Specifications
SYSTEM   CPU NXP® i.MX8M Family - 8M Quad (4 x Cortex-A53 @ 1.3GHz) - 8M Dual (2 x Cortex-A53 @ 1.3GHz)
  CHIPSET i.MX8M SoC Integrated
  SYSTEM MEMORY LPDDR4 Onboard Memory with Options: 1GB (1200MHz), 2GB (1600MHz), 4GB (1600MHz)
  GRAPHICS I.MX8 Integrated
  STORAGE 1 x Micro SD card slot (Up to 256GB) / Onboard eMMC with Options for 8GB / 16GB / 32GB
  ETHERNET 1 x Realtek® RTL8111H Giga LAN / 1 x Realtek® RTL8211FD Giga LAN
  AUDIO Realtek® ALC5660
  SIDE I/O 1 x Micro SD/SIM card slot / 1 x GPIO 10-pin (4in/4out/5V/GND, Terminal Block)
  EXPANSION SLOT Mini PCIe Full / Half size (PCIe / USB)
  INDICATOR Power Button / Power LED
  FRONT I/O 1 x USB 2.0 / 1 x RS232 / 422 / 485
  REAR I/O 1 x HDMI 2.0 / 1 x DisplayPort 1.2 / 2 x RJ-45 / 2 x USB 3.0 / 1 x 3-pin Terminal Block Power Input
POWER REQUIREMENT   POWER ADAPTER DC12V / 3A / 36W adapter
ENVIRONMENTAL   OPERATING TEMPERATURE 0 ~ 55°C (32 ~131°F)
  STORAGE TEMPERATURE -20 ~ 70°C (-4 ~158°F)
  OPERATING HUMIDITY 10% ~ 90% R/H (Non-condensing)
  STORAGE HUMIDITY 10% ~ 95% @85°C non-condensing
  CERTIFICATION CE / FCC Class B
MECHANICAL   ANTENNA 2 x SMA Antenna (Optional for WiFi / LTE function)
  THERMAL DESIGN Fanless & Ventless
  MOUNTING Wallmount / VESA Mount (75 x 75mm) 2-in-1 Bracket
  DIMENSIONS (W X D X H) 140 x 100 x 38.75mm
  MATERIAL Enclosure: Sheet Metal
OS   OS SUPPORT Yocto Sumo (Kernel version 4.14.98) BSP Support / Android 9 Pie (Kernel version 4.14.98) BSP Support / (Remark: Android is suggested for 4G memory MB SKU)
PACKING LIST   PACKAGE 1 x Quick Installation Guide / 1 x Embedded System / 1 x Wall Mount Brackets / 1 x 10P terminal blcok male plug
