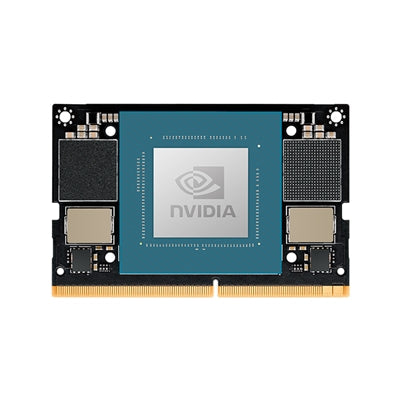

The NVIDIA Jetson Orin Nano 4GB module delivers up to 20 TOPS of AI performance in the smallest Jetson form-factor, with power configurable from 5W to10W. This gives you up to 40X the performance of NVIDIA Jetson Nano and extends the reach of entry-level Edge AI.
This system-on-module is pin-compatible with Jetson Orin NX, and supports multiple concurrent AI application pipelines with high-speed IO and an NVIDIA Ampere architecture GPU. This enables lower-priced consumer, retail analytics, and industrial QA devices to benefit from more complex AI models.
Jetson runs the NVIDIA AI software stack, and use-case specific application frameworks are available, including Isaac for robotics, Deep Stream for vision AI, and Riva for conversational AI. You can save significant time with NVIDIA Omniverse Replicator for synthetic data generation (SDG), and by using NVIDIA TAO toolkit to fine-tune pretrained AI models from the NGC catalog.
Jetson ecosystem partners offer additional AI and system software, developer tools, and custom software development. They can also help with cameras and other sensors, as well as carrier boards and design services for your product.
Jetson Orin modules are unmatched in performance and efficiency for robots and other autonomous machines, and they give you the flexibility to create the next generation of AI solutions with the latest NVIDIA GPU technology. Together with the world-standard NVIDIA AI software stack and an ecosystem of services and products, your route-to-market has never been faster.
Learn more at www.nvidia.com/JetsonAGXOrin
| Feature | Jetson AGX Xavier | Jetson Orin NX 8GB (coming soon) | Jetson Orin NX 16GB | Jetson AGX Orin 32GB | Jetson AGX Orin 64GB |
|---|---|---|---|---|---|
| AI Performance | 32 TOPS | 70 TOPS | 100 TOPS | 200 TOPS | 275 TOPS |
| GPU | 512 Core Volta, with 64 Tensor Cores | 1024 Core Ampere, with 32 Tensor Cores | 1024 Core Ampere, with 32 Tensor Cores | 1792 Core Ampere, with 56 Tensor Cores | 2048 Core Ampere, with 64 Tensor Cores |
| DL Accelerator | (2x) NVDLA | (1x) NVDLA V2.0 | (2x) NVDLA V2.0 | (2x) NVDLA V2.0 | (2x) NVDLA V2.0 |
| Vision Accelerator | (2x) 7-way VLIW Processor | PVA v2.0 | PVA v2.0 | (2x) 7-way VLIW Processor | (2x) 7-way VLIW Processor |
| CPU | 8 core Carmel ARM CPU 2MB L2 + 4MB L3 |
6-core Arm Cortex-A78AE 1.5MB L2 + 4MB L3 |
8-core Arm Cortex-A78AE 2MB L2 + 4MB L3 |
8 core Arm Cortex-A78AE 2MB L2 + 4MB L3 |
12 core Arm Cortex-A78AE 3MB L2 + 6MB L3 |
| Memory | 16GB 256-bit LPDDR4x @ 2133MHz 137 GB/s |
8GB 128-bit LPDDR5 @ 2133 HMz 102.4 GB/s |
16GB 128-bit LPDDR5 @ 2133 HMz 102.4 GB/s |
32GB 256-bit LPDDR5 @ 2133MHz 205 GB/s |
64GB 256-bit LPDDR5 @ 2133MHz 205 GB/s |
| Storage | 32GB/64GB eMMC | Supports external NVMe | Supports external NVMe | 64GB eMMC | 64GB eMMC |
| Video Encode | 2x8K @30 | 6x4K @60 | 12x4K @30 | 26x1080p @60 | 52x1080p @30 (HEVC) | 30x1080p @30 (H.264) | 1x 4K60 | 3x 4K30| 6x 1080p60 | 12x 1080p30 (H.265), H.264, H.265, AV1 | 1x 4K60 | 3x 4K30| 6x 1080p60 | 12x 1080p30 (H.265), H.264, H.265, AV1 | 1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) H.264, AV1 | 2x 4K60 | 4x 4K30 | 8x 1080p60 | 16x 1080p30 (H.265) H.264, AV1 |
| Video Decode | (2x) 8Kp30 / (6x) 4Kp60 | 1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60 | 18x 1080p30 (H.265) H.264, H.265, VP9, AV1 |
1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60 | 18x 1080p30 (H.265) H.264, H.265, VP9, AV1 |
1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60| 18x 1080p30 (H.265) H.264, VP9, AV1 | 1x 8K30 | 3x 4K60 | 7x 4K30 | 11x 1080p60| 22x 1080p30 (H.265) H.264, VP9, AV1 |
| Camera | 16 lanes MIPI CSI-2 | 8 lanes SLVS-EC D-PHY 40Gbps / C-PHY 109Gbps |
Up to 4 cameras (8 via virtual channels*) 8 lanes MIPI CSI-2 D-PHY 1.2 (20 Gbps) |
Up to 4 cameras (8 via virtual channels*) 8 lanes MIPI CSI-2 D-PHY 1.2 (20 Gbps) |
16 lane MIPI CSI-2 connector | 16 lane MIPI CSI-2 connector |
| Mechanical | 100mm x 87mm 699 pin connector |
69.6mm x 45mm 260-pin connector |
69.6mm x 45mm 260-pin connector |
100mm x 87mm 699 pin connector |
100mm x 87mm 699 pin connector |
| Power | 10W / 15W / 30W | 10W / 15W / 20W | 10W / 15W / 25W | 15W - 40W | 15W - 60W |
| AI Performance | 20 TOPS |
| GPU | 512-core NVIDIA Ampere architecture GPU with 16 tensor cores |
| Max GPU Freq. |
625MHz |
| CPU | 6-core Arm Cortex-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
| CPU Max Freq. | 1.5GHz |
| Memory | 4GB 64-bit LPDDR5 34GB/s |
| Storage | (Supports external NVMe) |
| Camera | Up to 4 cameras (8 via virtual channels*) 8 MIPI CSI-2 lanes D-PHY 2.1 (up to 20Gbps) |
| Video Encode | 1080p30 supported by 1-2 CPU cores |
| Video Decode | 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
| PCIe | 1 x4 + 3 x1 (PCIe Gen3, Root Port, and Endpoint) |
| USB | 3x USB 3.2 Gen2 (10Gbps) 3x USB 2.0 |
| Networking | 1x GbE |
| Display | 1x 4K30 multi-mode DP 1.2 (+MST)/eDP 1.4/HDMI 1.4 |
| Other I/O | 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs |
| Power | 7W - 10W |
| Mechanical | 69.6mm x 45mm 260-pin SO-DIMM connector |
