Sku: HPC-133
Product Type:
Panel-PC Embedded
Vendor:
Jetway

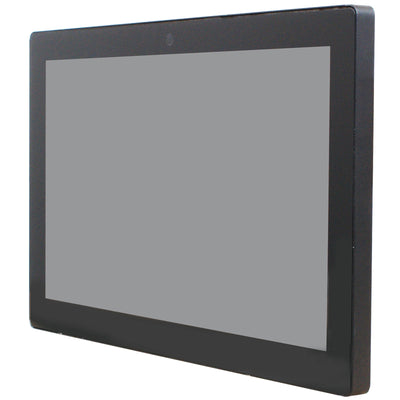

Panel PC 13.3″ Rock Chip® ARM Cortex A17 RK3288 Quad Core 1.8GHz
TFT 13.3” 300 nits LCD com LED backlight
2GB DDR3L 1333 DRAM onboard
8G Flash ROM onboard
Suporta Android 5.1 / 9.0 ou Debian 9.0
Proteção IP65 frontal contra poeiras e salpicos
12V DC-in
Diagrama
Especificações
Downloads
Opcionais
Diagrama
Conectores
Dimensões
Especificações
Model |
HPC-133 |
HPC-P133 |
Display | ||
Front Bezel |
– IP65, NEMA 4 rugged protection, metal front bezel |
|
Display Type |
– 13.3″ With LED Backlight |
|
Brightness (cd/m²) |
– 300 nits |
|
Display Color |
– 262K |
|
Resolution |
– 1920 x 1080 @ 60Hz resolution |
|
Viewing Angle (H/V) |
– 170°/170° |
|
Pixel Pitch |
– 0.153 x 0.153mm mm |
|
Aspect Ratio |
– 16:10 |
|
Contrast Ratio |
– 800:1 |
|
Response Time |
– 35 ms |
|
Touch Screen | ||
Type |
– Projected capacitive type |
|
Active Range |
– 355.0 x 197.0mm ±0.3mm |
|
Transparency |
– ≧ 85% |
|
Surface Hardness |
– ≧ 6H (ASTM D3363, pressure 1N/45°) |
|
Operating Force |
– ≦ 50g |
|
Case | ||
Panel Material |
– Aluminum |
|
Case Material |
– Iron |
|
Color |
– Black |
|
Coating Requirement |
– Spray Paint |
|
Main System | ||
CPU |
– Rockchip® ARM Cortex A17 1.8GHz/QC processor |
|
RAM |
– Onboard 1333/2GB DDR3L DRAM |
|
Flash ROM |
– Onboard 8G Flash ROM |
|
Watchdog Timer |
– 256 levels, 0~255 sec. |
|
Speaker |
– 2* 2W/8Ohm |
|
Camera |
– 1* 500W USB (Option) |
|
OS Support |
– Android 5.1/9.0 or Debian 9.0 |
|
Expansion | ||
Expansion |
– 1* Micro SD socket |
|
PoE | ||
Regulatory Compliance |
– N/A |
– IEEE802.3af (PoE) |
Input Power |
– N/A |
– 44~57V input |
Pass Through Data Rates |
– N/A |
– 10/100/1000 Mbps |
Power Consumption |
– N/A |
– 12.5W |
I/O Connector | ||
I/O Connector |
– 2* USB2.0 (USB1 Co-lay OTG) |
|
– 1* RJ45 |
– 1* PoE PD |
|
Power Input | ||
Power Input |
– 12V DC-in |
– 44~57V input |
Power Consumption | ||
Power Consumption |
– 12.5W |
|
Dimensions | ||
Case Dimensions |
– 337.8 * 211.4 * 39.0mm |
|
Compliance | ||
Compliance |
– CE, FCC, IP65(Front)-Option |
|
Environment | ||
Temperature |
– Operating Temperature: -10 ~ 50° C |
|
Safety | ||
Shock |
– 15G, 11ms duration |
|
Vibration |
– 5~500Hz/1 Grms |
|
Warranty | ||
Warranty |
– 2 Years Limited Warranty (Panel and Touch is only Warranty 1 Year) |
|
* Specifications subject to change without notice, not responsible for typographical errors. Does not include HDD or OS.
Downloads
Opcionais
Part Number |
Description |
Part Number |
Description |
HPC-133 /HPC-P133 |
|
40W AC‐DC Adapter (for HPC-133) |
|
Change according to shipping area |
Power cord (for HPC-133) |
|
WIFI Antenna |
