• Rockchip® ARM Cortex A17
  • 2GB DDR3 / 8GB EMMC Flash
  • 10.1" Capacitive Touch Panel
  • IP65 / 9-36VDC
  • Android 5.1/9.0 ou Debian 9.0
com IVA
633.45€

sem IVA
515.00€
Sku: HPC-WV101
Product Type: Panel-PC Embedded
Vendor: Jetway

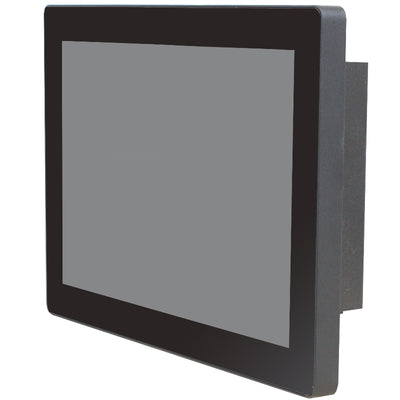

Panel PC 10.1″ Rock Chip® ARM Cortex A17 RK3288 Quad Core 1.8GHz, 9~36V DC-in.

  • TFT 10.1” 350 nits LCD com LED backlight

  • 2GB DDR3L 1333 DRAM onboard

  • 8G Flash ROM onboard

  • Suporta Android 5.1 / 9.0 ou Debian 9.0

  • Proteção IP65 frontal contra poeiras e salpicos

  • 9~36V DC-in

Diagrama

Conectores

HPC-WV101_IO_diagram

Dimensões

HPC-WV101_Size-1400x698
Especificações

Display

– IP65, NEMA 4 rugged protection, metal front bezel
– 10.1″ With LED Backlight
– 350 nits Brightness (cd/m²)
– 262K display color
– 1280 x 800 @ 60Hz resolution
– 160°/160° viewing angle (H/V)
– 0.1695 x 0.1695mm pixel pitch
– 16:10 aspect ratio
– 600:1 contrast ratio
– 25ms response time

Touch Screen

– Projected capacitive type
– 257.10 x 159.66mm ±0.2mm active range
– Transparency ≧ 87%
– Operating force ≦ 80g
– Surface Hardness ≧ 6H (ASTM D3363, pressure 1N/45°)

Case

– Aluminum panel
– Iron case
– Black color
– Spray paint coating requirement

Main System

– Rockchip® ARM Cortex A17 1.8GHz/QC processor
– Onboard 1333/2GB DDR3L DRAM
– Onboard 8G Flash ROM
– Watchdog Timer 256 levels, 0~255 sec.
– Speaker: 2* 2W/8Ohm
– Camera: 1* 500W USB (Option)
– OS Support Android 5.1/9.0 or Debian 9.0
– Power Consumption: 8.5W

Expansion

– 1* Micro SD socket

I/O Connector

– 2* USB2.0 (USB1 Co-lay OTG)
– 1* HDMI 1.4
– 1* AUDIO(Line-out +MIC)
– 1* Micro SD Socket
– 1* Power Button
– 1* GbE
– 1* 9~36V DC jack

Power Input

– 9~36V DC-in

Dimensions

– 259.3 * 177.3 * 39.0mm

Compliance

– CE, FCC, IP65(Front)-Option

Safety

– Shock: 15G, 11ms duration
– Vibration: 5~500Hz/1 Grms

Temperature

– Operating: -10°C ~ 50°C
– Storage: -20°C ~ 60°C

Warranty

– 2 Years Limited Warranty (Panel and Touch are only 1 Year Warranty)

  * Specifications subject to change without notice, not responsible for typographical errors. Does not include HDD or OS.

Downloads
Opcionais

Part Number

  Description

  Part Number

  Description



 HPC-WV101



40W AC‐DC Adapter

 Change according to shipping area

 Power cord



 WIFI Antenna
