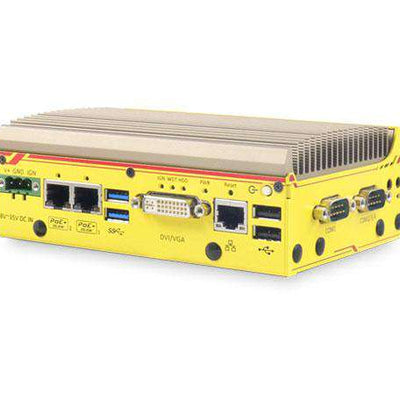

POC-351VTC

Intel® Atom™ E3950 Apollo Lake ultra-compact fanless in-vehicle communication gateway controller with GbE, PoE+ & Isolated CAN

  • Intel® Apollo Lake Atom™ E3950 quad-core processor
  • Rugged, -25 °C to 70 °C fanless operation
  • Two IEEE 802.3at PoE+ ports and one GbE port
  • One isolated CAN port for in-vehicle communication
  • One M.2 socket and three mini-PCIe sockets
  • Aluminum heat-spreader for M.2/ mPCIe modules
  • 4-CH isolated DI and 4-CH isolated DO
  • 8~35V DC input with built-in ignition power control
Vista Rápida

POC-351VTC is an ultra-compact, fanless embedded in-vehicle controller powered by Intel® Atom™ Apollo Lake E3950 quad-core processor. It combines finesse performance, extraordinary reliability and affordable cost for versatile in-vehicle applications.

POC-351VTC offers two PoE+ ports to power devices such as IP cameras, and one additional GbE port for data communication. It also features isolated CAN 2.0 port and RS-232/ 422/ 485 ports for communicating with vehicle CAN bus system, individual ECUs or other automotive devices. Wide-range DC input and ignition power control make POC-351VTC fit for most vehicle categories.

Wireless and internet access is essential for modern day in-vehicle applications. POC-351VTC has a total of four M.2/ mPCIe sockets and six antenna holes to accommodate a variety of 4G, 3G, WIFI and GPS modules to satisfy in-vehicle and V2V(vehicle to vehicle) communications. An aluminum heat-spreader is thoughtfully designed to dissipate heat generated by modules to maintain superior operating stability, for the system and communication modules.

■ NEOUSYS MARKETING TEAM

POC-351VTC_explore
Especificações
System Core
Processor Intel® Atom™ E3950 1.6/2.0 GHz quad-core processor
Graphics Integrated Intel® HD Graphics 505
Memory Up to 8GB DDR3L-1866 (single SO-DIMM slot)
Panel I/O Interface
Ethernet 3x Gigabit Ethernet ports by Intel® I210 GbE controller
POE IEEE 802.3at PoE+ on port #2 and #3
Video Port VGA and DVI dual display outputs via DVI-I connector
Serial Port 1x Software-programmable RS-232/422/485 ports (COM1)
3x 3-wire RS-232 ports (COM2/COM3/COM4) or 1x RS-422/485 port (COM2)
USB 2x USB 3.1 Gen1 ports
2x USB 2.0 ports
Audio 1x Mic-in and 1x speaker-out
CAN Bus 1x isolated CAN 2.0 port
Isolated DIO 4x isolated DI and 4x isolated DO
Internal I/O Interface
M.2 1x M.2 B key socket for 3G/4G option with USIM support
Mini-PCIe 3x full-size mini PCI Express sockets with USIM support
Storage Interface
mSATA 1x half-size mSATA port
1x full-size mSATA port
Power Supply
DC Input 8~35 VDC DC input
Input Connector 3-pin pluggable terminal block for DC input (IGN/GND/V+)
Mechanical
Dimension 153 mm (W) x 108 mm (D) x 56 mm (H) (POC-351VTC)
153 mm (W) x 108 mm (D) x 68 mm (H) (POC-351VTC-70)
Weight 1.0 kg (POC-351VTC)
1.1 kg (POC-351VTC-70)
Mounting Horizontal wall-mount (standard)
Vertical wall-mount (optional)
Environmental
Operating Temperature -25°C ~ 70°C */**
-40°C ~ 70°C (optional) */***
Storage Temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ mSATA, according to IEC60068-2-64)
Shock Operating, 50 Grms, Half-sine 11 ms Duration (w/ mSATA, according to IEC60068-2-27)
EMC E-Mark for in-vehicle applications
CE/FCC Class A, according to EN 55032 & EN 55024
■ Date last revised: Jul. 10, 2018

* For wide temperature use condition, a wide temperature/industrial mSATA module is required
** For full function use condition (mini-PCIe, M.2, and mSATA are all adopted), the recommended operating temperature is -25ºC ~ 60ºC
*** For extreme wide temperature -40ºC ~ 70ºC, it is optional with 100% screening, please contact Neousys Technology.
