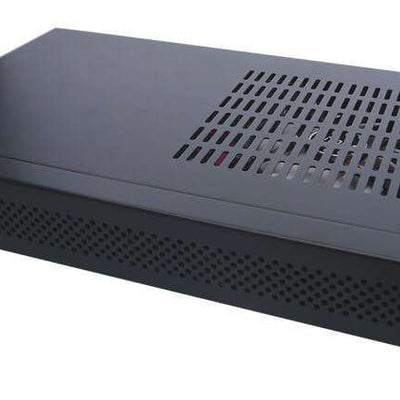

Jetway JBC142F697-Q170B (Kabylake)

MB Model

–JNF697-Q170 / Mini ITX

Part No

–HBJC142F697-Q170B (non-WIFI)

BIOS

–AMI 16MB SMT Flash ROM

CPU/Chipset

–Intel® LGA1151 Skylake /Kabylake Processor (Max. TDP 65W)
–Intel® Q170 Express Chipset

Memory

–2 * SO-DIMM slots DDR4-2133 up to 32GB

Storage

–2 * 2.5” SATA3 6Gb/s internal drive bay

Network

–2 * Intel® GbE (i211AT * 1 & i219LM * 1)
–1 * Full-size Mini-PCIE slot ( 802.11 b/g/n + BT 4.0 installed in WIFI model / Optional)

Rear Panel I/O

–4 * USB 3.0 ports
–1 * HDMI, 2 * DP
–2 * RJ45
–1 * Line-in, 1 * Line-out, 1 * Mic-in (Realtek ALC662VD)
–2 * COM (RS232/422/485), 4 * COM (RS232/Optional)
–2 * Antenna holes (WiFi model only)
–19V DC-In jack

Front Panel I/O

–1 * Power button, 1 * Reset button
–1 * Power LED, 1 * HDD LED
–2 * USB2.0 ports

Internal I/O

–1 * SIM Card

Option

–TPM 1.2 / TPM 2.0

Power Source

–FSP DC Adapter / DC19V-6.3A-120W / LV6
–AC 90~240V input

Compliance

–CE, FCC, LVD, RoHS

Safety

–Vibration test: N.C
–Shock test: N.C

Temperature

–Operating Temperature: 0~50°C
–Storage Temperature: -10-70°C

Dimensions

–330 (W) x 192 (D) x 44 (H) mm

Packing

–Net Weight: 2.0KG
–Gross Weight: 3.2KG
–Color Box dimension: 406 (W) * 359 (D) * 148 (H) mm

OS Support

–32/64 bit versions of Windows 7, Windows 8.1, Windows 10, Linux

Warranty

–1 Year limited warranty
