Sku: ELIT-1270-1807F
Product Type:
Signage Player
Vendor:
Arbor

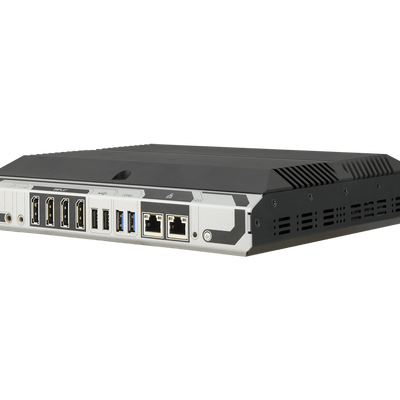

ELIT-1270-1807F
4K Digital Signage Player com processador AMD Ryzen V1807B e 4x DisplayPort 1.2
- AMD Ryzen™ Embedded V1000 series APU
- 2 x DDR4 SO-DIMM socket, dual channel, up to 2666 MHz
- Support 4 x DisplayPort 1.2, up to 4K (UHD) resolution
- Support 2 x USB 3.1 Gen1 and 2 x USB 2.0
- 1 x M.2 2242/ 2280 M-Key for storage
- 1 x mPCIe slot for connectivity expansion
Especificações
Downloads
Especificações
System
| CPU | AMD Ryzen™ Embedded V1000 series (SOC FP5) APU up to 54W TDP |
|---|---|
| Memory | 2 x 260-pin DDR4 SO-DIMM socket - Support 2400MHz SDRAM up to 32GB (V1605B) - Support 2666MHz SDRAM up to 32GB (V1807B) |
| Chipset | AMD integrated SoC |
| Graphics | AMD Radeon™ Vega X Graphics |
| Watchdog Timer | 1~255 levels reset |
I/O Interface
| USB Port | 2 x USB 2.0 2 x USB 3.1 Gen1 |
|---|---|
| LAN | 2 x RJ-45 port for Giga LAN |
| Serial Port | 2 x RS 232/422/485 w/ DB9 connector |
| Video Port | 4 x DisplayPort 1.2 |
| Audio | Mic-in / Line-out |
| Expansion Bus / Storage | 1 x M.2 2242/ 2280 M-Key slot (PCIe x4 + SATA III) 1 x mPCIe slot (PCIe x1 + USB 2.0) |
Environmental
| Operating Temp. | -10 ~ 50°C (14 ~ 122°F), ambient w/ air flow |
|---|---|
| Storage Temp. | -20 ~ 60°C (-4 ~ 140°F) |
| Operating Humidity | 10 ~ 95% @ 50°C (non-condensing) |
| Vibration | 5~500Hz 3 Grms X,Y, Z axis w/ storage |
| Shock & Crash | 10G peak acceleration (11 m sec. duration), operation 30G peak acceleration (11 m sec. duration), nonoperation |
OS Support
| System | Windows 10 IoT 64-bit / Linux: Ubuntu (Kernel: 3.1X) |
|---|
Storage
| Type | 1 x M.2 2242/ 2280 M-Key slot |
|---|
Qualification
| Certification | CE, FCC Class A |
|---|
Power Requirement
| Power Input | DC 9 ~ 36V (4-pin terminal block) |
|---|---|
| Power Consumption | ELIT-1270-1605 : 40W ELIT-1270-1807F : 65W |
Mechanical
| Construction | Aluminum alloy and sheet metal |
|---|---|
| Mounting | VESA-mount and Wall-mount |
| Weight (approx.) | 2.98 kg (ELIT-1270-1605) 2.00 kg (ELIT-1270-1807F) |
| Dimensions (W x H x D) | 240 x 50 x 204 mm (ELIT-1270-1605) 240 x 41 x 204 mm (ELIT-1270-1807F) |
Ordering Information
| ELIT-1270-1605 | ELIT-1270 w/ AMD Ryzen V1605B, 4 x DP, 2 x GbE LAN, 4 x USB, 2 x COM w/o Fan |
|---|---|
| ELIT-1270-1807F | ELIT-1270 w/ AMD Ryzen V1807B, 4 x DP, 2 x GbE LAN, 4 x USB, 2 x COM w/ Fan |
