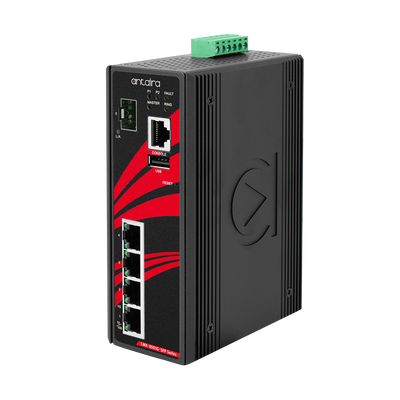

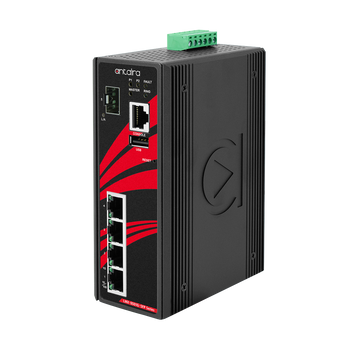

Antaira’s LMX-0501G-SFP series is a 5-port industrial gigabit Light Layer 3 managed Ethernet switch that is embedded with four gigabit Ethernet ports and one dual rate (100/1000) SFP slots for fiber connection. This series is a fully manageable industrial Ethernet switch pre-loaded with standard Light Layer 3 network management software, and supports a user friendly web console interface for easy configuration.
The LMX-0501G-SFP series is IP30 rated, DIN-rail mountable, and has two wide operating temperature models for either a standard temperature range ( STD: -10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water wastewater, and any other outdoor or harsh environment.
| Certifications | FCC, CE, UL 61010-1, UL 61010-2-201 |
| Dimensions | 46 x 142 x 99 mm |
| Ethernet Port | 4*10/100/1000BaseTx auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
| Fiber Port | 1* 100/1000 SFP Slot |
| Free Fall / Shock / Vibration | IEC60068-2-32 / 2-27 / 2-6 |
| Housing | Metal IP30 rated |
| Input Voltage | 12~48VDC Redundant Input w/ 1 removable 6-contact terminal block |
| Operating Temperature | STD: -10° to 70° C / EOT -40°~75°C |
| Power Consumption | 10 Watts |
| Protocols | CSMA/CD,IGMPv1/v2,SNMPv1/v2,TFTP,SNTP,SMTP,RARP, Syslog |
| Standards | IEEE 802.3, u, ab, z, x IEEE 802.1d, w, s, q, x, ad, p ITU-TG.8032 / Y.1344 ERPS |
| Warranty | 5 Years |
