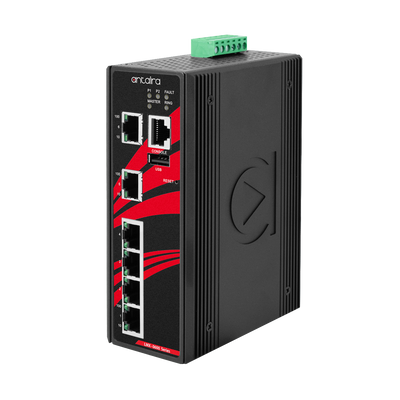

Antaira's LMX-0600-V2 series is a 5-port industrial managed Ethernet switch that is embedded with 6*10/100Tx fast Ethernet ports. This series is a fully manageable industrial Ethernet switch pre-loaded with standard Light Layer 3 network management software, and supports a user friendly web console interface for easy configuration.
The LMX-0500-V2 series is IP30 rated, DIN-rail mountable, and has two wide operating temperature models for either a standard temperature range ( STD: -10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water wastewater, and any other outdoor or harsh environment.
Version 2 hardware is compatible with the latest Light Layer 3 firmware which permits static routes between VLANs.
| Ambient Relative Humidity | 5 to 95%, (non-condensing) |
| Certifications | FCC, CE |
| Configuration | HTTP, HTTPS, Telnet, SSH, CLI, TFTP, SNMP v3 |
| Dimensions | 54 x 142 x 99 mm (W x H x D) |
| EMI | FCC Part 15 Subpart B Class A, CE EN55022/EN61000-6-4 Class A |
| EMS | CE EN55024/EN61000-6-2 Class A, IEC61000-4-2,3,4,5,6,8 |
| Ethernet Port | 6*10/100Base-TX, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
| Fiber Port | NA |
| Free Fall / Shock / Vibration | IEC60068-2-32/IEC60068-2-27/IEC60068-2-6 |
| Housing | Metal, IP30 protection |
| Input Voltage | 12~48VDC Redundant Input |
| Mounting | DIN-Rail; Wall-mount (optional) |
| Operating Temperature | STD: -10° to 70°C / EOT: -40° to 75°C |
| Storage Temperature | -40°~85°C |
| Warranty | 5 Years |
