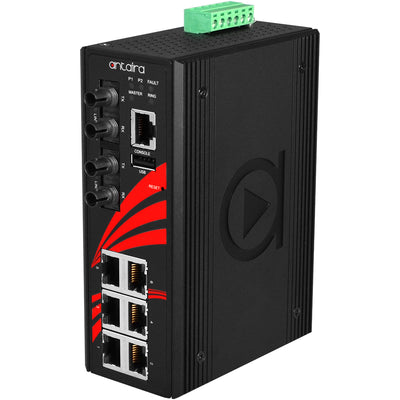

Antaira’s LMX-0802-ST-S3 is a 8-port industrial managed Ethernet switch that is embedded with 6*10/100Tx Fast Ethernet ports + 2*100Fx single-mode ST fiber ports. This model is a fully manageable industrial Ethernet switch pre-loaded with standard Layer 2 network management software.
The LMX-0802-ST-S3 has a compact form factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -10°C to 70°C or -40°C to 75°C (model LMX-0802-ST-S3-T). It also provides high EFT and ESD protection for industrial networking applications within factory automation, ITS, power/utility, water wastewater, security, or other outdoor/harsh environments.
| Certifications | FCC, CE, UL 61010-1, UL 61010-2-201 |
| Configuration | Web Console, Telnet, CLI |
| Dimensions | 54 x 142 x 99 mm |
| EMI | FCC Class A |
| EMS | IEC61000-4-2,3,4,5,6,8 / IEC61000-6-2,4 |
| Ethernet Port | 6*10/100BaseTx auto negotiation speed, Full/Half duplex mode, and auto MDI connection |
| Fiber Port | 2*100Fx Multi-mode Fiber Ports with ST Connectors |
| Fiber Port | 2*100Fx Single-mode Fiber Ports with ST Connectors |
| Housing | Metal IP30 rated / DIN-Rail & Wall-Mount (Included) |
| Input Voltage | 12~48VDC Redundant Input / 1 removable 6-contact terminal block |
| Power Consumption | 15 Watts |
| Free Fall / Shock / Vibration | IEC60068-2-27 / 2-6 / 2-32 |
| Operating Temperature | STD: -10 to 70°C / EOT: -40 to 75°C |
