Sku: LMX-0804G-SFP
Product Type:
Switches Gerenciáveis
Vendor:
Antaira
LMX-0804G-SFP
LMX-0804G-SFP-T (EoT: -40~75C)
8-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch, w/4*10/100/1000Tx Ports + 4*100/1000Fx SFP Fiber Slots.
Caraterísticas
Especificações
Downloads
Incluído
Caraterísticas

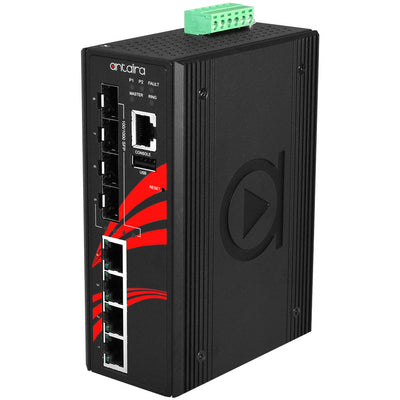

Antaira’s LMX-0804G-SFP is a 8-port industrial gigabit Light Layer 3 managed Ethernet switch that is embedded with 4*10/100/1000Tx gigabit ports + 4*100/1000Fx SFP ports. This model is a fully manageable industrial Ethernet switch pre-loaded with standard Light Layer 3 network management software.
The LMX-0804G-SFP has a compact form factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -10°C to 70°C or -40°C to 75°C (Model LMX-0804G-SFP-T). It also provides high EFT and ESD protection for industrial networking applications within factory automation, ITS, power/utility, water wastewater, security, or other outdoor/harsh environments.
- Network Broadcast Storm Protection
- Supports 4*10/100/1000Tx Gigabit Ports + 4*100/1000Fx SFP Slots
- Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery time <50ms)
- Configuration: Web Console, Serial, CLI Command
- Supports IGMP v1/v2
- Supports QoS (IEEE 802.1p) and CoS/ToS
- Supports IEEE 802.1Q VLAN, SNMP v1/v2c/v3
- Redundant Power Input Design 12~48VDC + Built-in relay output for Port Break Alarm
- System Warning Setting for Automatic Warning through E-mail
- DIN-Rail and Wall Mount Support
- Operating Temperature Range - STD: -10° to 70°C / EOT: -40º to 75ºC
- 5-Year Warranty
Especificações
| Certifications | FCC, CE, UL 61010-1, UL 61010-2-201 |
| Dimensions | 54 x 142 x 99 mm |
| EMI | FCC Class A |
| EMS | IEC61000-4-2,3,4,5,6,8 / IEC61000-6-2,4 |
| Ethernet Port | 4*10/100/1000BaseTx auto negotiation speed, Full/Half duplex mode, and auto MDI connection |
| Fiber Port | 4*100/1000 Dual Rate SFP Fiber Ports |
| Free Fall / Shock / Vibration | IEC60068-2-32 / 2-27 / 2-6 |
| Housing | Metal IP30 rated / DIN-Rail & Wall-Mount (Included) |
| Operating Temperature | STD: -10 to 70°C / EOT: -40 to 75°C |
| Power Consumption | 15 Watts |
| Warranty | 5 Year |
Downloads
Incluído
- 1 - DC cable –18 AWG to DC Jack 5.5x2.1mm
- 1 - LMX-0804G-SFP-T
- 1 - RJ45 to DB9 Serial Console Cable
- 2 - Wall Mounting Brackets and Screws
