Switch LMX-0802-ST-M (6*10/100Tx + 2*100Fx ST, MM 2Km)
Switch LMX-0802-ST-M (6*10/100Tx + 2*100Fx ST, MM 2Km)
Switch LMX-0802-ST-M (6*10/100Tx + 2*100Fx ST, MM 2Km)
Switch LMX-0802-ST-M (6*10/100Tx + 2*100Fx ST, MM 2Km)
Switch LMX-0802-ST-M (6*10/100Tx + 2*100Fx ST, MM 2Km)

Switch LMX-0802-ST-M (6*10/100Tx + 2*100Fx ST, MM 2Km)

com IVA
750.30€

sem IVA
610.00€
Sku: LMX-0802-ST-M
Product Type: Switches Gerenciáveis
Vendor: Antaira

LMX-0802-ST-M

LMX-0802-ST-M-T (EoT: -40~75C)

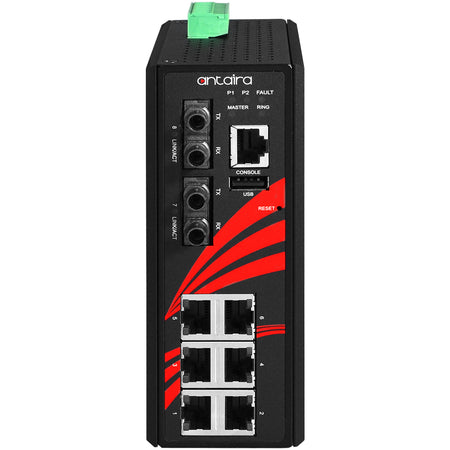

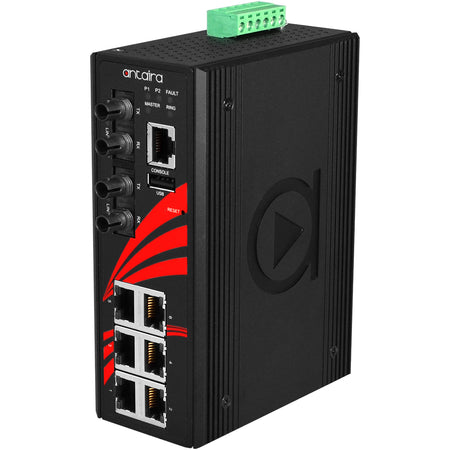

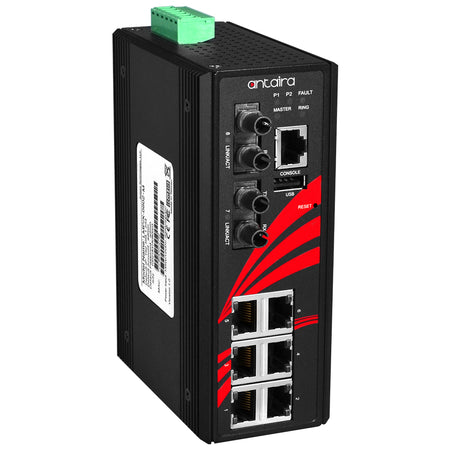

8-Port Industrial Light Layer 3 Managed Ethernet Switch w/6*10/100Tx Ports + 2*100Fx Multi-Mode 2Km, ST Connector

Caraterísticas

Antaira’s LMX-0802-ST-M is a 8-port industrial Light Layer 3 managed Ethernet switch that is embedded with 6*10/100Tx Fast Ethernet ports + 2*100Fx multi-mode ST fiber ports. This model is a fully manageable industrial Ethernet switch pre-loaded with standard Light Layer 3 network management software.

The LMX-0802-ST-M has a compact form factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -10°C to 70°C or EOT: -40° to 75° C (model LMX-0802-ST-M-T). It also provides high EFT and ESD protection for industrial networking applications within factory automation, ITS, power/utility, water wastewater, security, or other outdoor/harsh environments.

  • Network Broadcast Storm Protection
  • Supports 6*10/100Tx Fast Ethernet Ports + 2*100Fx Multi-Mode ST Fiber Ports
  • Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery time <50ms)
  • Configuration: Web Console, Serial, CLI Command
  • Supports IGMP v1/v2
  • Supports QoS (IEEE 802.1p) and CoS/ToS
  • Supports IEEE 802.1Q VLAN, SNMP v1/v2c/v3
  • Redundant Power Input Design 12~48VDC + Built-in Relay Output for Port Break Alarm
  • System Warning Setting for Automatic Warning through E-mail

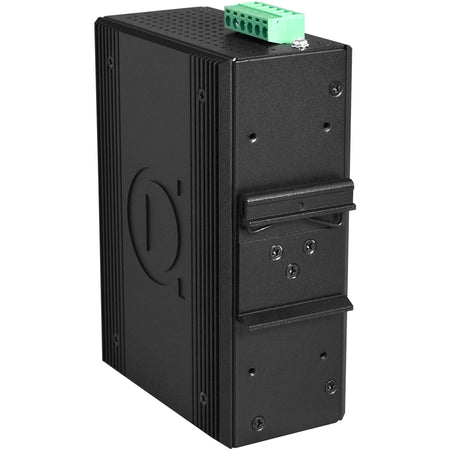

  • DIN-Rail and Wall Mount Support
  • Operating Temperature Range - STD: -10° to 70° C / - EOT: -40° to 75° C
  • 5-Year Warranty
Especificações
Certifications FCC, CE, UL 61010-1, UL 61010-2-201
Configuration Web Console, Telnet, CLI
Dimensions 54 x 142 x 99 mm
EMI FCC Class A
EMS IEC61000-4-2,3,4,5,6,8 / IEC61000-6-2,4
Ethernet Port 6*10/100BaseTx auto negotiation speed, Full/Half duplex mode, and auto MDI connection
Fiber Port 2*100Fx Multi-mode Fiber Ports with ST Connectors
Housing Metal IP30 rated / DIN-Rail & Wall-Mount (Included)
Input Voltage 12~48VDC Redundant Input / 1 removable 6-contact terminal block
Power Consumption 15 Watts
Free Fall / Shock / Vibration IEC60068-2-27 / 2-6 / 2-32
Operating Temperature STD: -10 to 70°C or EOT -40 to 75°C
Downloads
Datasheet
Manual
Incluído
  • 1 - LMX-0802-S3-T
  • 2 - Wall Mounting Brackets and Screws
  • 1 - DC cable –18 AWG to DC Jack 5.5x2.1mm
  • 1 - RJ45 to DB9 Serial Console Cable
