Sku: LMP-0600-V2
Product Type:
Switches Gerenciáveis POE+ (porta 30W)
Vendor:
Antaira
LMP-0600-V2
LMP-0600-T-V2 (EoT: -40~75C)

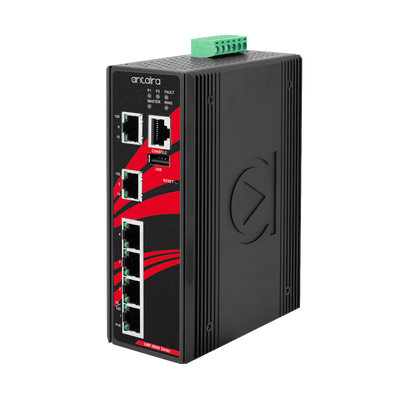

6-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switch, with 4*10/100Tx (30W/Port) + 2*10/100Tx, 48~55VDC; Version 2 hardware
Caraterísticas
Especificações
Downloads
Incluído
Caraterísticas
Antaira’s LMP-0600-V2 series is a 6-port industrial PoE+ Light Layer 3 managed Ethernet switch that is IEEE 802.3at complaint and is embedded with 4*10/100Tx Ethernet ports that support IEEE802.3at/af for a maximum of 30 watts per port, and 2*10/100Tx Fast Ethernet ports.
The LMP-0600-V2 series is a fully manageable industrial Ethernet switch that supports the standard Light Layer 3 Ethernet configurable settings with a pre-loaded web console. This product series is IP30 rated and DIN-rail mountable and provides operating temperature range models in STD: -10°C to 70°C, and EOT: -40°C to 75°C. It also provides a high EFT and ESD protection for any industrial networking application in factory automation, ITS, power/utility, water wastewater treatment plants, or any outdoor or harsh environment.
Version 2 hardware is compatible with the latest Light Layer 3 firmware which permits static routes between VLANs.
- Supports 4*10/100Tx IEEE 802.3at/af Compliant with 30W/Port, and 2*10/100Tx Fast Ethernet Ports
- Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
- Configuration: Web Console, Serial, CLI Command
- Supports IGMP v1/v2, up to 256 Groups
- Supports QoS (IEEE802.1p) and CoS/ToS
- Supports IEEE802.1Q VLAN, SNMP v1/v2c
- PoE Ping Alarm Function for PoE Ports Power Recycle
- System Warning Setting for Automatic Warning through E- Mail
- Redundant Power Input Design - 48~55VDC
- Housing: Metal IP 30 rated; DIN-Rail and Wall Mount Support
- Operating Temperature - STD: -10~70C / EOT: -40°C to 75°C
- 5-Year Warranty
Especificações
| Humidity | 5 to 95%, (non-condensing) |
| Back Plane | 1.2Gbps |
| Certifications | FCC, CE |
| Dimensions | 54 x 142 x 99 mm (W x H x D) |
| EMI | FCC Part 15 Subpart B Class A, CE EN55022/EN61000-6-4 Class A |
| EMS | CE EN55024/EN61000-6-2 Class A, IEC61000-4-2,3,4,5,6,8 |
| Ethernet Port | 6*10/100Base-TX, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
| Free Fall / Shock / Vibration | IEC60068-2-32/IEC60068-2-27/IEC60068-2-6 |
| Housing | Metal, IP30 protection |
| Input Voltage | 48~55VDC Redundant Input |
| Mounting | DIN-Rail; Wall-mount (optional) |
| Power Consumption | 7.5W |
| Operating Temperature | STD: -10° to 70°C / EOT: -40° to 75°C |
| Storage Temperature | -40°~85°C |
| Warranty | 5 Years |
Downloads
Incluído
- 1 - DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
- 1 - Quick Installation Guide
- 1 - RJ45 dust cover set
- 1 - RJ45 to DB9 serial Console cable
- 1 - Wall mounting bracket set with screws
