Sku: BOXER-6405-A1-1011
Tipo de Produto:
PCs Industriais
Fabricante:
AAEON
BOXER-6405-A1-1011
Intel® Celeron N3350
BOXER-6405-A2-1011
Intel® Pentium N4200

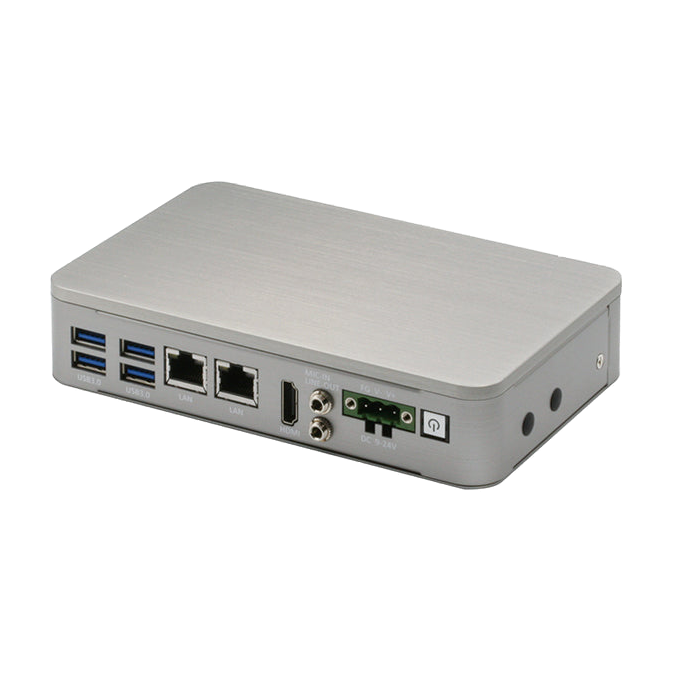

Fanless Box PC com processadores Intel® Celeron/ Pentium
- Slim Boxer Design: 37mm
- Rich I/O, Design for Auto System Control
- Wide Operating Temperature -20°C ~ 60°C
- Gigabit Ethernet x 2, USB x 4
- Support Wallmount
Caraterísticas
Especificações
Downloads
Incluído
Opcionais
Caraterísticas
The BOXER-6405 is a rugged, ultra-compact edge AI computing solution for smart factory applications. Only 37mm thick, it can be deployed almost anywhere, and its -20°C to 60°C operating temperature range means it can handle harsh, factory environments.
The BOXER-6405 is a versatile system, powered by an Intel Celeron or Pentium processor and featuring a wide array of I/O ports. The BOXER-6405 has a full-sized and half-sized mini-PCIe expansion slot, which supports the AI Core X mPCIe module. The AI Core X is powered by Intel Movidius Myriad X, perfect for AI edge computing applications such as AIOT platform or machine vision system. The BOXER-6405U also supports Wi-Fi and 4G LTE cards, perfect for use as and IoT or Industrial IoT (IIoT) gateway.
Especificações
| SYSTEM | |
| CPU | Intel® Celeron/Pentium™ processor |
| CHIPSET | Intel® System on Chip |
| SYSTEM MEMORY | DDR3L SO-DIMM slot x 1 Supports 1867 MHz and up to 8GB |
| DISPLAY INTERFACE | HDMI (max. 1920 x 1080) |
| STORAGE DEVICE | mSATA |
| ETHERNET | Intel® i211-AT x 2 |
| I/O | Power Button x 1 USB Type A x 4 for USB 3.2 Gen 1 HDMI type A x 1 for HDMI v1.4b RJ-45 x 2 for GbE LAN with LED indicator ( i211-AT x 2) Power input x 1 3-pin terminal block in default (+, - , GND) Co-layout 3-pin terminal block & lockable DC-in jack,) Co-layout internal DC Mic-in x 1, Line-out x 1 RS-232/422/485 x 3 with automatic flow control (switch by BIOS) VGA x 1 Remote On/Off Antenna opening x 2 DC-in 3-pin terminal block(9~24V) x 1 |
| EXPANSION | Full-size Mini PCIe slot x 1 (PCIe/USB/SIM slot), one screw Half-size Minicard slot x 1 (mSATA only) |
| INDICATOR | Power LED x1, HDD active LED x1 |
| OS SUPPORT | Windows® 10, Windows® 10 IoT, Linux |
| POWER SUPPLY | |
| POWER REQUIREMENT | 9-24V with 3-pin terminal block |
| MECHANICAL | |
| MOUNTING | Wallmount |
| DIMENSIONS (W X H X D) | 6.54" x 4.2" x 1.45" (166mm x 106.6mm x 37mm) |
| GROSS WEIGHT | 3.6 lb (1.6kg) |
| NET WEIGHT | 1.76 lb (0.8 kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) with W.T. mSATA (according to IEC68-2-14 with 0.5 m/s AirFlow; with industrial decives) |
| STORAGE TEMPERATURE | -22°F ~ 140°F (-30°C ~ 60°C) |
| STORAGE HUMIDITY | 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 3 Grms/ 5 ~ 500Hz/ operation – mSATA 1 Grms /5 ~ 500Hz/ operation - HDD |
| CERTIFICATION | CE/FCC class A |
Ordering Information [BOXER-6405]
| PART NUMBER | BOXER-6405-A1-1011 | BOXER-6405-A2-1011 |
|---|---|---|
| CPU | N3350 | N4200 |
| PCH | SoC | SoC |
| RAM | — | — |
| LAN | 2 | 2 |
| USB | USB 3.2 Gen 1 x 4 | USB 3.2 Gen 1 x 4 |
| RS-232 | — | — |
| RS-232/422/485 | 3 | 3 |
| DIGITAL I/O | — | — |
| AUDIO | MIC-in, Line-out |
MIC-in, Line-out |
| STORAGE | mSATA x 1 | mSATA x 1 |
| DISPLAY | VGA/HDMI x1 | VGA/HDMI x1 |
| EXPANSION | Full-size Minicard x 1 Half-size Minicard x 1 |
Full-size Minicard x 1 Half-size Minicard x 1 |
| MOUNTING | Wallmount | Wallmount |
| POWER | 9~24V | 9~24V |
| OPERATION TEMP | -20°C ~ 60°C | -20°C ~ 60°C |
Downloads
Incluído
- Wallmount Bracket x 2
- 3 Pin DC-In Power Connector x 1
- BOXER-6405
Opcionais
| 125530040F | Power Adapter |
| 1702031802 | Power Cord (US type) |
| 1702031803 | Power Cord (European Type) |
| 170203180E | Power Cord (Japanese Type) |
| 9741238H00 | WiFi Module & Antenna |
| 9741EG25G0 | 4G Module & Antenna (for global) |
| 9741640404 | Din Rail Mount Kit |
