Sku: BOXER-8332AI-CFL-A2-1010
Tipo de Produto: AI Edge box PC
Fabricante: AAEON

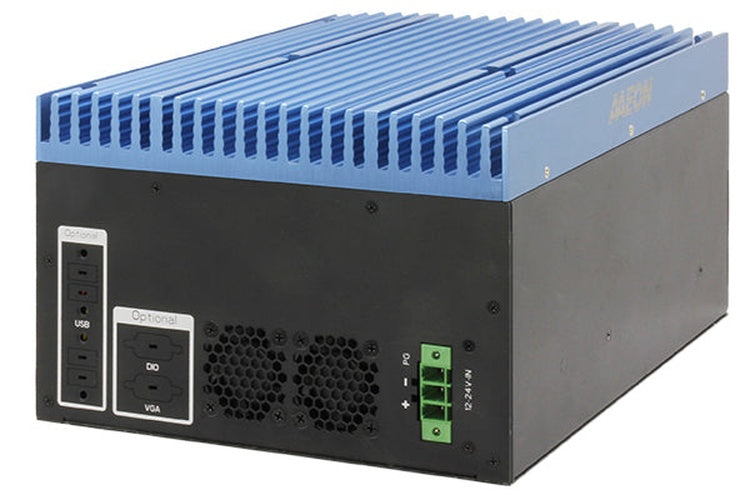

BOXER-8332AI-CFL-A2-1010

GPU EDGE AI Box PC para CPU's Intel® 8/ 9 gen e Nvidia A2

  • High Computing Power
  • Built in Nvidia A2 x1
  • Intel Coffee Lake-S LGA 1151 Desktop Processor
  • HDMI x2 for Dual Display
  • Support C246 PCH
  • Support PCIEx4
  • Single Power Input (for both System & one Graphics Card)
Caraterísticas

The BOXER-8332AI is built to bring the high performance of 8th/9th Generation Intel® Core™ processors (formerly Coffee Lake/Coffee Lake Refresh) to advanced applications including AI Edge Server. The system supports processors up to 71W TDP, and with its innovative thermal design, allows for uninterrupted performance in temperatures from -20°C to 60°C. The system also supports up to 128GB of memory for unlocked performance.

The BOXER-8332AI comes standard with the NVIDIA® A2 installed, but can support a wide range of passively-cooled GPUs. Additional expandability is available with two Mini Card slots, M.2, and PCIe [x4][x4] x1 INDICATOR System Power LED x1 (Green)
Storage Active LED x1 (Red) OS SUPPORT Windows® 10 Enterprise 64 bit
Ubuntu 20.04.3/Kernel 5.40.-72 POWER SUPPLY POWER REQUIREMENT DC In 12~24V x1 for 3-pin Terminal block MECHANICAL MOUNTING Wallmount DIMENSIONS (W X H X D) 8.66" x 5.91" x 11.02" (220 mm x 150 mm x 280 mm) GROSS WEIGHT 17.64 lb (8 kg) NET WEIGHT 15.43 lb (7 kg) ENVIRONMENTAL OPERATING TEMPERATURE 32°F~104°F (0°C ~ 40°C) IEC68-2 with 0.5 m/s AirFlow STORAGE TEMPERATURE -49°F~176°F (-45°C ~ 80°C) STORAGE HUMIDITY 5 ~ 95% @ 40°C, non-condensing ANTI-VIBRATION SSD : Random, 1Grms, 5~500Hz ANTI-SHOCK SSD : 5G @ wallmount, Half-sine, 11ms CERTIFICATION CE/FCC class A , UKCA



Ordering Information [BOXER-8332AI-CFL]

PART NUMBER BOXER-8332AI-CFL-A2-1010
CPU
PCH C246
LAN 3
USB USB 3.2 Gen1 x 6
RS-232
RS-232/422/485 4
DIGITAL I/O
AUDIO Mic-in,
Line-out x1
STORAGE 2.5” SATA Drive bay x2
mSATA x1 (optional)
M.2 2280 NVMe SSD slot x1
DISPLAY HDMI x2
EXPANSION Full-size Minicard x1
(PCIE + USB with 1 SIM Slot)
Half-size Minicard x1
(PCIE + USB, optional for mSATA)
M.2 M key (2280) x1 (PCIEx4)
Built in Nvidia A2 x1
PCIE [x4] x1
MOUNTING Wallmount
POWER DC In 12~24V with 3-pin terminal block
OPERATION TEMP 0°C ~ 40°C with 0.5m/s airflow
Packing List
  • Nvidia A2 x1
  • Wallmount Bracket x2
  • 3 Pin DC-in Power Connector x1
  • Screw Package x1
  • Thermal Pad Package x1
  • BOXER-8332AI-CFL x1
Acessórios
1255901209 120W Power Adapter
1255902400 240W Power Adapter
1255903300 330W Power Adapter
1702031802 Power Cord (US type)
1702031803 Power Cord (European Type)
170203180E Power Cord (Japanese Type)
9741324A00 WiFi Module & Antenna
9741EG25G0 4G Module & Antenna (for global)
