Sku: FPC-8109-G1
Tipo de Produto:
GPU Edge box PC
Fabricante:
Arbor

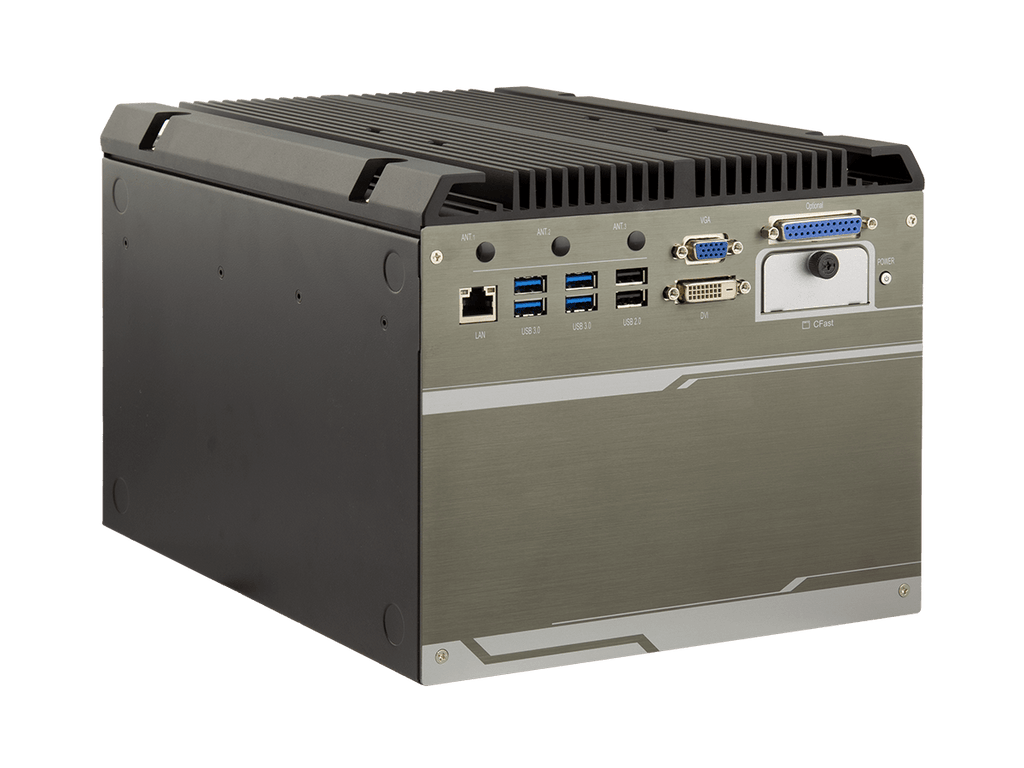

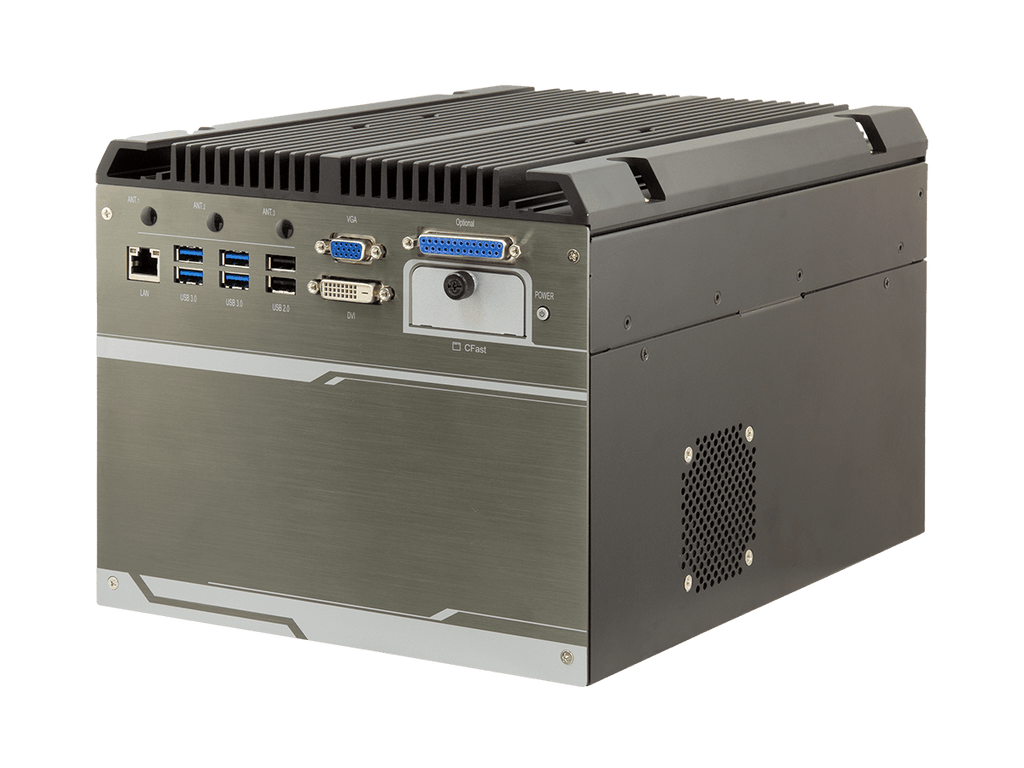

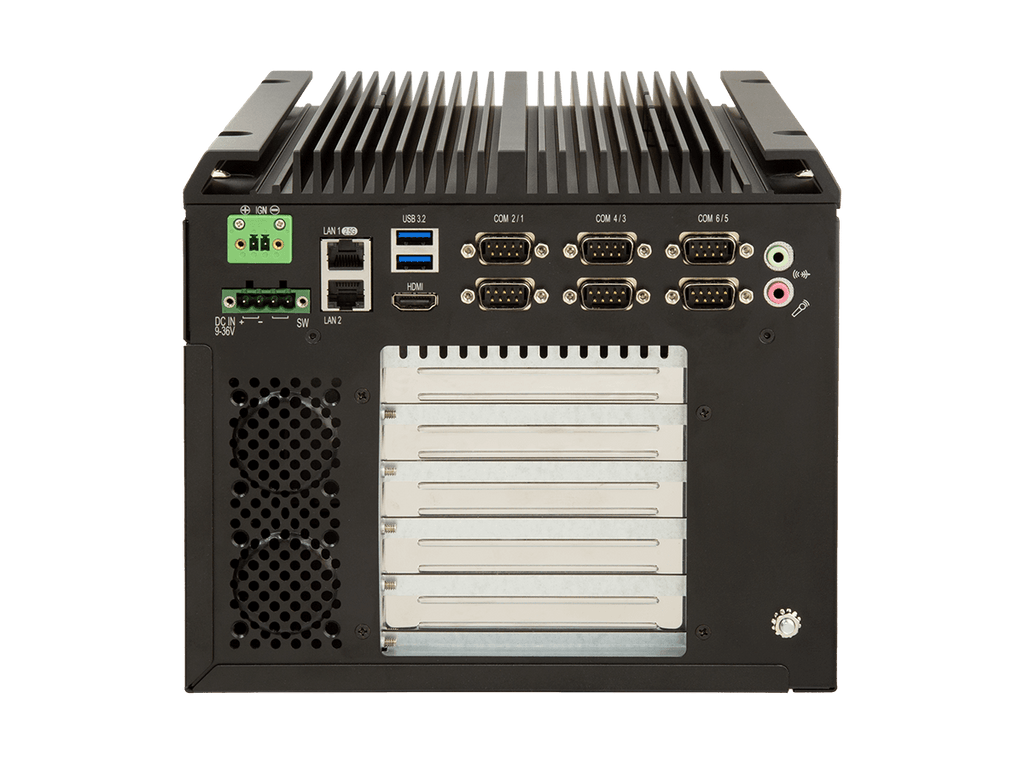

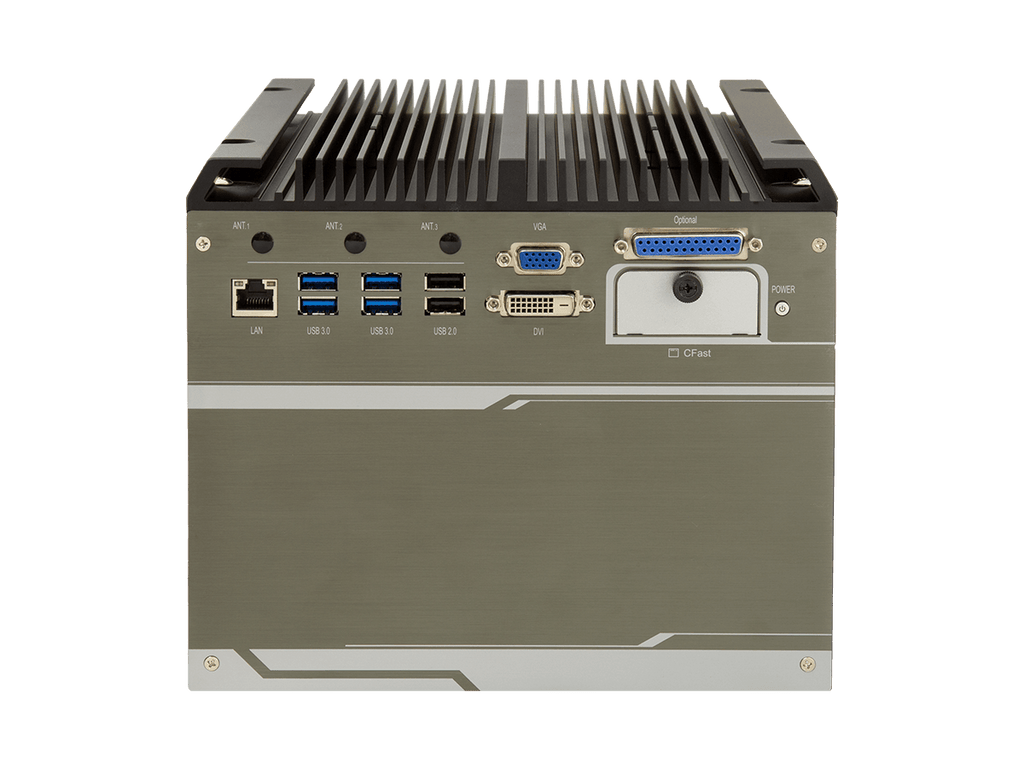

FPC-8109-G1
Box PC robusto para CPUs Intel® Core i9/ i7/ i5/ i3 de 10ª Ger., até 5x slots de expansão PCIe / PCI para NVIDIA 150W
- Supports NVIDIA GTX-16 series up to 150W GPU
- Wide range DC power input (9~36V)
- Two independent displays support (HDMI x1 + VGA x 1 and DVI-D x 1)
- Power on/off delay control / configurable ignition power control
- TPM 2.0 support
- 1x mPCIe for optional Wi-Fi / 3G / 4G / GPS or I/O expansion supported
- Up to 5x expansion slot support
- 1x M.2 E Key (2230) for Wi-Fi / BT
- Front-accessible I/O support
- Intel® Wi-Fi 6 AX200 support
- Support RAID 0,1 (W480E only)
Especificações
Downloads
Especificações
System
| CPU | Intel® 10th generation Core™ i9 / i7 / i5 / i3 processor in LGA1200 socket |
|---|---|
| Memory | 2 x 260-pin DDR4 SO-DIMM sockets, supporting 2933 MHz SDRAM up to 64GB |
| Chipset | Intel® H420E (W480E Optional) |
| Graphics | Integrated Intel® HD Graphics |
| ATA | 2 x Serial ATA ports with 600MB/s HDD transfer rate |
| LAN Chipset | 1 x Intel® WGI225LM 2.5GbE LAN 1 x Intel® WGI211AT GbE controller 1 x Intel® WGI219LM GbE controller (w/o iAMT, H420E) (w/ iAMT, W480E) |
| Watchdog Timer | 1~255 levels reset |
I/O Interface
| Serial Port | 2 x RS-232 / 422 / 485 configurable via DB-9 connectors 4 x RS-232 ports via DB-9 connectors |
|---|---|
| USB Port | 6 x USB 3.2 Gen1 / 2.0 ports 2 x USB 2.0 ports Internal USB dongle (Optional) |
| LAN | 3 x RJ-45 ports for GbE / 2.5GbE |
| Video Port | 1 x HDMI 1 x DB-15 female connector for Analog RGB 1 x DVI-D female connector for digital video output * Support 2 independent displays * Support 3 independent displays (W480E, only) |
| Expansion Bus | 1 full-size Mini-card interconnected with SIM card for optional Wi-Fi / 3G / 4G / GPS or I/O Expansion (PCIe x1 + USB2.0) 1 x M.2 E key (2230) with PCIe x1 + USB2.0, for Wireless 4 x PCI 1 x PCIe x16 slot Support up to 150W GPU |
| Selectable Port | 1 x DB25 connector for DIO (8 in / 8 out) port or LPT port (either one, default is DIO) |
| Audio | Mic-in / Line-out |
Environmental
| Operating Temp. | -20 ~ 70°C (-4 ~ 158°F), ambient w/ air flow, (w/ 35W TDP CPU, fanless) -20 ~ 55°C (-4 ~ 131°F), ambient w/ air flow, (w/ 65W TDP CPU, fanless) -20 ~ 45°C (-4 ~ 112°F), w/ GTX-1660 GPU |
|---|---|
| Storage Temp. | -40 ~ 85°C (-40 ~ 185°F) |
| Operating Humidity | 10 ~ 95% @ 70°C (non-condensing) |
| Vibration | 3 Grms / 5~500Hz / random operation w/ SSD |
| Shock | Operating 40G (11ms), Non-operating 60G with SSD |
OS Support
| System | Windows 10 IOT Enterprise 64-bit Linux (Kernel: 4.9) |
|---|
Storage
| Type | 2 x 2.5” drive bays 1 x CFast socket, can be outside accessible |
|---|
Qualification
| Certification | CE, FCC Class A |
|---|
Power Requirement
| Power Input | DC 9 ~ 36V input Max. 16A/300W (w/ 4-pin DC input terminal block, combining remote power on/off switch) |
|---|---|
| Ignition Switch | 2-pin terminal block: IGN, GND |
| Power Consumption | MAX. 65W (w/35W TDP CPU, w/o I/O card) MAX. 95W (w/65W TDP CPU, w/o I/O card) |
Mechanical
| Construction | Aluminum Alloy |
|---|---|
| Mounting | Wall-mount |
| Weight | 7.35kg (16.20Ib) |
| Dimensions (W x D x H) | 225 x 292 x 190 mm (8.86" x 11.50" x 7.48") |
Ordering Information
| FPC-8109-G1 | Robust Box PC with Intel® 10th Gen CoreTM i9 / i7 / i5 / i3 w/ expansion fan and PEG 8-pin power cable, supporting NVIDIA® 150W GPU |
|---|
