Sku: D111NO
Tipo de Produto: EOL
Fabricante: AVerMedia

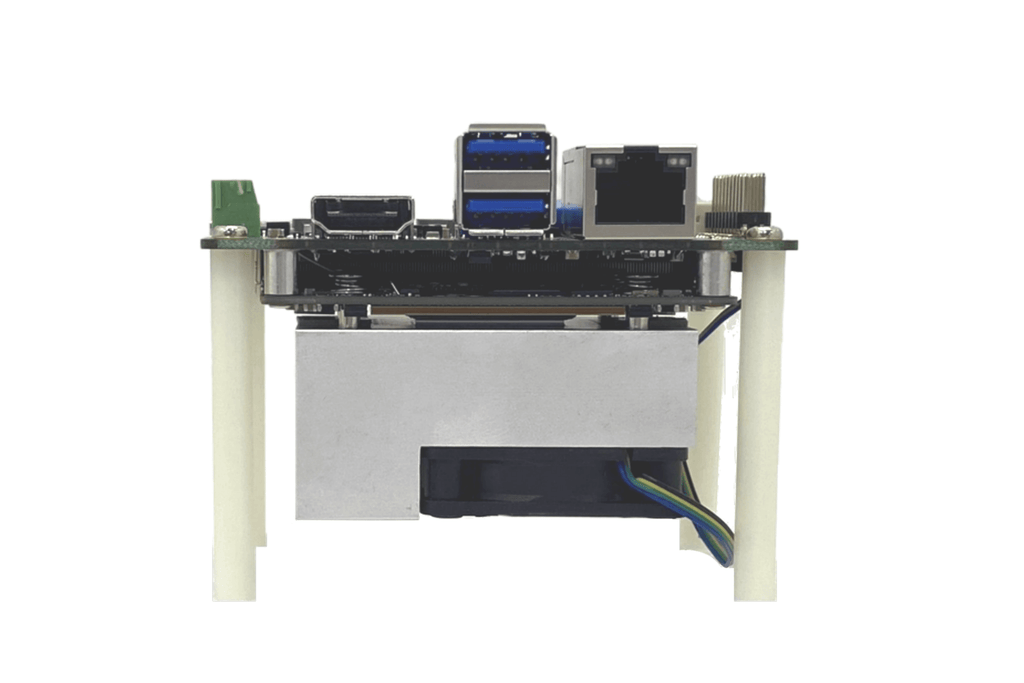

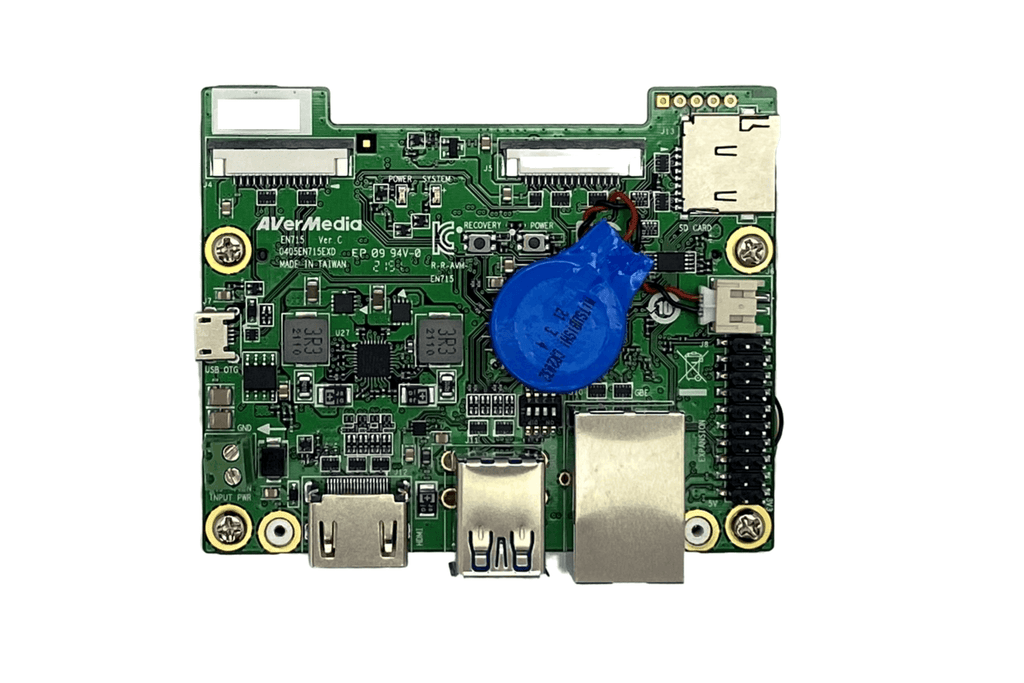

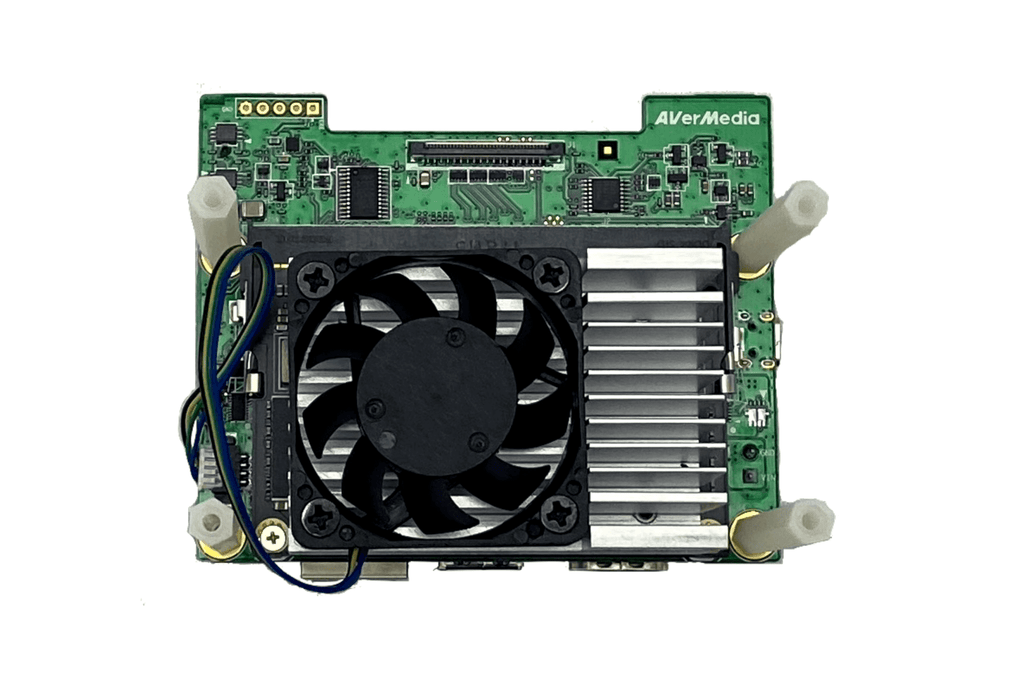

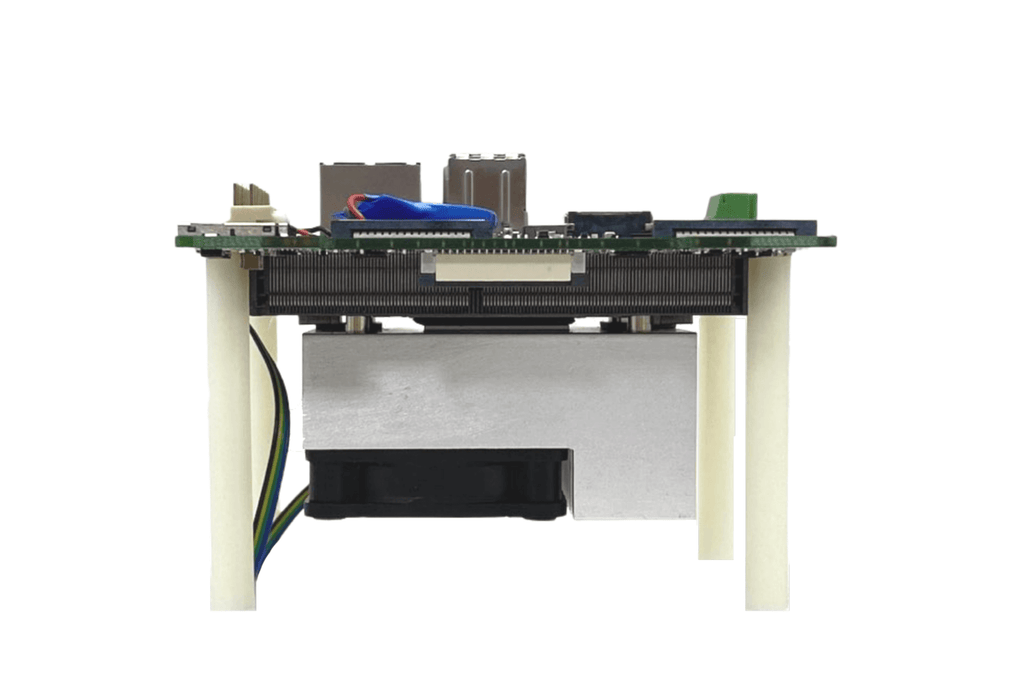

D111NO Development System

AVerMedia D111NO Developement System (NVIDIA Nano 4G)

  • NVIDIA Jetson Nano module
  • 1x GbE RJ-45
  • 2x USB 3.0
  • 1x 4Kp60 HDMI outputs
  • 2x 2 Lane MIPI & 1x 4 Lane MIPI
  • 20-pin Expansion header
  • 1x micro-SD card slot
  • Operating temperature: 0°C ~ 70°C
  • Dimension: W:87mm x L:90mm
Vista Rápida

AVerMedia Development System D111NO is ideal for AI-centric applications such as smart retail, smart security, and much more. This development system includes a variety of I/O ports to support a wide range of sensors for your current project and to future-proof any ideas, you may have.

This development system also supports the NVIDIA JetPack™ and DeepStream SDKs, as well as CUDA®, cuDNN, and TensorRT™ software libraries. These tools allow a speedy deployment.

Especificações
Model D111NO
Type Development System
NVIDIA GPU SoC Module Compatibility NVIDIA® Jetson Xavier NX module
Networking 1x GbE RJ-45
Display Output 1 x HDMI output 3840 x 2160 at 60Hz
Temperature

Operating temperature 0°C~70°C

Storage temperature -40°C ~ 85°C

Relative humidity 40 °C @ 95%, Non-Condensing

MIPI Camera Inputs
  • 2 x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector
  • 1 x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector
USB

1x USB 2.0 Micro-B for recovery

2x USB 3.0 Type-A

Storage 1x micro-SD card slot
Expansion Header 20 pins: 2x I2C, 1x UART, 9x GPIOs
Input Power 3.5mm Screw Terminal; 12V/5A
Buttons Power and Recovery
RTC Battery Support RTC battery and Battery Life Monitoring by MCU
Dimensions

W: 87mm x L: 70mm x H: 58.2mm

Weight: 175g

Certifications CE, FCC, KC
Package

1x Carrier board

1x NVIDIA® Jetson Xavier NX™ module

1 x Fan

1 x Power cable



1x Quick Guide

Screws



Optional Accessories


MIPI Camera

For 15 pin MIPI connector:

1.raspberry pi camera v2

2.Manufacturer APPRO.PHO

B-04 IMX179 (8M) MIPI 1080P (30fps)

C-04 IMX290 (2M) MIPI 1080P (30fps)

C-05 IMX290 (2M) +ISP (YUV) 1080P (30fps)



For 36 pin MIPI connector

1.Manufacturer APPRO.PHO

B-03: IMX334 (4K) MIPI 4K (30fps)

A-06: IMX334 (4K) V-by-One® HS x1 4K (30fps)

** All specifications are subject to change without prior notice.
