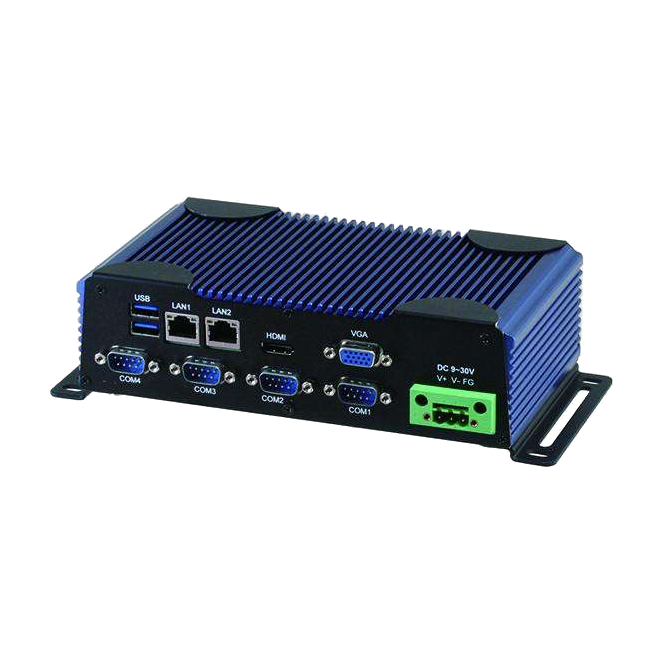

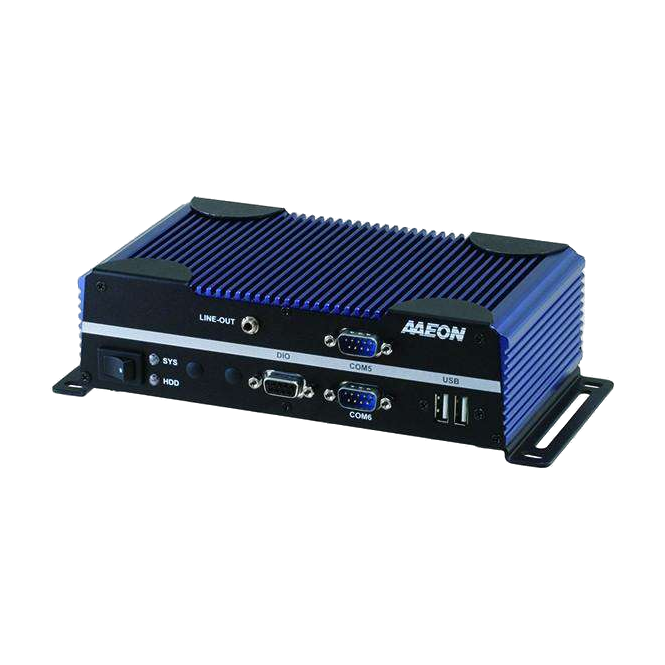

Fanless Embedded PC BOXER-6615

com IVA
707.25€

sem IVA
575.00€
Sku: BOXER-6615-A2-1010
Tipo de Produto: PCs Industriais
Fabricante: AAEON

Fanless Embedded PC Fanless com o processador Quadcore Intel® Pentium® N3710 a 1.6 GHz.



Características Principais :

  • Intel® Pentium® N3710 1.6GHz quad-core
  • 6x COMs: 2 x RS232/422/485 + 4 x RS-232
  • 2x USB 3.0 + 2x USB 2.0
  • Suporta dupla visualização independente : VGA + HDMI Output
  • Suporta 1x HDD / SSD 2.5", 1x mSATA
  • 1x DIO 8 canais
  • 1x SO-DIMM DDR3L 1600MHz até 8GB
  • AAEON’s Hi-Safe



AAEON-BOXER-6615-datasheet



Especificações:

Sistema
CPU Intel® Pentium® N3710 1.6GHz
Chipset Intel® System on Chip
System Memory 204-pin 1600 DDR3L SODIMM x 1, up to 8GB
Display Interface VGA, HDMI
Storage Device mSATA, 2.5" HDD/SSD
Ethernet Realtek RTL-8111E, 10/100/1000Base x2
I/O RS-232/422/485 x 2
RS-232 x 4
USB3.0 x 2
USB2.0 x 2
VGA x 1
HDMI x 1
DIO x 1
Line-Out x 1
Antenna holes x 2
Power switch
Power input
Expansion Full-size Mini-Card x 1
Half-size Mini-Card x 1 (optional for mSATA)
Indicator Power LED
HDD active LED
OS support Windows® 10, Windows® 8.1 (32/64-bit), Windows® 7(32/64-bit), WES7/WES8, Win10 IOT, Linux
power supply
Power Requirement 9 - 30V with 3-pin terminal block (A2M)
12V with lockable DC jack (A2)
mechanical
Mounting Wallmount
DIN Rail (Mounting kit is optional)
Dimensions (W x H x D) 197mm(W) x 55mm(H) x 110mm(D)
Gross Weight 6.6 lb (2.8 kg)
Net Weight 4.4 lb (2 kg)
environmental
Operating Temperature '-20°C ~ 60°C with W.T. SSD/HDD/mSATA
(according to IEC68-2-14 with 0.5 m/s AirFlow ; with industrial devices)
Storage Temperature -4°F ~ 158°F (-20°C ~ 70°C)
Storage Humidity 95% @ 40°C, non-condensing
Anti-Vibration 5 Grms/ 5 ~ 500Hz/ operation –mSATA/SSD
1 Grms/ 5~ 500Hz/ operation – HDD
Certification CE/FCC class A



Ordering Information [BOXER-6615]



Part Number BOXER- 6615-A2-1010 BOXER-6615- A2M-1010
cpu Intel® Pentium® N3710 1.6GHz Intel® Pentium® N3710 1.6GHz
ram — —
lan 2 2
usb 3.0 2 2
usb 2.0 2 2
rs- 232 4 4
rs- 232/422/485 2 2
dio 8 bit 8 bit
audio Line-Out Line-Out
storage SATA 2.5” HDD bay x 1
mSATA x 1 (Optional)		 SATA 2.5” HDD bay x 1
mSATA x 1 (Optional)
display VGA x 1
HDMI x 1		 VGA x 1
HDMI x 1
expansion Full Size Mini-Card x 1 Half Size Mini-Card x 1 Full Size Mini-Card x 1 Half Size Mini-Card x 1
mounting Wallmount Din Rail Mounting Kit (Optional) Wallmount Din Rail Mounting Kit (Optional)
power DC 12V DC 9-30V
temp. -20°C ~ 60°C with W.T. SSD/HDD/
mSATA (according to IEC68-2-14)		 -20°C ~ 60°C with W.T. SSD/HDD/
mSATA (according to IEC68-2-14)



Packing List

  • Wallmount Bracket x 2
  • Screw Package x 1
  • Product DVD x 1
  • Phoenix Power Connector x 1 (For A2M, DC 9 ~30 V only)
  • BOXER-6615





Optional Accessories

125530060A DC Jack for 6615-A2, Power Adapter, AC, 100/240V, 12V/5A, 60W, W/ Lock
1255900841 3 pin for 6615-A2M, Power Adapter, AC, 100/240V, 12V/7A, 84W
1702031803 Power Cord (European Type)
