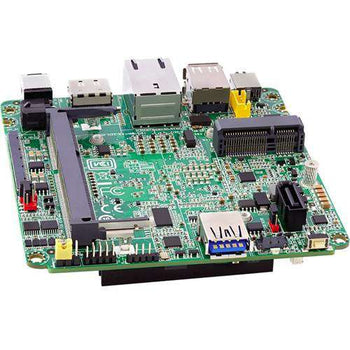

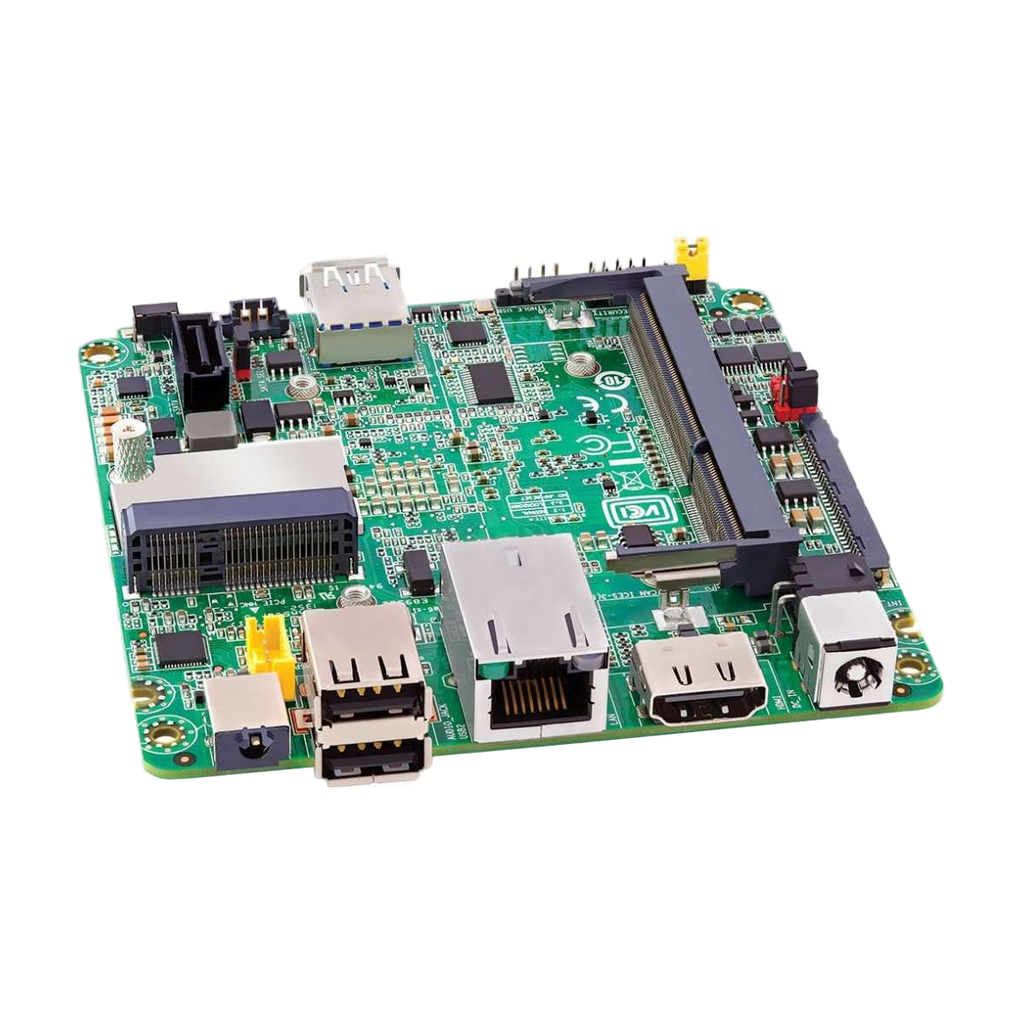

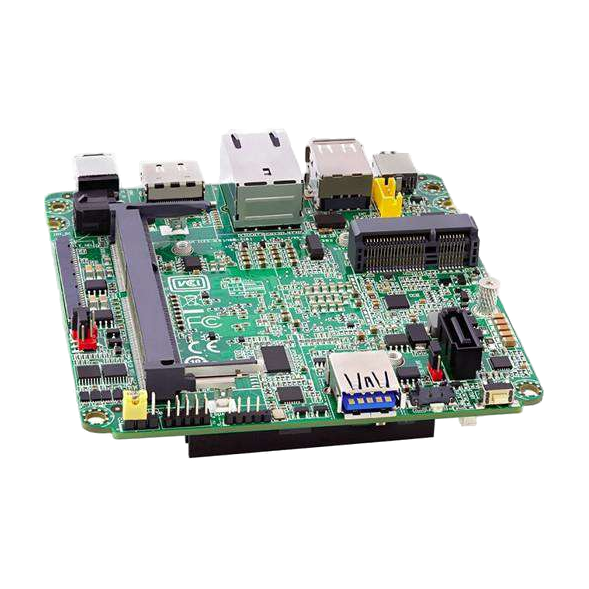

The Intel® NUC board DE3815TYBE, built with an Intel® Atom™ processor for intelligent systems, is a pint-sized powerhouse for value-conscious businesses and organizations. This low-cost, low-power solution introduces many firsts to the Intel NUC form-factor: fanless thermal solution for the ultimate silence and reliability, onboard flash storage for small-footprint software solutions, internal flat panel display connectivity for built-in screens, video graphics array (VGA) header for monitor compatibility in legacy installations, serial ports header for peripherals requiring the robustness of hardware handshaking, watchdog timer for resilient system availability, and also inter-integrated circuit (I²C) and pulse width modulation (PWM) signals for interfacing with sensors and other embedded devices enabling the Internet of Things. And with its three-year supply availability, the Intel NUC board DE3815TYBE will be around to support long development and production ramp cycles.
With its ultra-small form factor design and support for Linux and Windows embedded operating systems, this Intel NUC was designed as the essential building block to power the thin-client market. A fanless board with flash storage built in, and USB 3.0 and audio headset support, this Intel NUC fits right at home in schools, call centers, and other locations with a large installed base of VGA monitors.
Powered by the Intel® Atom™ processor E3815, the Intel NUC board DE3815TYBE also provides an ideal combination of power consumption, performance, affordability, and software compatibility to drive light digital signage, point-of-sale, and kiosk solutions, amongst other usages. With 4 GB of embedded MultiMediaCard (eMMC) storage built in, many embedded applications will benefit from a lower overall system-level bill of materials (BOM) cost. Incidentally, high availability resilience can also be enabled for these and other unattended solutions via the built-in watchdog timer, providing priceless protection against costly and embarrassing downtimes. Last, but certainly not least, this Intel NUC provides a discrete trusted platform module device onboard for hardware-based data encryption—a must-have for applications where confidential information is at stake. Embedded possibilities are endless with the Intel NUC board DE3815TYBE—just add RAM!
Intel® High Definition Audio (Intel® HD Audio)
Integrated Audio for Today and Tomorrow
A new specification for integrated audio, Intel® High Definition Audio (Intel® HD Audio) delivers the features and high-end performance of an add-in audio card while playing back more channels with improved quality. Intel HD Audio provides high-quality multi-channel audio experiences with new encoding and decoding algorithms to enhance the listening experience.
Intel® Virtualization Technology (Intel® VT)
Simplify Virtualization and Reduce Overheads
Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.
• CPU: Intel Atom E3815, 1.46GHz, 512KB Cache, 5W TDP
• RAM: 1x DDR3L SO-DIMM 1.35V, 1066/1333/1600, max. 8GB
• Expansion: 1x Mini-PCIe
• Connectors external: 1x HDMI 1.4a, 1x USB 3.0, 2x USB 2.0, 1x Gb LAN (Intel), 1x Klinke
• Connectors internal: 1x eDP 1.3, 1x VGA, 3x USB 2.0, 1x SATA 6Gb/s, 1x serial
• Power: 1x DC-IN(12-19V) external, 1x DC-Header (12-24V) internal
• Graphics: Intel HD Graphics (IGP)
• Audio: 7.1 Surround via HDMI. Additional external headphone/microphone jack
• Supported OS : Windows 7/8, Linux
• Storage: 4GB eMMC integrated, 1x SATA port
• Remarks: UCFF (4"x4"), All solid capacitors, passively cooled
|Product Type||Motherboard - UCFF|
|Processor||Intel Atom E3815 / 1.46 GHz|
|RAM Installed||0 MB|
|Max Size||8 GB|
|Bus Clock||1600 MHz, 1333 MHz|
|Graphics Controller||Intel HD Graphics|
|Network Interfaces||Gigabit Ethernet|
|Expansion / Connectivity|
|Expansion Slots||1 x SO-DIMM 204-pin (1.35 V) Â¦ 1 x PCIe Mini Card (half-length)|
|Storage Interfaces||SATA-300 -connectors: 1 x 7pin Serial ATA - 1 devices|
|Interfaces||1 x USB 3.0 Â¦ 1 x HDMI Â¦ 1 x LAN (Gigabit Ethernet) Â¦ 2 x USB 2.0 Â¦ 1 x audio line-out/microphone|
|Internal Interfaces||2 x USB 2.0 - header Â¦ 1 x serial - header Â¦ 1 x VGA - header Â¦ 1 x speaker - header Â¦ 1 x Embedded DisplayPort (eDP)|
|BIOS Features||ACPI 3.0b support, SMBIOS 2.5 support, Intel Visual BIOS|
|Hardware Features||WatchDog Timer, Trusted Platform Module (TPM) 1.2|
|Compatible with Windows 7||"Compatible with Windows 7" software and devices carry Microsoftâs assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.|
|Service & Support||Limited warranty - 3 years|
