| CPU | Intel® AtomTM D2550, 1.86GHz, 2x 512K L2, 10W TDP, dual-core |
| Chipset | Intel® NM10 Express Chipset |
| RAM | 2GB DDR3 onboard |
| Graphics | Intel® GMA 3650 • 1 VGA port supports display resolution up to 1920x1200 • 1 micro HDMI port supports display resolution up to 1920x1080 • Smooth Video Playback - Supports hardware decoders (H.264, VC-1, MPEG-4) with Full HD 1080p video playback capability |
| Storage | • 1 CFast socket • 1 mSATA module via a Mini PCIe slot (16GB Module included) |
| Ethernet | 2x Intel® WG82574L Gigabit Ethernet controllers (DUAL LAN) |
| Audio | • Realtek® ALC886 7.1-channel High Defintion Audio • 1 line-out and 1 mic-in |
| COM | • 2 DB-9 ports (RS232/422/485) • Supports RS485 auto direction control |
| Expansion | • 3 Mini PCIe slots - 2 slots for communication : One slot supports PCIe x1, USB, and LPC signals for Wi-Fi module or LPC module : One slot supports PCIe x1, USB, and 3G signals for 3G or GPRS module - 1 slot for storage : Supports mSATA module • 1 SIM card socket • 1 CFast |

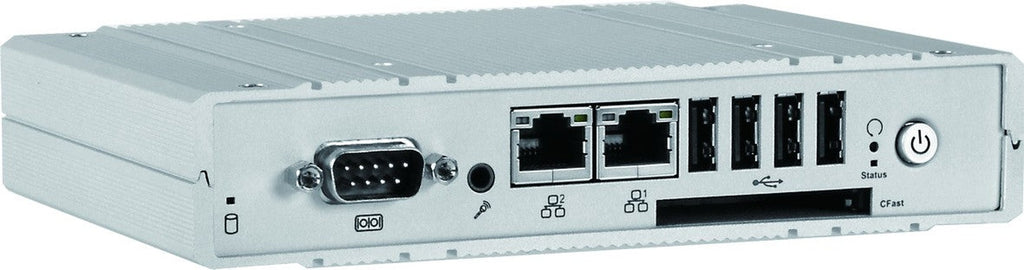

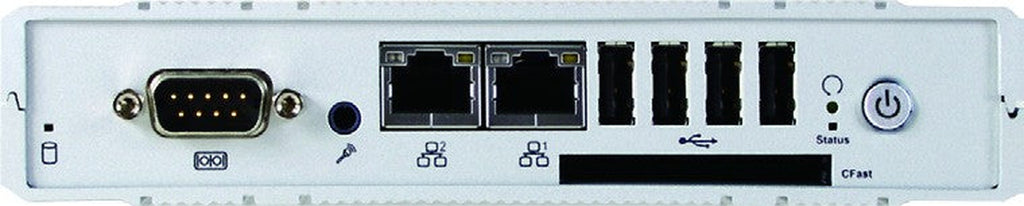

| Front I/O | • 1 DB-9 RS232/422/485 COM • 1 mic-in• 2 LAN• 4 USB 2.0 (Type A) • 1 CFast socket • 1 status LED • 1 hdd LED • 1 reset button • 1 power button with LED |
| Power | 9~24V DC power input voltage |
| Environment | • Temperature - Operating: 0oC ~ 60oC - Storage: -40oC ~ 80oC • Humidity - Operating: 10% to 85% non-condensing - Storage: 10% to 90% non-condensing |
| Construction | Aluminium |
| Mounting | Wall/VESA/DIN Rail mount |
| Dimensions | 161mm x 32mm x 108.2mm (W x H x D) |
| Weight | 700g |
| OS Support | • Windows XP, WES 2009, POSReady 2009 • Windows 7 (32-bit), WES 7 (32-bit) • Linux |
| Other features | Watchdog Timer function |
| Certification | • CE • FCC Class A • RoHS • UL • CCC • KC |
