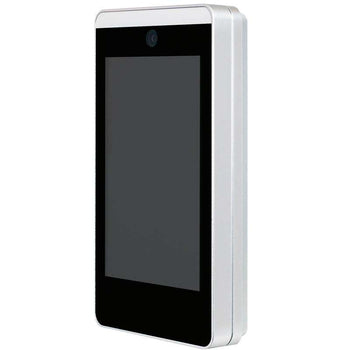

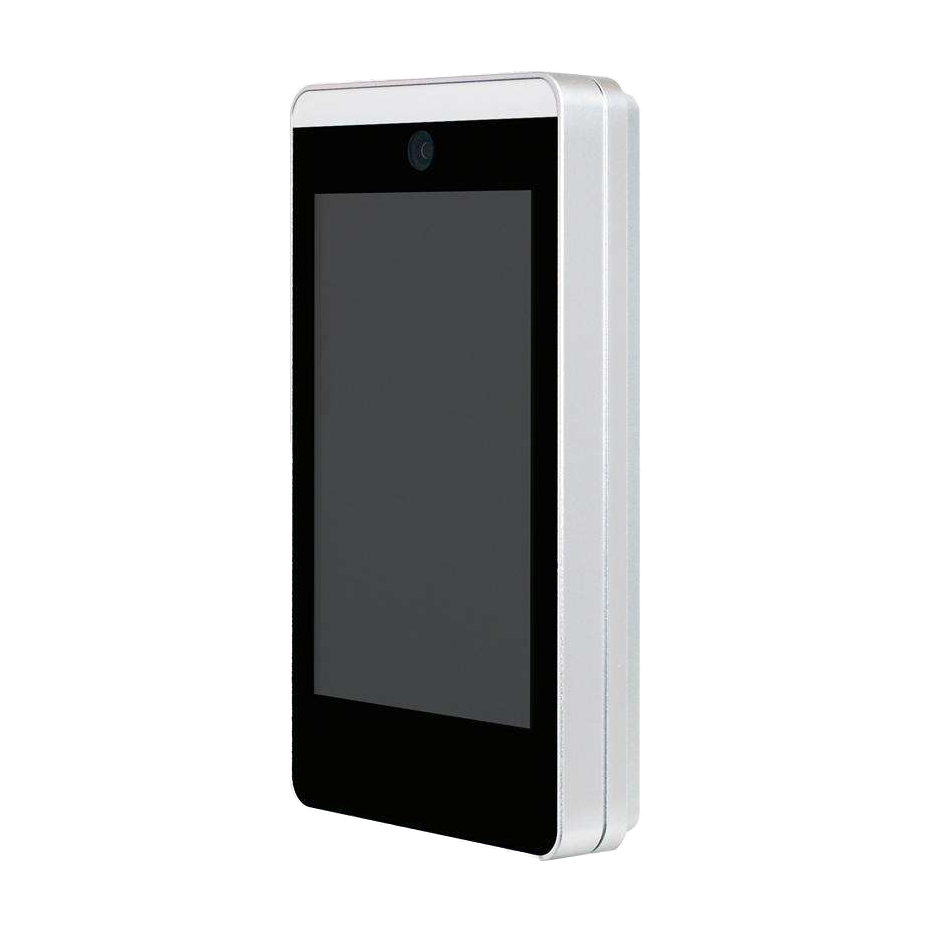

Panel 7' FRG1-3288 (ARM Cortex A17 RK3288)

Display

Display Type

– 7″ With LED Backlight

Brightness

– 400 cd/m²

Display Color

– 16.7M

Resolution

– 800 x 1280 @ 60Hz

Viewing Angle (H/V)

– 170°/170°

Pixel Pitch

– 0.039 x 0.118 mm

Aspect Ratio

– 10:16

Contrast Ratio

– 800:1

Response Time

– 20 ms

 Screen

Type

– Glass

 CASE

Panel Material

– Aluminum

Case Material

-Aluminum

Color

– Silver

Coating Requirement

– Oxidation treatment

 Main System

CPU

– Rockchip® ARM Cortex A17 RK3288 Quad Cores 1.8GHz

RAM

– 2G 1333MHz DDR3L DRAM Max 4GB

Flash ROM

– 8GB Max 64GB

Storage

– 1* Micro SD Card Socket (INT)

Watchdog Timer

– 256 levels, 0~255 sec.

Fill Light

– 1 (Life time: > 30,000 Hours)

Camera

– 200W Full HD

OS Support

– Android 5.1

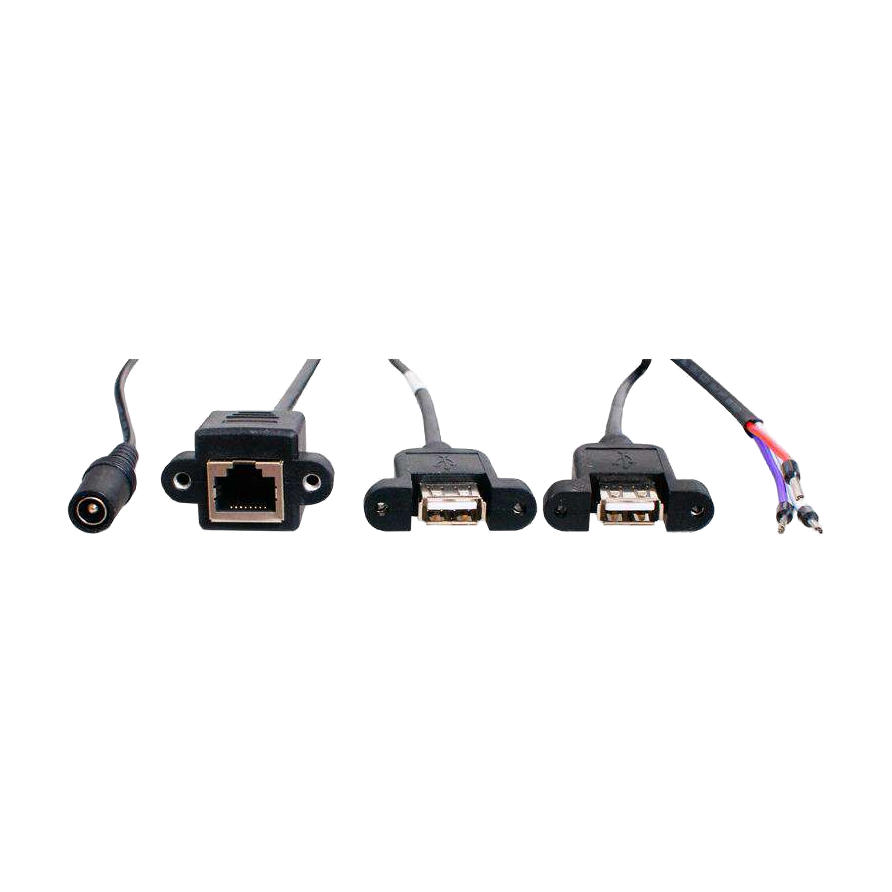

 I/O Connector

Cable

– 1* USB2.0
– 1* OTG
– 1* RJ45(10/100/1000Mbps Ethernet)
– 1* DC Jack
– 1* Switch Control (3Pin Cable)

 Power

Power Input

– AC version: 100 ~ 240V AC-DC 60W power adapter or
– DC version: 12VDC with over current protection fuse

Power Consumption

– 11.5W

 Dimension

Case Dimensions

– 221.0 * 120.0 * 36.0 mm

 Certifications

Certifications

– RoHS

 Environment

Temperature

– Operating Temperature: 0 ~ 60° C
– Storage Temperature: -20 ~ 85° C

Shock

– Operating: 15G，11ms duration

Vibration

– Operating: 5~500Hz/1 Grms

 Warranty

Warranty

– 1 Year Limited Warranty
