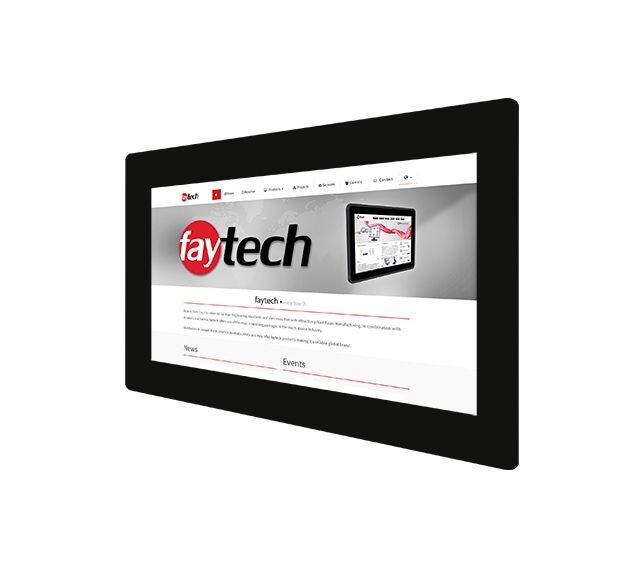

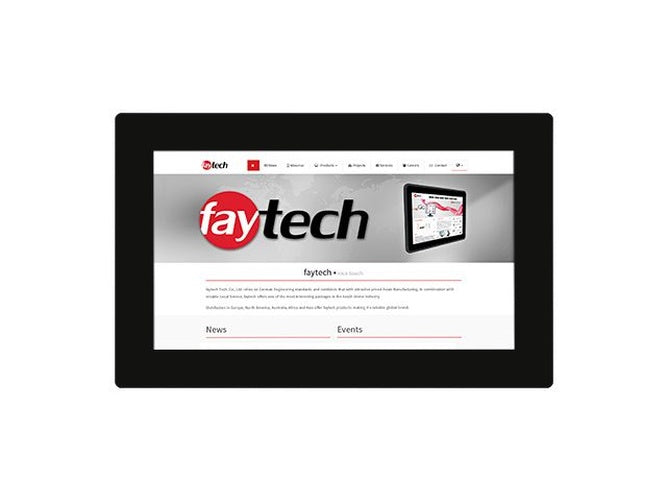

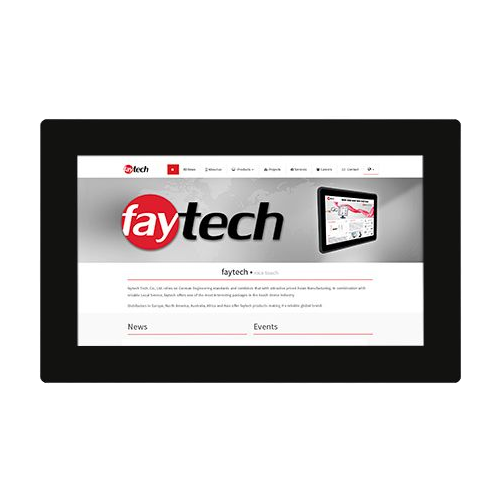

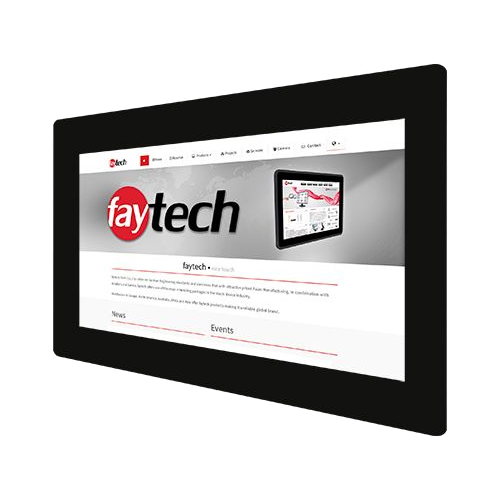

| Product name | 11.6'' Open Frame Capacitive Touch Monitor |
| Article code / EAN number | FT116TMCAPOFHBOB / 6920734011605 |
| IP65 Front / IP40 Back |
| Screen diagonal (Inch/cm) | 11.6/29.46 |
| Display active screen size (cm) | 25.63×14.42 |
| Aspect ratio | 16:9 |
| Physical resolution | 1920×1080 |
| Maximum showable resolution | 1920×1200 |
| Colours displayed | 16.7M |
| Brightness (cd/m²) | 1000 |
| Contrast | 800:1 |
| Typical reaction time Tr/ Tf (ms) | 14/11 |
| Visual Angle horizontal/vertical (°) | 178/178 |
| Backlight / Backlight Lifetime (hours) | LED / 100,000 |
| Touch Technology | Projected Capacitive 10-point Multitouch Optically Bonded |
| Touch Panel Drivers | Windows; Linux; Mac; Android |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Surface Treatment | Anti-glare (chemical etched) |
| Operating Temperature (°C) | -10 ~ +60 |
| Humidity Range (RH) | 10% - 90% |
| Net weight (kg) | 2.00 |
| Gross weight (kg) | 3.00 (incl. cartonage) |
| Housing material (open frame) | Aluminum |
| Housing (mm) L × W × H | 297.0 × 194.0 × 39.1 |
| Cut-out required (mm) L × H | 283.0 × 180.0 |
| Amount of clamps required | 4 |
| (optional) Tape length required (mm) | 946.0 (2× 293.0 + 2× 180.0) |
| (optional) Amount of glue required (ml) | 4.73 |
| Mounting | VESA 100 |
| Power Supply | 100-240V ACDC active switching; 12V DC-Out |
| Working Power (V) | 12 |
| Power Consumption (W) | 12 |
| Stand-By Consumption (W) | <1 |

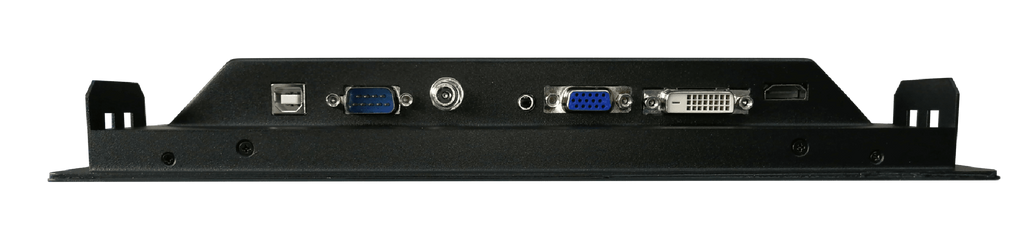

| Video | 1x VGA |
| 1x DVI-D | |
| 1x HDMI 1.3 (incl. HDCP) | |
| Audio | 1x PC-Audio |
| Touch Connector | 1x USB |
| Connectors | 1x Serial |
| 1x 12V DC-In |
| Power Supply (see Power section) |
| Short Installation Manual |
| HDMI Cable |
| USB Cable |
