| Product name | 12.1" Capacitive Touch PC |
| Article code / EAN number | FT121N42004G128CAPOB / 6920734012602 |
| CPU | Intel® Pentium® QuadCore N4200 |
| Graphic GPU | Intel® HD Graphics |
| Audio | Realtek ALC3236 Audio CODEC |
| Memory | 4GB DDR3L non-ECC (max. 8GB) |
| Storage | faytech Industrial 128GB SSD |
| Network | 2x Realtek PCIe GB LAN 8111G (1x optional with POE); W-LAN |
| Driver Support | Win10; Linux; 32Bit/64Bit |
| Pre-installed OS | Linux Ubuntu |
| IP65 Front / IP40 Back |
| Screen diagonal (Inch/cm) | 12.1/38.10 |
| Display active screen size (cm) | 24.60×18.40 |
| Aspect ratio | 4:3 |
| Physical resolution | 1024×768 |
| External maximum showable resolution - DP | 1920×1200 |
| Colours displayed | 16.7M |
| Brightness (cd/m²) | 500 |
| Contrast | 700:1 |
| Typical reaction time Tr/ Tf (ms) | 25/10 |
| Visual Angle horizontal/vertical (°) | 160/160 |
| Backlight / Backlight Lifetime (hours) | LED / 30,000 |
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Connector | USB |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Surface Treatment | Anti-glare (chemical etched) |
| Operating Temperature (°C) | -10 ~ +60 |
| Humidity Range (RH) | 10% - 90% |
| Net weight (kg) | 2.80 |
| Gross weight (kg) | 4.30 (incl. cartonage) |
| Housing material | Rubber front case, Aluminum IPC back case |
| Housing (mm) L × W × H | 301.0 × 246.0 × 58.5 |
| Cut-out for clamp supports (mm) L × H | 277.0 × 222.0 |
| Amount of clamps required | 6 |
| Mounting | VESA 100 |
| Power Indicator | Green LED |
| Power Supply | 100-240V ACDC active switching; 12V DC-Out |
| Working Power (V) | 12 |
| Power Consumption (W) | 15 |
| Stand-By Consumption (W) | <1 |
| 1x SO-DIMM, max. 8GB, DDR3L 1333/1600/1867 non-ECC Single channel memory |
| 3x RS232/RS485 COM connectors switchable in BIOS |
| 2x LCD Backlight control/LCD panel voltage box |
| 1x 5V/12V SATA power connector |
| 1x 12V DC power connector (2-pin) |
| 1x 4-pin SATA power connector |
| 1x S/PDIF output pin header |
| 1x 8-bit Digital I/O interface |
| 1x Line-out / Mic-in header |
| 1x Front Panel box header |
| 1x Serial ATA 6Gb/s |
| 1x MIPI CSI connector |
| 1x LVDS box header |
| 2x USB 3.0 box header |

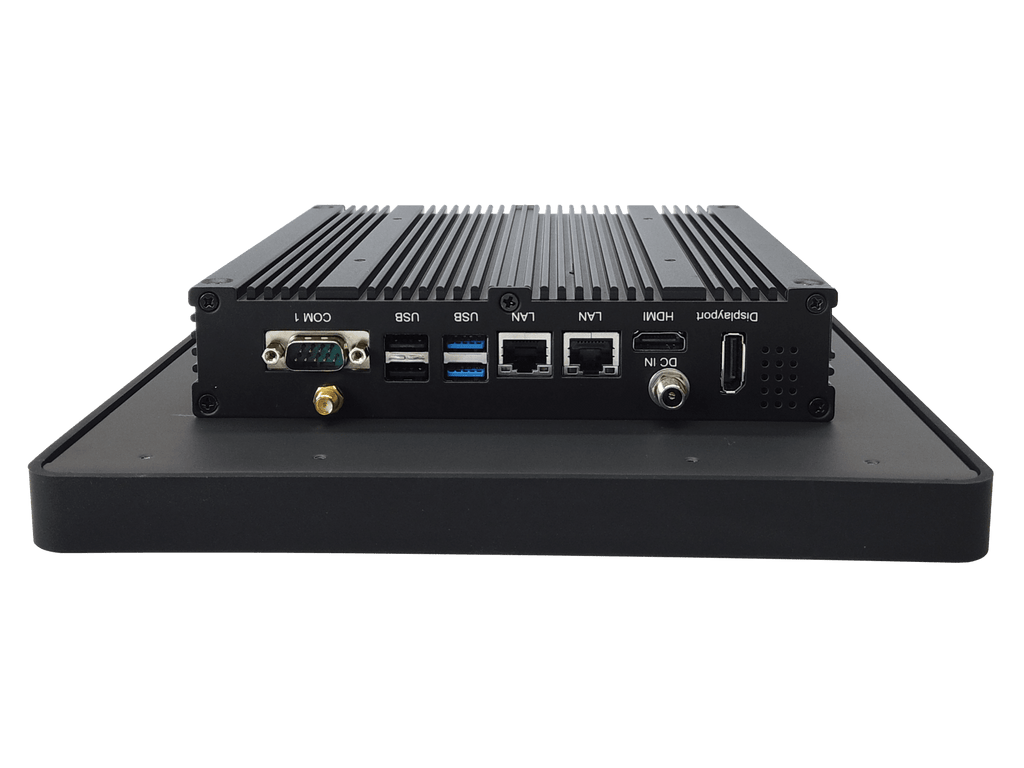

| 1x 12V DC-In (screwable) |
| 1x HDMI |
| 1x DisplayPort |
| 2x USB 3.0 ports |
| 2x USB 2.0 ports |
| 1x MIC-In & EAR-Out |
| 8x In/Out GPIO as RJ45 |
| 1x W-LAN antenna connector (RP-SMA male) |
| 2x COM port Full-PIN - RS232/485; 5V/12V |
| 2x COM port 3-PIN - RX, TX, GND; RS232/485; 5V/12V |
| 2x 10/100/1000Mbit RJ45 Ports |
| 1x S/PDIF-Out (1x Cinch, 1x Torx module) |
| 1x 2.5" module slot, changeable SSD included |
| 1x mSATA full size (occupied by SSD) |
| 1x M.2 E-Key Slot (occupied by Wifi card) |
| 1x SATA connector |
| 1x External PCIe x1 Straddle connector |
| Power Supply (see Power section) |
| W-LAN Antenna (RP-SMA female) |
| Short Installation Manual |
| Standard Stand |
