Sku: FT121TMCAPOB
Tipo de Produto:
Monitores Touch Capacitivo
Fabricante:
Faytech
FT121TMCAPOB

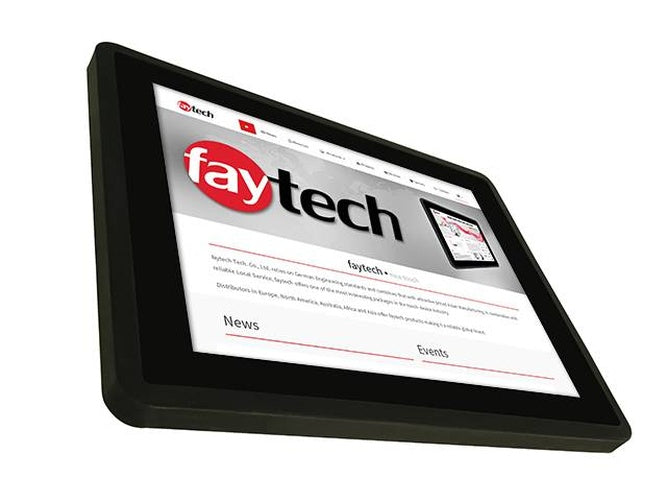

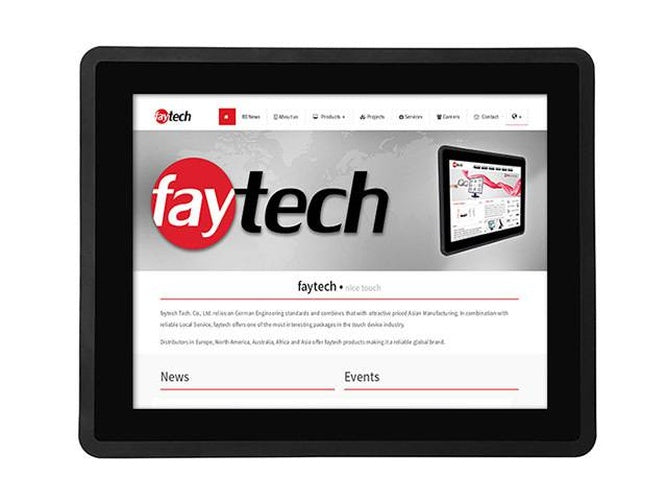

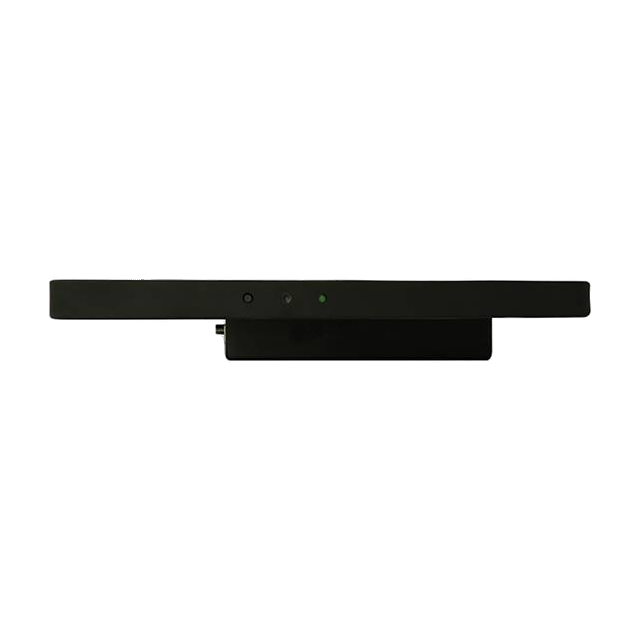

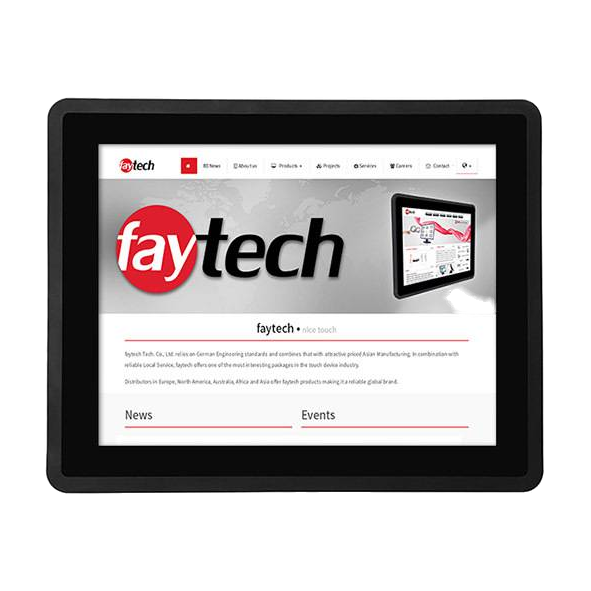

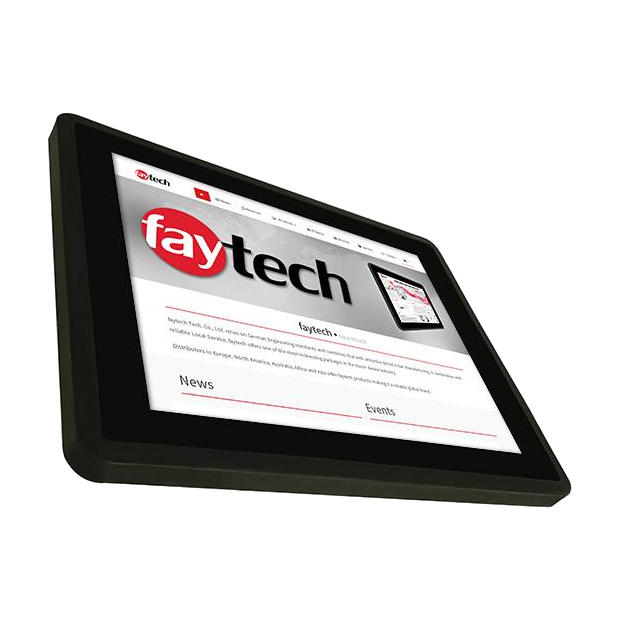

Monitor 12.1' Capacitive Touch Optically bonded
- Tratamento de superfície anti-reflexo (gravado quimicamente).
- Painel Multi Touch capacitivo de 10 pontos.
- Vidro frontal de 1.1mm com dureza de superfície 7H.
- Parte frontal com IP65 patenteado com selo de silicone.
- Touchscreen opticamente ligado ao LCD.
- Áudio integrado (2x2w).
- Garantia de 2 anos.
Caraterísticas
Especificações
Downloads
Opcionais
Caraterísticas
IP Rating
Protection
IP65 Front/ IP40 Back
LCD Panel
Display Size
12,1"
Display Format
4:3
Physical Resolution
1024x768
Optical Bonding
Air Gap
Coverglass
2,8mm
Operation / Mechanical
Housing
Rubber Frame
Backlight Type
Edge Backlight
Touch Panel
Touch Technology
capacative
Coverglass Surface
Power
Power Supply
12V
External connections
HDMI
1
VGA
1
DP
0
USB 2.0
0
USB 3.0
0
Especificações
| Product name | 12.1" Capacitive Touch Monitor |
| Model number / EAN number | FT121TMCAPOB / 6920734012107 |
| IP65 Front/ IP40 Back |
| Screen diagonal (Inch/cm) | 12.1/30.73 |
| Display active screen size (cm) | 24.60×18.40 |
| Aspect ratio | 4:3 |
| Physical resolution | 1024×768 |
| Maximum showable resolution | 1920×1080 |
| Colours displayed | 16.7M |
| Brightness (cd/m²) | 500 |
| Contrast | 700:1 |
| Typical reaction time Tr/ Tf (ms) | 25/10 |
| Visual Angle horizontal/vertical (°) | 160/160 |
| Backlight / Backlight Lifetime (hours) | LED / 50,000 |
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Panel Drivers | Windows; Linux; Mac; Android |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Surface Treatment | Anti-glare (chemical etching) |
| Glass Strengthening | Chemically Strengthened |
| Operating Temperature (°C) | -10 ~ +60 |
| Humidity Range (RH) | 10% - 90% |
| Net weight (kg) | 1.20 |
| Gross weight (kg) | 2.20 (incl. cartonage) |
| Housing material | Rubber front case, Plastic back case |
| Housing (mm) L × W × H | 301.0 × 246.0 × 42.5 |
| Cut-out for clamp supports (mm) L × H | 277.0 × 222.0 |
| Max. wall thickness for clamp supports (mm) | 5.0 |
| Amount of clamps required | 6 |
| Mounting | VESA 100 |
| Power Indicator | Green LED |
| Power Supply | 100-240V ACDC active switching; 12V DC-Out |
| Working Power (V) | 12 |
| Power Consumption (W) | 12 |
| Stand-By Consumption (W) | <1 |

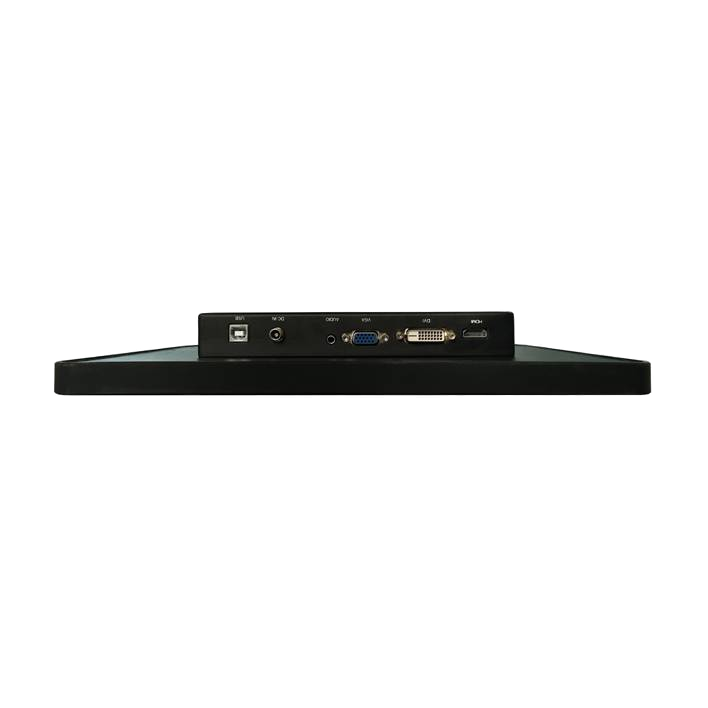

| Video | 1x HDMI 1.3 (incl. HDCP) |
| 1x DVI-D | |
| 1x VGA | |
| Audio | 1x PC-Audio |
| Touch Connector | 1x USB |
| Connectors | 1x 12V DC-In (screwable) |
| Power Supply (see Power section) |
| Short Installation Manual |
| Cables - VGA, USB Touch, Audio Cable |
| Standard Stand |
