Sku: FT156V40CAPOB
Tipo de Produto:
Panel-PC Embedded
Fabricante:
Faytech
FT156V40CAPOB
- CPU Allwinner V40 Cortex® A7 QuadCore 1GHz
- 2GB memória RAM; 8GB EMMC FLASH
- Android 6.0 pré-instalado
- Vidro frontal de 1.1mm com dureza de 7H
- Tratamento de superfície anti-reflexo
- Touchscreen ligado opticamente ao LCD
- Touchscreen capacitivo de 10 pontos multi-toque
- Painel frontal com IP65 patenteada com selo de silicone
- W-LAN integrada
- 2 anos de garantia
Caraterísticas
Especificações
Downloads
Opcionais
Caraterísticas
IP Rating
Protection
IP65 Front/ IP40 Back
PC System
CPU
Arm V40
RAM
2GB
Operating System
Android
LCD Panel
Display Size
15,6"
Display Format
16:9
Physical Resolution
1920x1080
Brightness
300 cd/m²
Optical Bonding
Optical Bonding
Operation / Mechanical
Housing
Rubber Frame
Backlight Type
Edge Backlight
Touch Panel
Touch Technology
capacative
Power
Power Supply
8-18V
External connections
HDMI
1
VGA
0
DP
0
USB 2.0
2
USB 3.0
0
Especificações

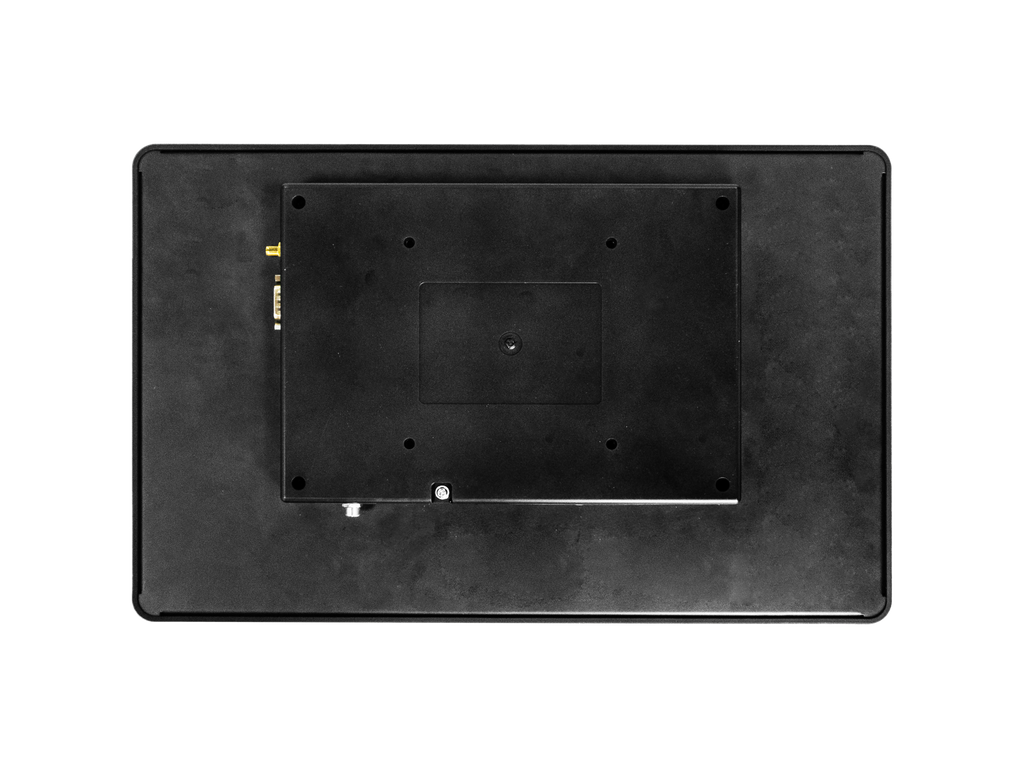

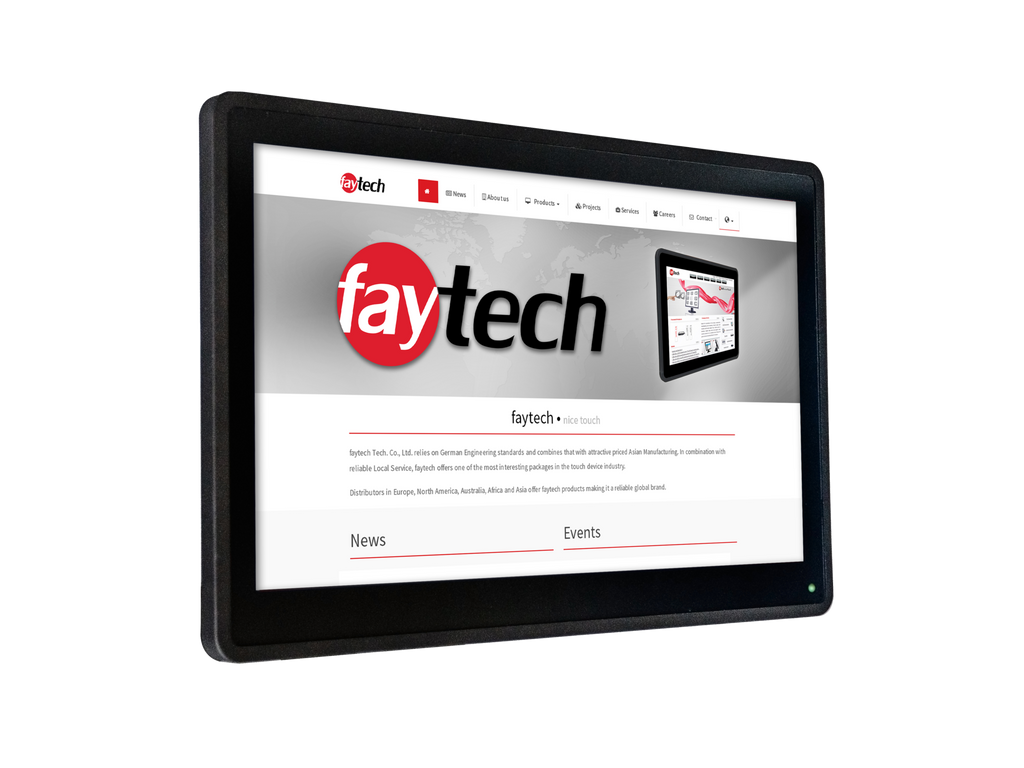

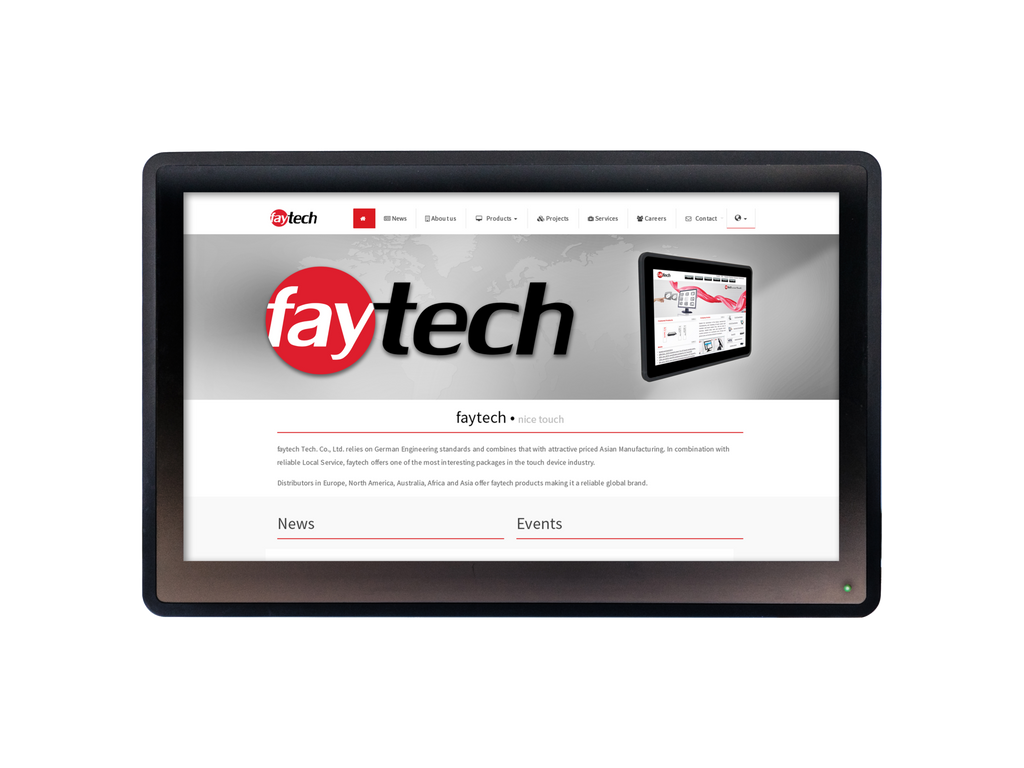

| Product name | 15.6" Capacitive Embedded Touch PC (ARM V40) |
| Article code / EAN number | FT156V40CAPOB / 6920734016808 |
| CPU | Allwinner® V40 QuadCore |
| Chipset | Cortex™ A7 |
| Graphic GPU | ARM® Mali400 Mp2 Complies with OpenGL ES 2.0/1.1 |
| Audio | Integrated HI-FI 100dB Audio Codec Dual analog mic, 2x6W amplifier |
| Memory | 2GB DDR3 |
| Storage | 8GB EMMC Flash |
| Network | 10/100Mbits Network; W-LAN |
| OS | Android 6 |
| IP65 Front / IP40 Back |
| Screen diagonal (Inch/cm) | 15.6/39.6 |
| Display active screen size (cm) | 34.42×19.36 |
| Aspect ratio | 16:9 |
| Physical resolution | 1920×1080 |
| External maximum showable resolution - HDMI | 1920×1080 |
| Colours displayed | 262K |
| Brightness (cd/m²) | 250 |
| Contrast | 800:1 |
| Typical reaction time Tr/ Tf (ms) | 15/15 |
| Visual Angle horizontal/vertical (°) | 170/170 |
| Backlight / Backlight Lifetime (hours) | LED / min. 15,000 |
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Connector | USB |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Surface Treatment | Anti-glare (chemical etching) |
| Glass Strengthening | Chemically Strengthened |
| Operating Temperature (°C) | -10 ~ +60 |
| Humidity Range (RH) | 10% - 90% |
| Net weight (kg) | 3.40 |
| Gross weight (kg) | 5.30 (incl. cartonage) |
| Housing material | Rubber front case, Plastic back case |
| Housing (mm) L × W × H | 389.3 × 246.8 × 33.3 |
| Cut-out for clamp supports (mm) L × H | 371.0 × 218.0 |
| Max. wall thickness for clamp supports (mm) | 5.0 |
| Amount of clamps required | 4 |
| Mounting | VESA 100 |
| Power Indicator | Green LED |
| Power Supply | 100-240V ACDC active switching; 12V DC-Out |
| Working Power (V) | 8~18 |
| Power Consumption (W) | 13 |
| Stand-By Consumption (W) | <1 |
| 1x SD-card |
| 1x SIM-card |
| 2x Serial |
| 4x TTL UART |
| 2x USB 2.0 |
| 18/24Bit LVDS |
| 6x GPIO |
| 1x SATA-Port |
| 1x Line-In |
| 1x Line-Out |
| 1x RTC |
| 1x CAN Bus |
| 1x Amplifier for 2x 6W loudspeaker |
| 1x 8-18V DC-In (screwable) |
| 1x 10/100Mbits RJ45 port |
| 1x W-LAN antenna connector (RP-SMA male) |
| 1x RJ10 (4P4C) |
| 2x USB 2.0 |
| 1x USB OTG |
| 2x USB 2.0 |
| 1x Audio-In |
| 1x Audio-Out |
| 1x HDMI |
| 1x Serial |
| 1x SIM-card slot |
| 1x SD-card slot |
| 1x MiniPCIe |
| Power Supply (see Power section) |
| W-LAN Antenna (RP-SMA female) |
| Short Installation Manual |
| Standard Stand |
