com IVA
945.56€

sem IVA
768.75€
Sku: FT156V40MIRROR
Tipo de Produto: Quiosques
Fabricante: Faytech

ENVIOS RÁPIDOS

SUPORTE 24/7

PAGAMENTO ONLINE

FT156V40MIRROR

  • CPU Allwinner V40 Cortex® A7 QuadCore 1GHz.
  • 1 GB DDR3 RAM; 8 GB EMMC FLASH.
  • Android 6.0.
  • Resolução Full HD - 1920x 1080.
  • Bluetooth 4.0 e Wifi.
  • Painel espelhado com touchscreen ligado opticamente LCD.
  • Painel touch capacitivo de 10 pontos e multi-toque.
  • Proteção IP65.
  • Software de controle de brilho e faixa de LED.
  • 2 anos de garantia.
Android mirror specs
Caraterísticas
IP Rating
Protection
IP65 Front/ IP65 Back
PC System
CPU
Arm V40
RAM
1GB
Memory
8GB Flash
Operating System
Android
Bluetooth
No
LCD Panel
Display Size
15,6"
Display Format
16:9
Physical Resolution
1920x1080
Operation / Mechanical
Backlight Type

Touch Panel
Touch Technology
capacative
Coverglass Surface

Power
Power Supply
8-18V
External connections
HDMI

VGA

DP

USB 2.0

USB 3.0
Especificações

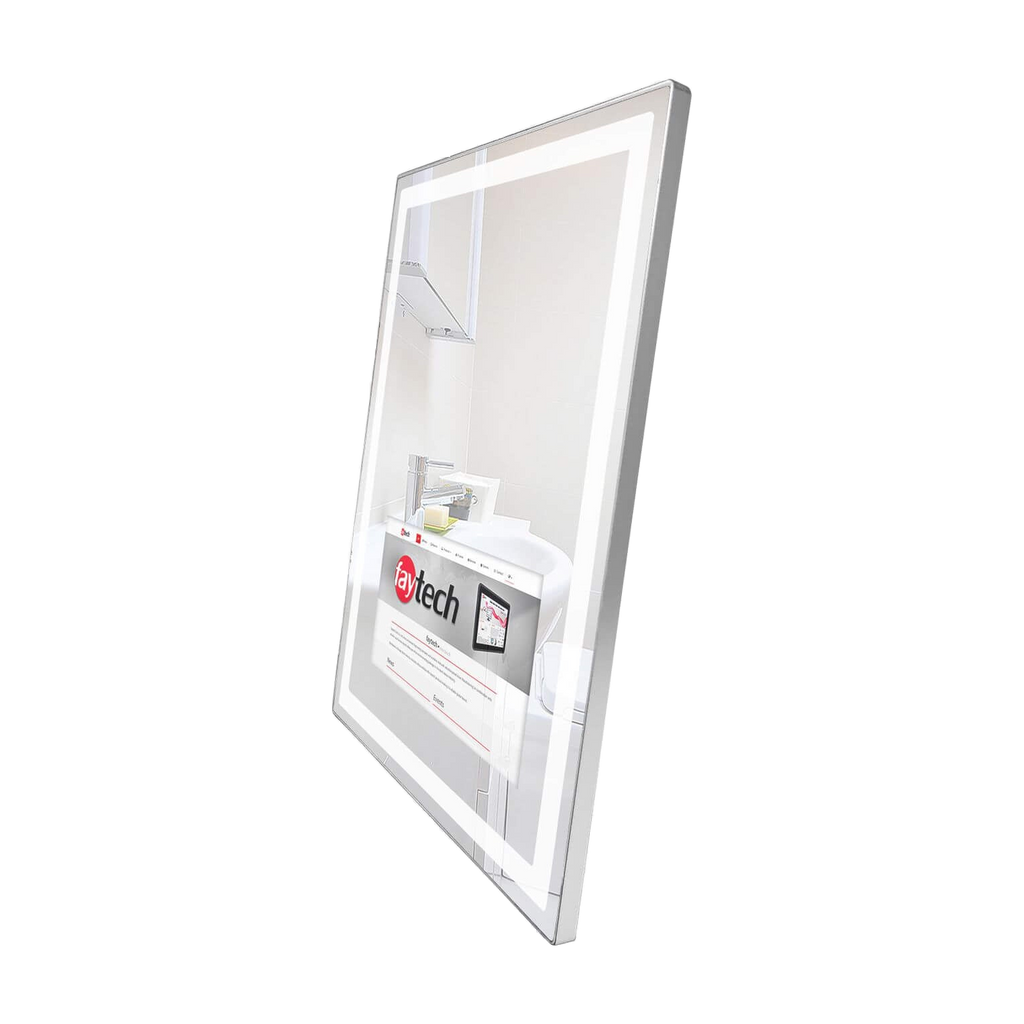

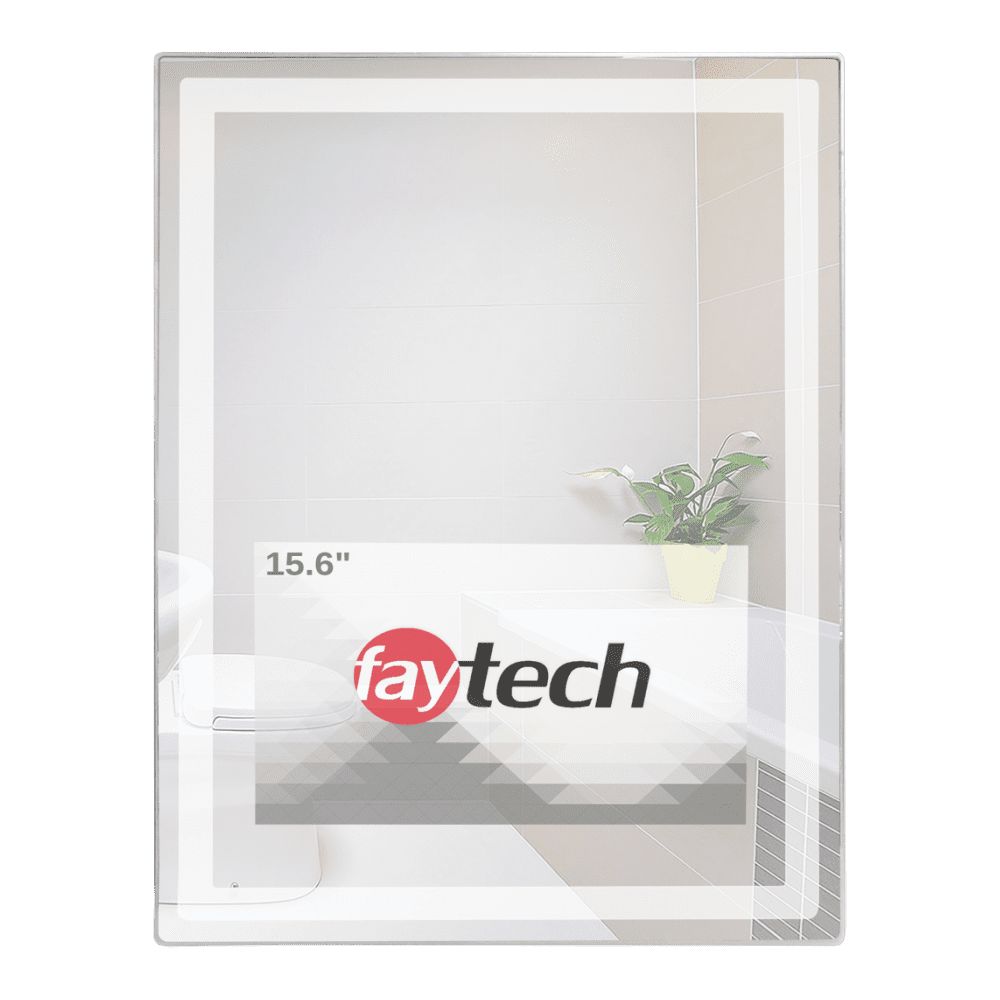

Product name  15.6" Capacitive Interactive Mirror
Model number / EAN number FT156V40MIRROR



CPU Allwinner® V40 QuadCore
Chipset Cortex A7
Graphic GPU ARM® Mali400 Mp2 Complies with OpenGL ES 2.0/1.1
Audio Integrated HI-FI 100dB Audio Codec Dual analog mic, 2x6W amplifier
Memory 1x 1GB DDR3
Storage 8GB EMMC Flash
Network 10/100Mbits Network; W-LAN
OS Android 6.0 / 4.4



IP rating IP65
Screen diagonal (Inch/cm) 15.6/39.6
Display active screen size (cm) 34.42×19.36
Aspect ratio 16:9
Physical resolution 1920×1080
Maximum showable resolution 1920×1080
Colours displayed 262K
Brightness (cd/m²) 1000
Contrast 800:1
Typical reaction time Tr/ Tf (ms) 15/15
Visual Angle horizontal/vertical (°) 170/170
Backlight / Backlight Lifetime (hours) LED / 30,000



Touch Technology Projected Capacitive 10-point Multitouch with Mirror Effect
Touch Connector USB
Touch Life (Contacts) Unlimited
Surface Hardness 7H



Operating Temperature (°C) -10 ~ +60
Humidity Range (RH) 10% - 90%
Net weight (kg) 5.65
Gross weight (kg) 8.00 (incl. cartonage)
Housing material Mirrored Front, Aluminum Housing
Housing (cm) L × W × H 66.00 × 50.50 × 1.85

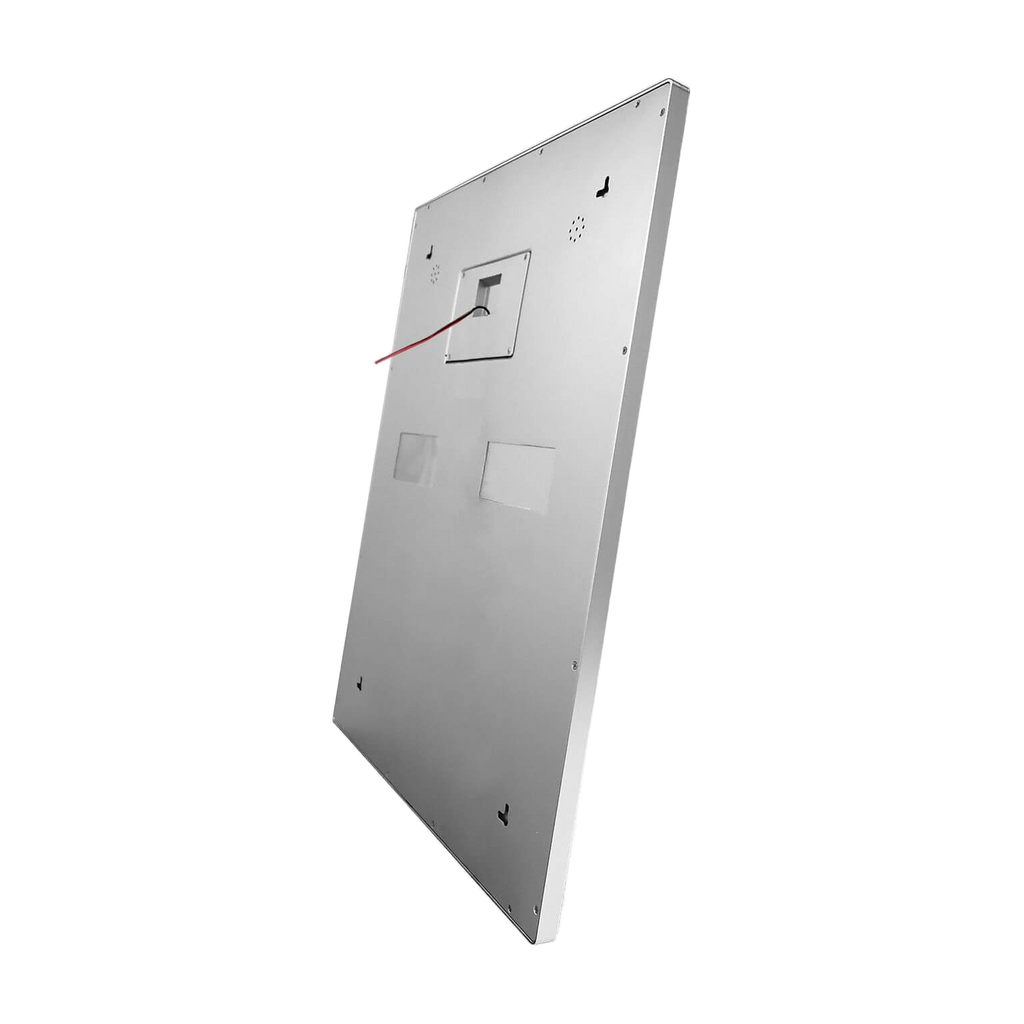

Mounting (cm) Screwhead Holes (36 × 52)

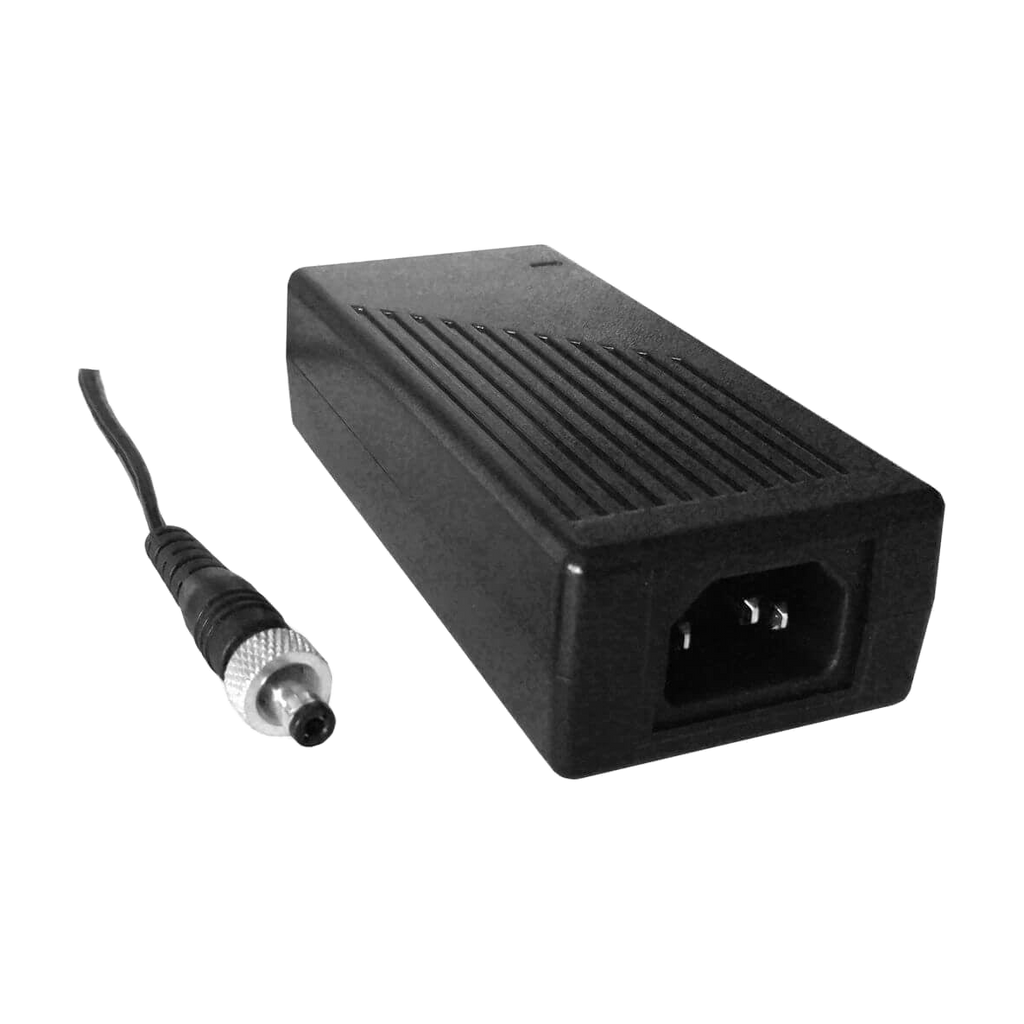

Power Supply 100-240V ACDC active switching; 12V DC-Out
Working Power (V) 8~18
Power Consumption (W) 20
Stand-By Consumption (W) <1



1x 8-18V DC-In (screwable)



Power Supply (see Power section)
Short Installation Manual
